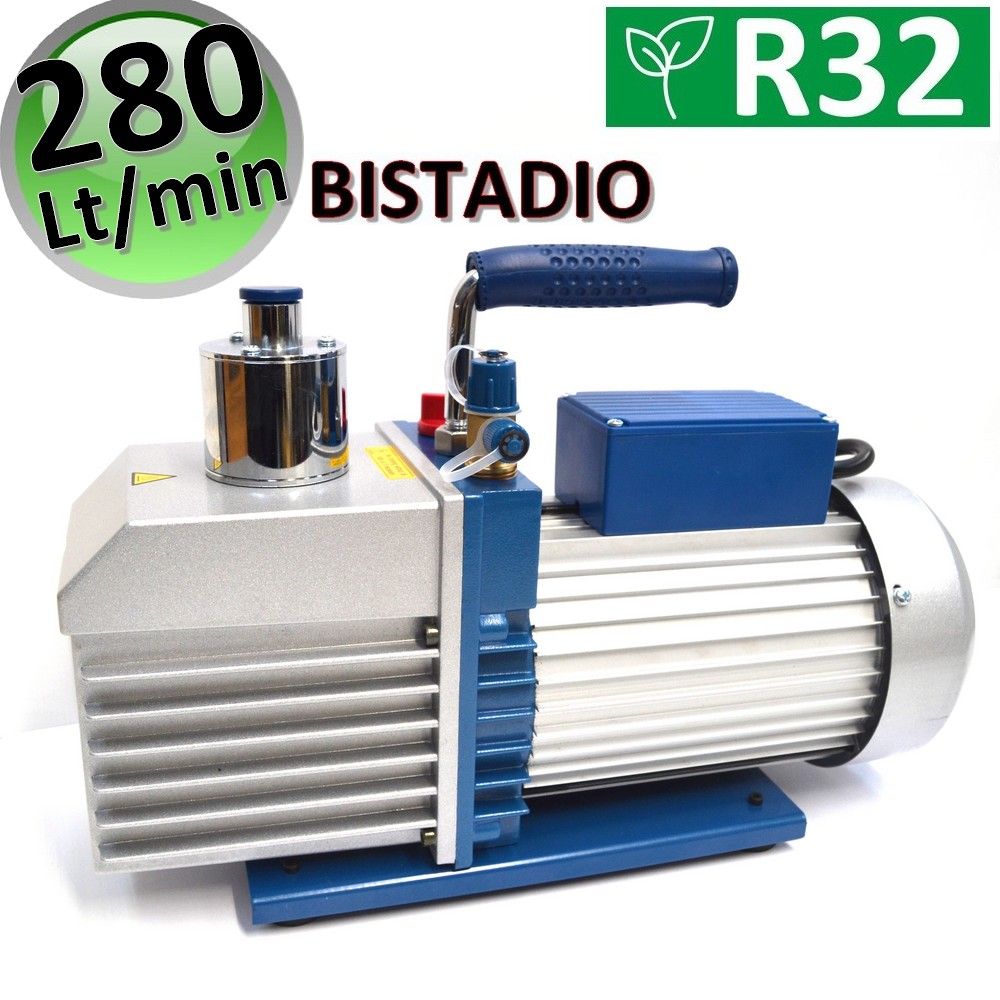

Two-stage vacuum pump 280 L/min for R32 R1234YF gas systems - VE2100

VACUUM PUMP

two-stage 280 Lt/min - 10.0 CFM for R32 R1234YF GAS
for emptying according to DIN 8975

CHARACTERISTICS:

INSTRUCTIONS IN ITALIAN

TWO-STAGE MODEL WITH 280 LITRES PER MINUTE - SPECIFIC FOR R32 AND R1234YF GASES for emptying according to DIN 8975

THIS PUMP MODEL IS MADE WITH A SPECIAL FIREPROOF INSULATION ON THE ELECTRICAL COMPONENTS, THIS GIVES IT THE POSSIBILITY OF BEING CERTIFIED AGAINST POSSIBLE EXPLOSIONS OR DEFLAGATIONS CAUSED BY THE FLAMMABILITY OF THE 2 GASES R32 AND R1234YF

THE PUMP CAN OF COURSE ALSO BE USED ON SYSTEMS WITH OTHER REFRIGERANT GASES SUCH AS: R410A / R407C / R404A / R22 ....

EQUIPPED WITH ON-OFF SWITCH

OIL LEVEL INDICATOR

2 BOTTLES OF OIL INCLUDED

POWER CORD WITH SHUKO PLUG

ERGONOMIC CARRYING HANDLE

TECHNICAL DATA:

• TWO-STAGE MODEL
• SUCTION CAPACITY IN LITERS PER MINUTE 280
• ENGINE POWER 1 HP
• POWER SUPPLY 220 V - 50Hz
• FINAL VACUUM 3x10-1 Pa - 0.003 mbar
• OIL IN THE PUMP 520 ML.
• DIMENSIONS 395X135X280 (mm)
• WEIGHT 16.50 KG
• DOUBLE OUTPUT CONNECTION: 1/4' and 3/8' SAE
• CE CERTIFIED

Product Code: VE2100
