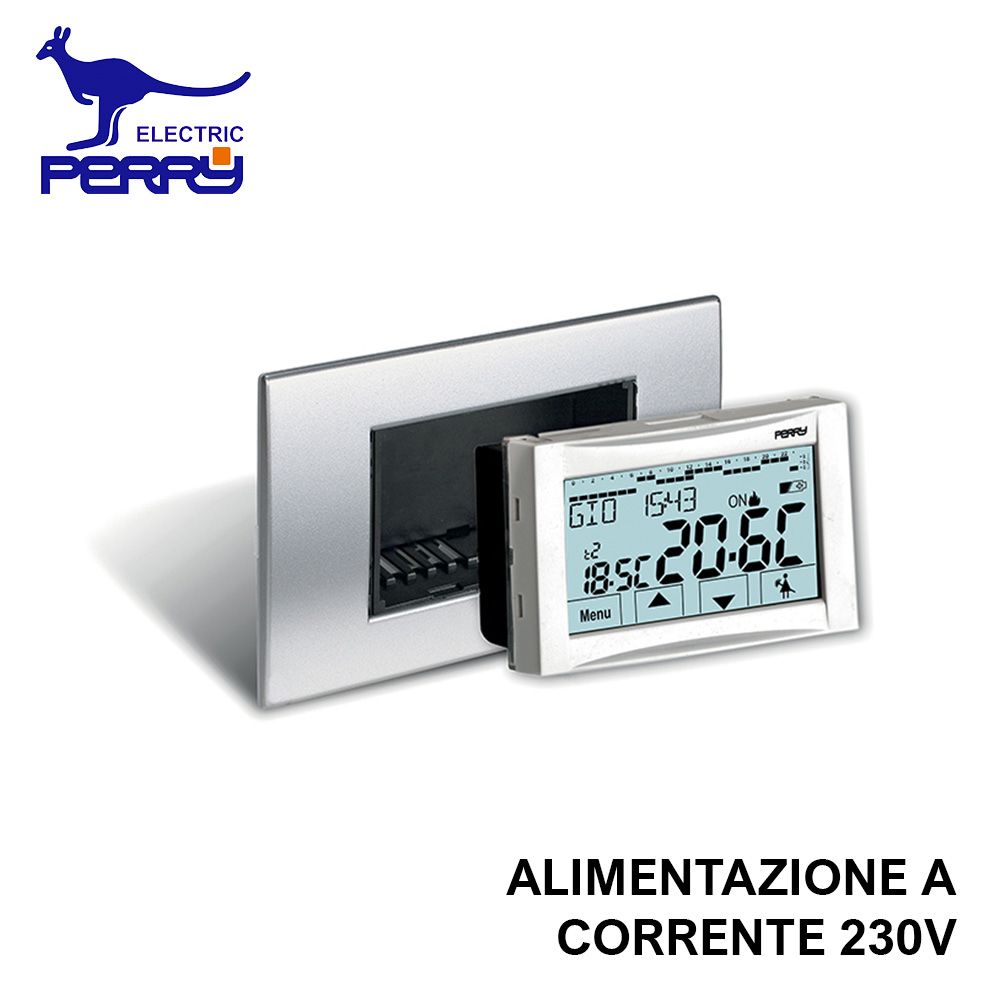

Perry 1CRCDS27 - Moon Soft 230V Built-in Touch Screen Digital Chronothermostat

PERRY 1CRCDS27 Moon Soft series digital built-in chronothermostat TOUCH SCREEN - 230v power supply

plate not included

CHARACTERISTICS:

• Multilingual menu
• Power supply 230V AC 50-60 Hz
• TOUCH SCREEN backlit LCD display
• Equipped with three front panels included in the package: anthracite, white, silver
• User and installer password
• Anti-scale cycle: with the "pump activation" function, the chronothermostat automatically starts the pump or valve for two minutes every day, even during periods of inactivity, to prevent scaling and seizures that may occur following prolonged inactivity. This eliminates any risk when the system is reactivated.
• Eco operation: the chronothermostat anticipates the switch-off by exploiting the thermal inertia of the system, allowing for significant energy savings
• Cleaning pause button: allows you to stop the system for a pre-set time. Simply press the button with the "cleaning pause" symbol and the two-hour segments from the current hour disappear from the screen: the system is off.
• Temperature set block: for systems intended for second homes, public spaces, hotels, offices, as well as domestic environments, where it is necessary to set the minimum and maximum temperatures for the thermoregulation of the rooms to avoid heat theft (minimum temperature) and/or heat waste (maximum temperature)
• Holiday program: for those who are away from home for several days, the “Countdown” or “Weekend” functions are provided which suspend the operation of the chronothermostat for a pre-established period of time, maintaining the temperature at an anti-freeze level

Multilingual menu
Power supply 230V AC 50-60 Hz
TOUCH SCREEN backlit LCD display
Output 1 potential-free changeover contact: 5(3)A/250V AC.
ON/OFF operation with adjustable differential from 0.2 – 1.2°C or modulating with control period from 7-20 min
4 editable preset programs
Temperature levels 3 + antifreeze
Autonomous manual temperature control
Adjustable temperature in 0.1°C increments
Minimum programming 30 minutes
Permanent / temporary manual operation
Automatic daylight saving time change
Cleaning pause button
Telephone or remote control input
EST/INV command
Holiday Program
Pump activation program
Temperature set block
User password
Installer password
Timed backlight
Relay status indication
Correction t detection in function
product positioning
Flush mounting
Adjustment range 5 - 37.7°C
Dimensions (WxDxH) 65 x 53 x 47 mm

COMPATIBILITY OF SUPPLIED FRONT PANELS

ABB Chiara

BTICINO
Light, LivingLight White, Light Tech, LivingLight Tech, Living, Living Light Anthracite,
Matix, Axolute Tech, Axolute Anthracite, Axolute Bianca

VIMAR
Plana, Plana Silver, Eikon Grey, Eikon Next, Eikon White, Arké White, Arké Black

GEWISS
Chorus ONE/LUX/FLAT/GEO White
Chorus ONE/LUX/FLAT/GEO Black
Chorus ONE/LUX/FLAT/GEO Titanium

Product Code: 1CRCDS27
