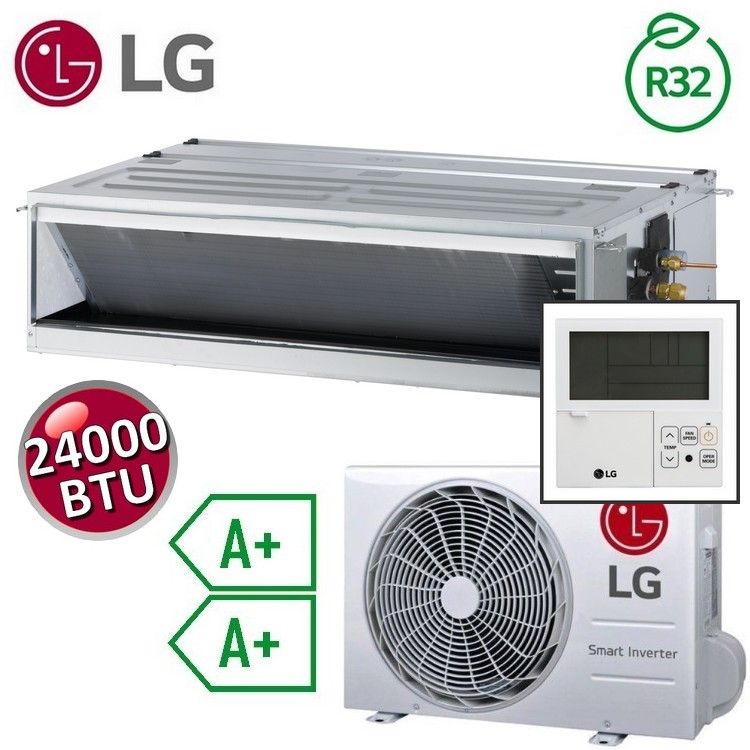

LG SINGLE DUCTED COMPACT INVERTER 24000 BTU

CM24F.N10 – UUB1.U20 - DUCTED MEDIUM HEAD - WALL CONTROL INCLUDED

Series:

COMPACT INVERTER - with R32 refrigerant gas

Indoor unit model: CM24F.N10
Outdoor unit model: UUB1.U20
Type: heat pump
Power: 24000 BTU

Energy Efficiency:

Seasonal efficiency:
-SEER: 6.8
-SCOP average climate zone: 4.1
Energy Efficiency Class (Cooling): A+
Energy Efficiency Class (Heating): A+
Seasonal energy consumption kWh/year: cooling 410 - heating 1400

Performance:

Cooling Capacity (kW) : 6.8 (2.7 / 7.5)
Heating Capacity (kW): 7.4 (3.0 / 8.5)
Air flow UI (sa.-a.-m.-b.) m³/min: 18 / 16.5 / 14.5
Sound Pressure Int. Unit (sa.-a.-m.-b.) (dB(A)) : 35 / 32
Sound Pressure External Unit Max (dB(A)) : 48 / 53
Sound power level EU (a.): 65
Cooling power consumption kW: 0.50 / 2.34 / 2.81
Heating power consumption kW: 0.40 / 2.17 / 2.82

Electrical data:

Power supply (V/Hz/?) : 230/1/50

Characteristics:

Refrigerant gas: R32 / 1200 gr. / 0.81 Tco2
Liquid / gas pipe diameter: 9.52 (3/8") / 15.88 (5/8") mm
Maximum length of pipes with additional load m 5 / 35
Maximum height difference (external unit above) 30 m

Dimensions and weight:

Internal Unit HxWxD (mm): 270x900x700; 24.6 kg
External Unit HxWxD (mm): 870x650x330; 44.5 Kg
