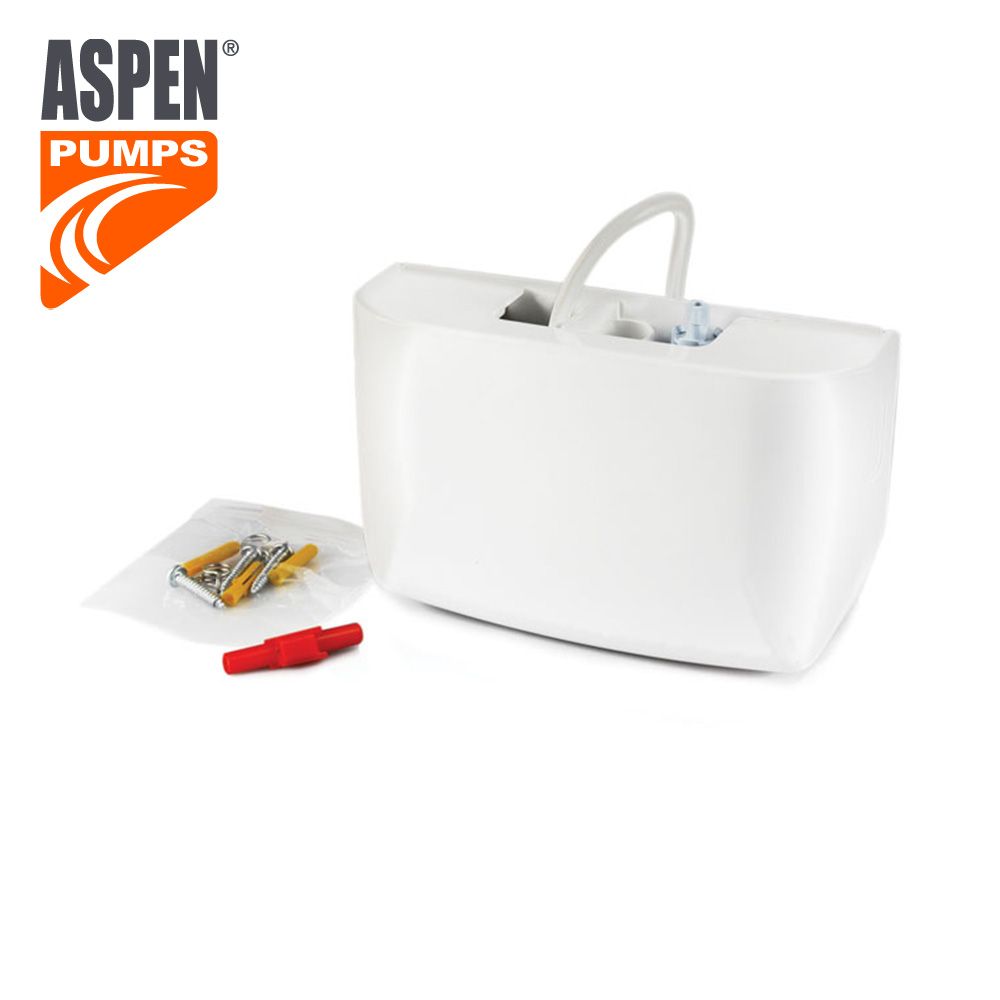

Condensation collection pump under Aspen mini blanc split

CHARACTERISTICS:

• Dimensions: 115mm x 182mm x 55mm

• Weight: 0.46 kg

• Power supply voltage: 220/240 V AC < 11W - Single phase 50/60 Hz.

• Voltage-free alarm cables - 3A - Contact available N/C 5A inductive at 220/240V AC

• Pre-wired power cord included

• Input hole: 21mm internal diam.

• Exhaust pipe: 6mm inner diameter

• Semiconductor water level sensor with Hall effect and high level safety system

• Cleanable and replaceable 70 micron internal filter (sanitizing tablet supplied)

• Max. drain water temp.: 40°C

• Overheat shutdown protection

• Internal electronics coated in resin to protect them from water infiltration

• Supplied with a template for wall mounting

• The pump can operate continuously

• Approved and CE marked

• Class 2 equipment

• Maximum recommended vertical head: 4 metres

• Water flow rate: 6 litres/hour with zero head

• Noise level: 18 dB(A) with head greater than 1 metre

Product code: FP1080/2

Hose holder outlet diameter 6 mm - use LGTU03 tube
