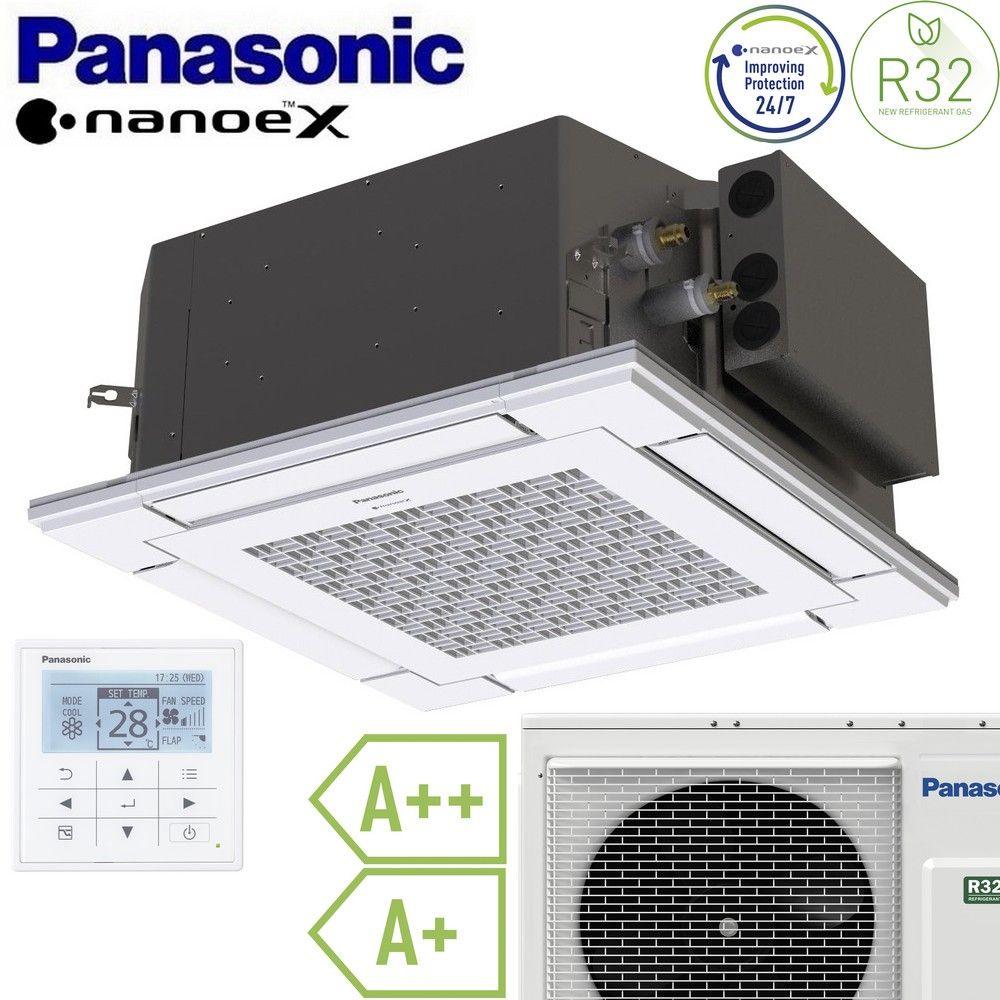

4-WAY CASSETTE 60x60 cm 12000 BTU PANASONIC

INVERTER - heat pump - CLASS A++ Panel and wall control included

Characteristics:

Panasonic 4-way 60x60 cassette indoor unit with inverter technology and nanoeX air purification system, R32 gas.

The white CZ-KPY4 panel is included in the price.

The CZ-RTC5B wall control with weekly programming is included in the price

Technical Features

Model:

• Indoor unit catalog code: S-36PY3E
• Outdoor unit catalog code: U-36PZ3E5
• Cover panel code: CZ-KPY4
• Wall control code included: CZ-RT5B
• Power (BTU): 12000

Energy Efficiency:

• SEER/SCOP (W/W): 6.7/4.3
• Energy Efficiency Class (Cooling): A++
• Energy Efficiency Class (Heating): A+
• Average annual cooling consumption kWh/a: 188
• Average annual heating consumption kWh/a: 912

Performance:

• Rated Cooling Capacity (kW): 3.6 (1.5-4.0)
• Nominal heating capacity (kW): 3.6 (1.5-4.6)
• Indoor unit sound pressure (dB-A): 34/30/25
• External unit sound pressure (dB-A): 46/47

Electrical data:

• Power supply: 230 V

Characteristics:

• Refrigerant gas: R32

Guaranteed operating range:

• Cooling C: -10 ~ +43
• Heating C: -15 ~ +24

Dimensions:

• Internal Unit HxWxD (mm): 243 x 575 x 575; 15kg
• Panel HxWxD (mm): 30 x 625 x 625; 2.8kg
• External Unit HxWxD (mm): 619 x 824 x 299; 32kg
