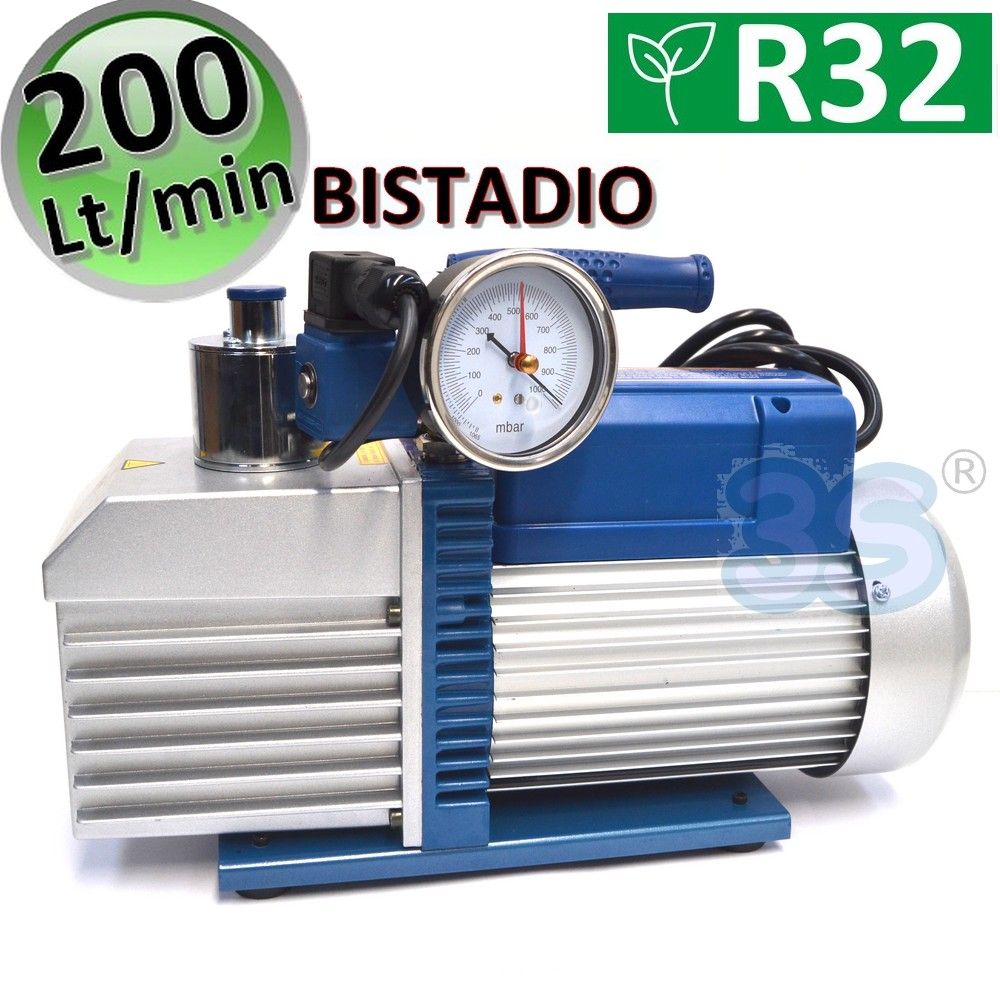

Two-stage vacuum pump with solenoid valve and vacuum gauge 200 L/min for R32 R1234YF gas systems

VACUUM PUMP with SOLENOID VALVE and VACUUM GAUGE

two-stage 200 Lt/min - 7.0 CFM for R32 R1234YF GAS
for emptying according to DIN 8975

CHARACTERISTICS:

INSTRUCTIONS IN ITALIAN

TWO-STAGE MODEL 200 LITRES PER MINUTE - SPECIFIC FOR R32 AND R1234YF GASES for emptying according to DIN 8975

THIS PUMP MODEL IS MADE WITH A SPECIAL FIREPROOF INSULATION ON THE ELECTRICAL COMPONENTS, THIS GIVES IT THE POSSIBILITY OF BEING CERTIFIED AGAINST POSSIBLE EXPLOSIONS OR DEFLAGATIONS CAUSED BY THE FLAMMABILITY OF THE 2 GASES R32 AND R1234YF

THE PUMP CAN OF COURSE ALSO BE USED ON SYSTEMS WITH OTHER REFRIGERANT GASES SUCH AS: R410A / R407C / R404A / R22 ....

EQUIPPED WITH VACUUM GAUGE TO DISPLAY VACUUM OPERATION

EQUIPPED WITH A SOLENOID VALVE TO PREVENT OIL RETURN IN THE EVENT OF AN ACCIDENTAL BLACKOUT.

EQUIPPED WITH ON-OFF SWITCH

OIL LEVEL INDICATOR

2 BOTTLES OF OIL INCLUDED

POWER CORD WITH SHUKO PLUG

ERGONOMIC CARRYING HANDLE

TECHNICAL DATA:

TWO-STAGE MODEL WITH SOLENOID VALVE AND VACUUM GAUGE

SUCTION CAPACITY IN LITERS PER MINUTE 200 – 7.0 CFM

ENGINE POWER 3/4 HP

POWER SUPPLY 220 V - 50Hz

FINAL VACUUM: 3x10-1 Pa - 0.003 mbar

OIL IN THE PUMP 700 ML.

DIMENSIONS 400x160x280 (mm)

WEIGHT 16 KG

1/4” SAE MALE CONNECTION

Product Code: VE260+E
