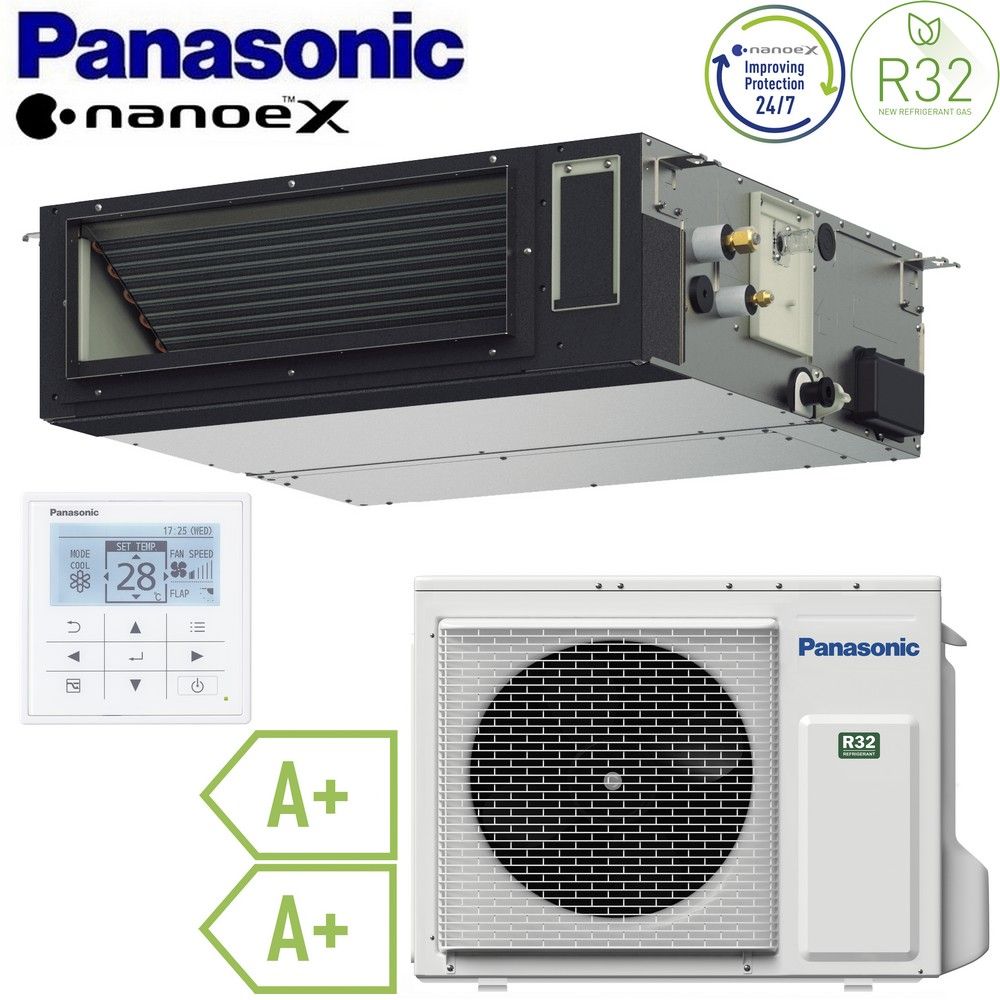

FLEXIBLE DUCTED MONO PF3 24000 BTU PANASONIC

INVERTER - heat pump - CLASS A+4+ horizontal/vertical installation - wall control included

Characteristics:

The new models have been completely redesigned to ensure flexible installation for all types of commercial and residential environments. The units can be positioned either vertically or horizontally and allow the air intake to be oriented either at the rear or front of the unit by simply moving a cover panel.

Thanks to a height of just 250 mm, false ceilings are no longer a problem. These units can easily be installed in lower-than-standard false ceilings.

The PF3 models can cover an external static pressure range from 10 to 150 Pa. They are quiet units, with minimum sound levels of just 22 dB(A) thanks to the improved fan design that ensures smoother airflow for low-noise operation.

Special features of the new line:

• Flexible installation: horizontal / vertical;
• Only 250 mm high;
• Maximum external static pressure: 150 Pa;
• Selectable air inlet position (rear / bottom inlet);
• Improved drainage tray, suitable for both horizontal and vertical installation;
• Drain pump included;
• Nanoe™ X (Mark 2 = 9.6 trillion OH radicals/sec) as standard;
• Eco-friendly refrigerant R32
• Ducted units can be controlled via KNX, EnOcean and Modbus
• Eco mode, for 20% energy savings
• Compact internal units (height of only 200 mm)
• Weekly programming timer, with the possibility of programming 42 events per week
• Simplified control mode, for the detection of any faults
• Drain pump included
• Wired wall control model CZ-RTC5B included

Technical Features

Model:

• Indoor unit catalog code: S-6071PF3E
• Outdoor unit catalog code: U-71PZ3E5A
• Wall control code included: CZ-RT5B
• Power (BTU): 24000

Energy Efficiency:

• SEER/SCOP (W/W): 6.0/4.10
• Energy Efficiency Class (Cooling): A+
• Energy Efficiency Class (Heating): A+
• Average annual cooling consumption kWh/a: 391
• Average annual heating consumption kWh/a: 1591

Performance:

• Rated Cooling Capacity (kW): 6.8 (2.6/7.7)
• Nominal heating capacity (kW): 6.8 (2.1-8.1)
• Indoor unit sound pressure (dB-A): 30/26/23
• External unit sound pressure (dB-A): 48/49

Electrical data:

• Power supply: 230 V

Characteristics:

• Refrigerant gas: R32

Guaranteed operating range:

• Cooling C: -10 ~ +43
• Heating C: -15 ~ +24

Dimensions:

• Internal Unit HxWxD (mm): 250 x 1000 x 730; 30kg
• External Unit HxWxD (mm): 695 x 875 x 320; 50kg
