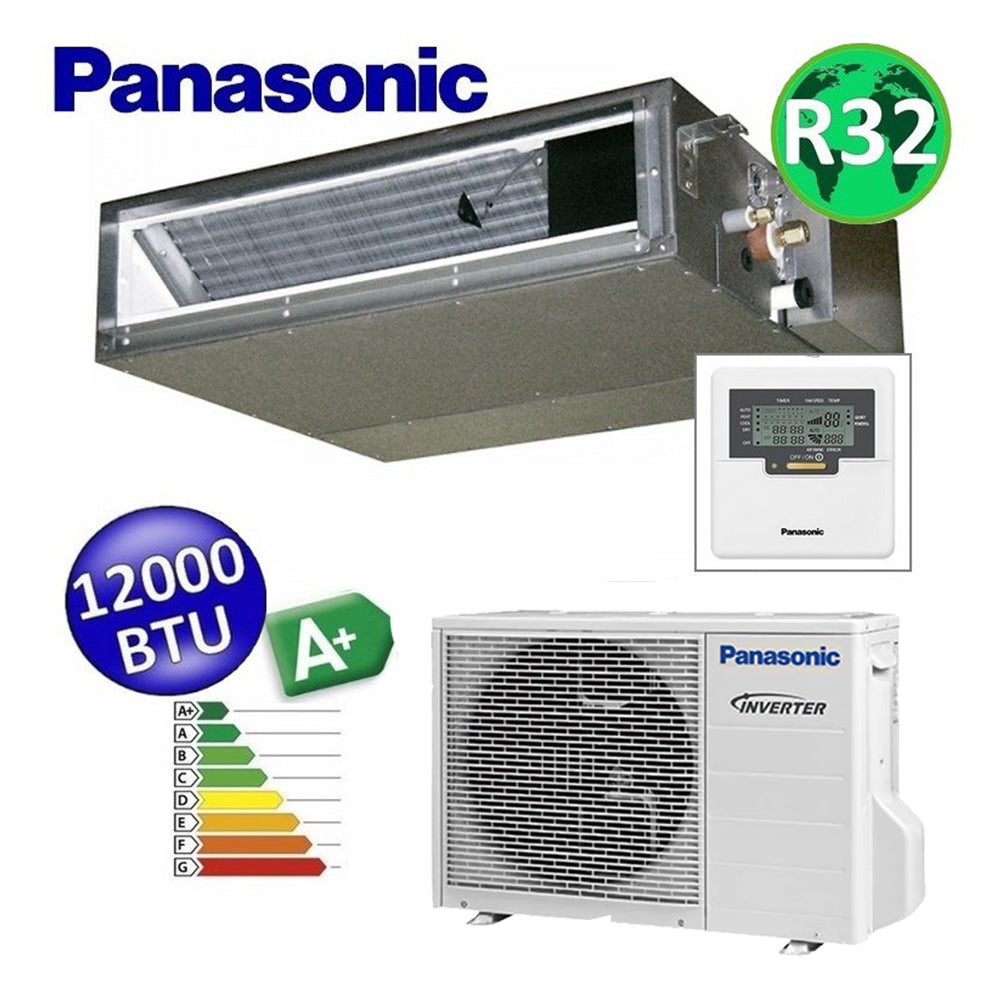

Panasonic 12000 BTU 3.5 kW R32 A+ single-duct air conditioner - low pressure

Characteristics:

· Eco-friendly refrigerant R32

· Ducted units can be controlled via KNX, EnOcean and Modbus

· Eco mode, for 20% energy savings

· Compact internal units (height of only 200 mm)

· Weekly programmable timer, with the possibility of programming 42 events per week

· Simplified control mode, for the detection of any faults

· Drain pump included

Technical Features

Model:

• Indoor unit catalog code: CU-Z35UD3EAW

• Outdoor unit catalog code: CS-Z35UBEA

• Power (BTU): 12000

Energy Efficiency:

• SEER/SCOP (W/W): 5.80/4.10

• Energy Efficiency Class (Cooling): A+

• Energy Efficiency Class (Heating): A+

• Average annual cooling consumption kWh/a: 211

• Average annual heating consumption kWh/a: 956

Performance:

• Rated Cooling Capacity (kW): 3.50

• Nominal heating capacity (kW): 3.85

• Indoor unit sound pressure (dB-A): 33/27/24 - 35/27/24

• External unit sound pressure (dB-A): 46/47

Electrical data:

• Power supply: 230 V

Characteristics:

• Refrigerant gas: R32

Guaranteed operating range:

• - Cooling C: -10 ~ +43

• - Heating C: -15 ~ +24

Dimensions:

• Internal Unit HxWxD (mm): 200 x 750 x 640; 19kg

• External Unit HxWxD (mm): 618 x 824 x 299; 35kg

 Product Code: CS-Z35UD3EAW+CU-Z35UBEA
