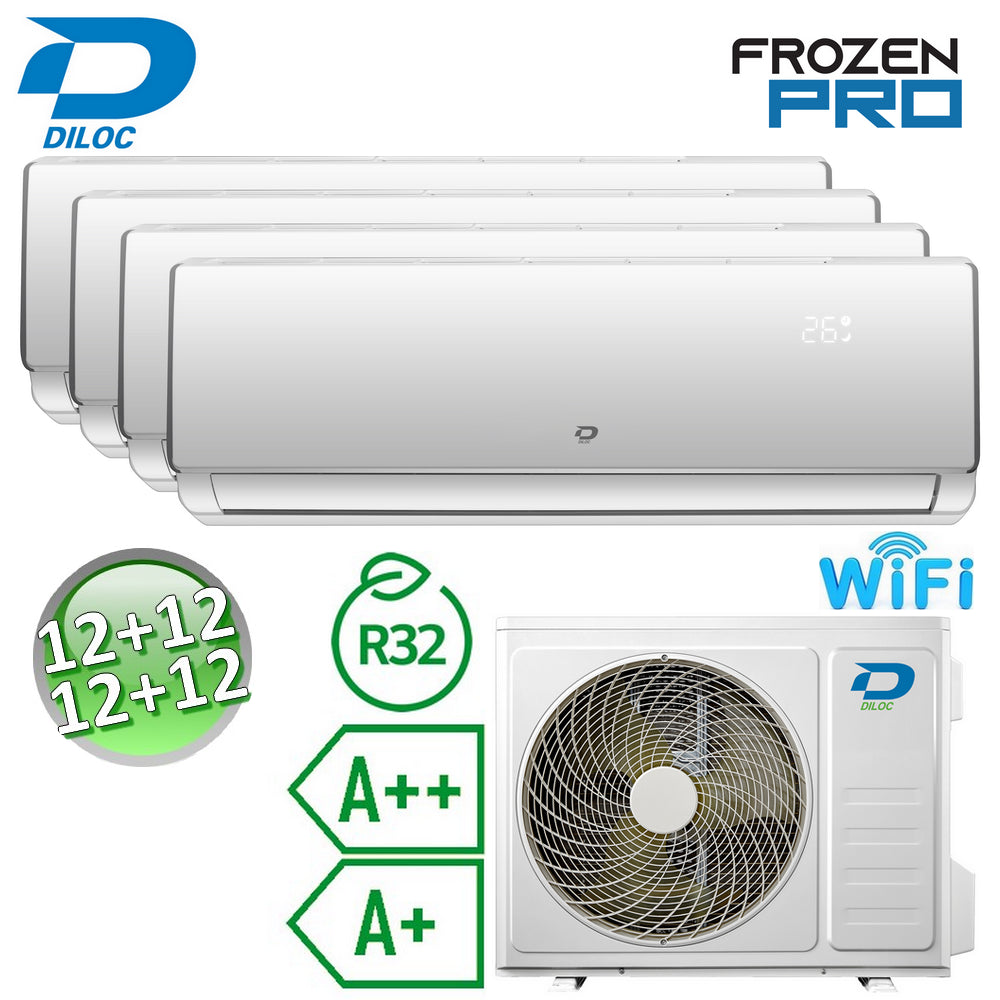

Diloc Frozen PRO 12+12+12+12 BTU R32 A++/A+ split air conditioner - integrated WiFi

Smart Wi-Fi function allows you to control air conditioners via tablet, iPad and smartphone.
You can manage all the functions of the product.

Model:

• Series: Frozen PRO

• Internal unit model: FRPRO.35S

• External unit model: FRPRO.93Q

• Type: heat pump

• Thermal power in cold mode: BTU/h 32000 (10600 ~ 35000) - Kw 9,4 (3,1 ~ 10,2)

  Heating power: BTU/h 32000 (8700 ~ 35000) - Kw 9.5 (2.6 ~ 10.2)

• Wi-Fi Control - iOS and Android Application - Apple Store / Google Play

Energy Efficiency:

• Seasonal efficiency:
  SEER / SCOP (average climate): 6.1 / 4.0

• Energy Efficiency Class (Cooling): A++

• Energy Efficiency Class (Heating): A+/A++

Performance:

• Air flow rate Int. Unit FRPRO.35S m³/h max: 550

• • Sound Pressure Int. Unit FRPRO.35S (dB(A)) : 40-37-33-25-22

• Sound Pressure External Unit Max (dB(A)) : 70

• Cooling power consumption Watt: 2765 (410~3500)

  Heating power consumption Watt: 2200(770~2750)

Electrical data:

• Power supply (V/Hz/?) : 230/50/1

Characteristics:

• Refrigerant gas: R32 / 2.2 Kg

• Liquid / Gas Pipe Diameter (inches): 1/4” - 3/8”

• Maximum length of pipes 80 m

• Maximum height difference (external unit above) 10 m

Dimensions and weight:

• External Unit WxDxH(mm): 990x340x910; 68.0 Kg without packaging

• Internal Unit FRPRO.35S WxDxH(mm): 777x201x250; 6.5 kg without packaging

ASSISTANCE and WARRANTY

Assistance is guaranteed by Diloc centers located throughout the country.
