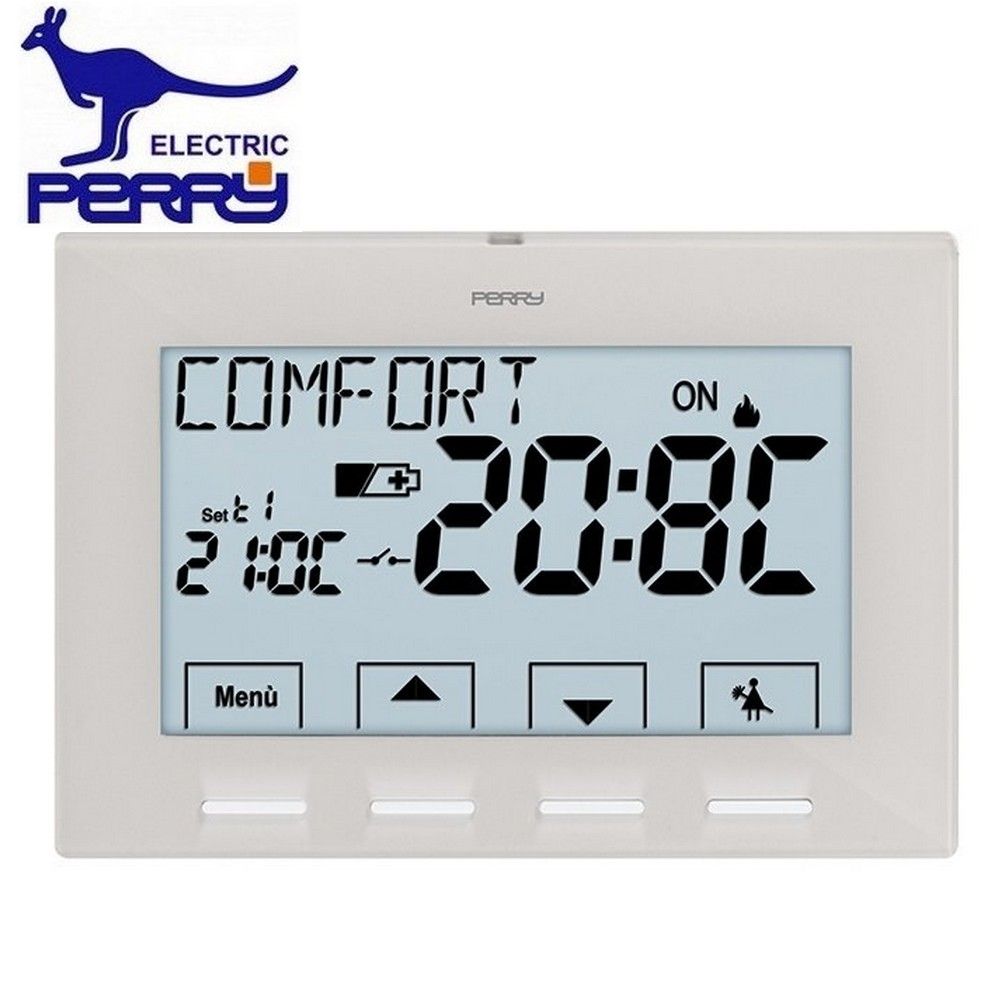

Perry 1TPTE028B - NEXT Series Backlit Wall-Mounted Digital Thermostat - White

PERRY 1TPTE028B - NEXT series

Battery-Powered Backlit Wall Thermostat - White

DIGITAL THERMOSTAT MENU NAVIGATION and BRIGHT DISPLAY Wall installation Battery powered Winter / Summer 2 temperature levels + antifreeze Input for remote contact Input for remote temperature probe

The battery-powered thermostat is suitable for all heating and/or cooling systems and features a clear backlit display for real-time monitoring of all its functions. Its key feature is its ease of use via menu navigation; despite its comprehensive functionality, it is extremely easy to use. The thermostat defaults to ON/OFF differential temperature regulation, and the hysteresis can be set from 0.2°C to 1.2°C to match the thermal inertia of your specific system. Alternatively, you can select proportional modulating operation with adjustable cycle durations (from 7 to 20 minutes). This system maintains the desired temperature more stable, increasing the user's comfort and is particularly suitable for systems with high thermal inertia, such as underfloor radiant panels. The factory-set temperature scale is in degrees Centigrade (Celsius) with the possibility of calibrating the room temperature measurement by setting a correction value (from -3 to +3 °C).
It is possible to connect a separate, remote temperature probe (optional) to the thermostat and then set it according to your system needs: remote, floor-mounted, external.
Particular attention has been paid to energy saving: the suspension of thermoregulation for house cleaning, the optional blocking of the set temperatures (MAX/MIN), the adjustable antifreeze temperature value, the control via an external contact (for example, optional telephone programmer), allow you to avoid energy waste with consequent economic savings.

Main features of the electronic thermostat :

3V digital thermostat with menu, “NEXT” series, white color
Multilingual menu
Power supply 3V – 2x1.5V AA alkaline
4.3” backlit LCD display
Backlit buttons
Output 1 potential-free changeover contact: 5(3)A/250V AC.
ON/OFF operation with adjustable differential from 0.2 – 1.2°C or modulating with control period from 7 - 20 min
Temperature levels 2 + antifreeze
Adjustable temperature in 0.1°C increments
Cleaning pause button
Telephone or remote control input
Remote probe input
EST/INV command
Pump activation program
Temperature set block
User password
Installer password
Timed backlight
Relay status indication
Correction of t detection according to product positioning
Wall mounting
Adjustment range 5 - 37.7°C
Dimensions (WxDxH) 128.5 x 88.5 x 26 mm

Product Code: 1TPTE028B
