RANCO O17H4701 High/Low Pressure Switch for Refrigerant
RANCO O17H4701 High/Low Pressure Switch for Refrigerant
Regular price
€70,96
Regular price
Sale price
€70,96
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

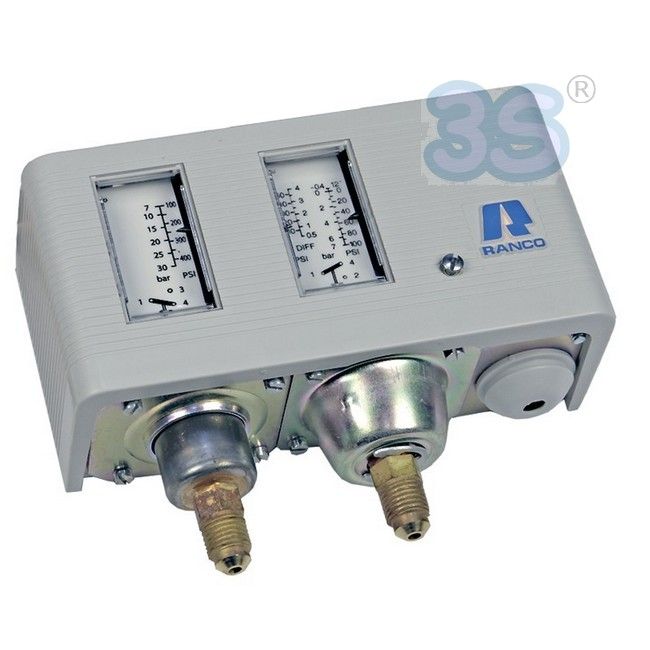

DOUBLE PRESSURE SWITCH high/low PRESSURE
RANCO O17H4701
CHARACTERISTICS:
RANCO double mechanical refrigerant pressure controller for HIGH or LOW pressure, with single-pole SPDT switch, with automatic reset. Measuring range High 7/30 bar - Low -0.3/+7 bar, Differential High 3.5 bar - Low 0.6/4 bar, Maximum steady state pressure High 35 bar - Low 20 bar, Burst pressure High 128 bar - Low 80 bar. Standard bellows type, 1/4 SAE Male connection. Ambient operating temperature -30°C/+55°C. Installation: two threaded holes on the back of the regulator for the insertion of M4x6mm screws (supplied). Adjustment: using a cross-head hexagonal nut for both the set and the differential. Devices suitable for use with the most common gases. Dimensions: 135 x 49 x 76 mm.
Product Code: O17H4701
