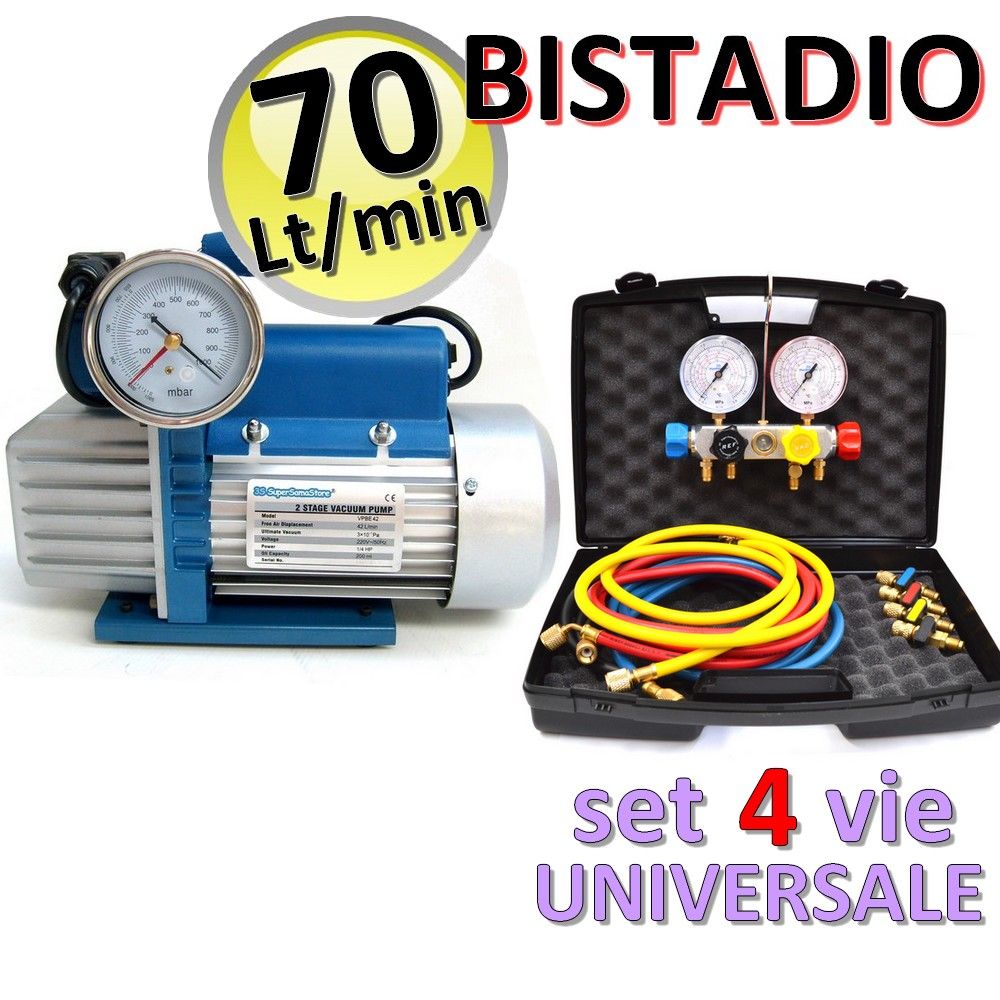

70 Lt two-stage vacuum pump + universal 4-way pressure gauge set

70 LT TWO-STAGE VACUUM PUMP
+
4-WAY MANOMETER SET
with scales R410A - R32 - R407C - R134A

CHARACTERISTICS:

VACUUM PUMP:

• INSTRUCTIONS IN ITALIAN
• TWO-STAGE MODEL 70 LITERS PER MINUTE
• EQUIPPED WITH VACUUM GAUGE TO DISPLAY VACUUM OPERATION
• EQUIPPED WITH A SOLENOID VALVE TO PREVENT OIL RETURN IN THE EVENT OF AN ACCIDENTAL BLACKOUT.
• EQUIPPED WITH ON-OFF SWITCH
• OIL LEVEL INDICATOR
• 1 PACK OF OIL INCLUDED
• POWER CORD WITH SHUKO PLUG
• ERGONOMIC CARRYING HANDLE

TECHNICAL DATA:

• TWO-STAGE MODEL
• SUCTION CAPACITY IN LITERS PER MINUTE 70
• MOTOR POWER 1/3 HP
• POWER SUPPLY 220 V - 50Hz
• FINAL VACUUM 3x10-1 Pa
• OIL IN THE PUMP 250 ML.
• DIMENSIONS 320X160X240 (mm)
• WEIGHT 9.30 KG
• 1/4' SAE CONNECTION
• CE CERTIFIED

UNIVERSAL 4-WAY MANOMETER SET:

• MANOMETER GROUP WITH 4 TAPS WITH BLUE-BLACK-YELLOW-RED CONTROL ON THE ALUMINUM BODY WHICH CONTROL THE 4 CONNECTION OUTPUTS.
• UNIVERSAL WITH SCALES GAS R410A / R32 / R407C / R134A
• MANOMETER HANGING HOOK
• FOUR 1500 mm LONG BLUE-BLACK-YELLOW-RED HOLES WITH 5/16 SAE CONNECTIONS ON BOTH ENDS, ONE OF WHICH IS EQUIPPED WITH VALVE PRESSURES.
• 2 TAPS - FITTINGS FOR R32 and R410A MALE 5/16 SAE WITH VALVE PRESSURE TO ATTACH TO THE FLOATING ENDS OF THE HOSES FOR INDEPENDENT CLOSURES.
• 2 TAPS - FITTINGS FOR R407C AND R134A MALE 5/16 SAE FEMALE 1/4 SAE CO VALVE PRESSURE TO ATTACH TO THE FLOATING ENDS OF THE HOSES FOR INDEPENDENT CLOSURES.
• 1 PLASTIC MANOMETER SET CASE.

Product code: KT.70B4
