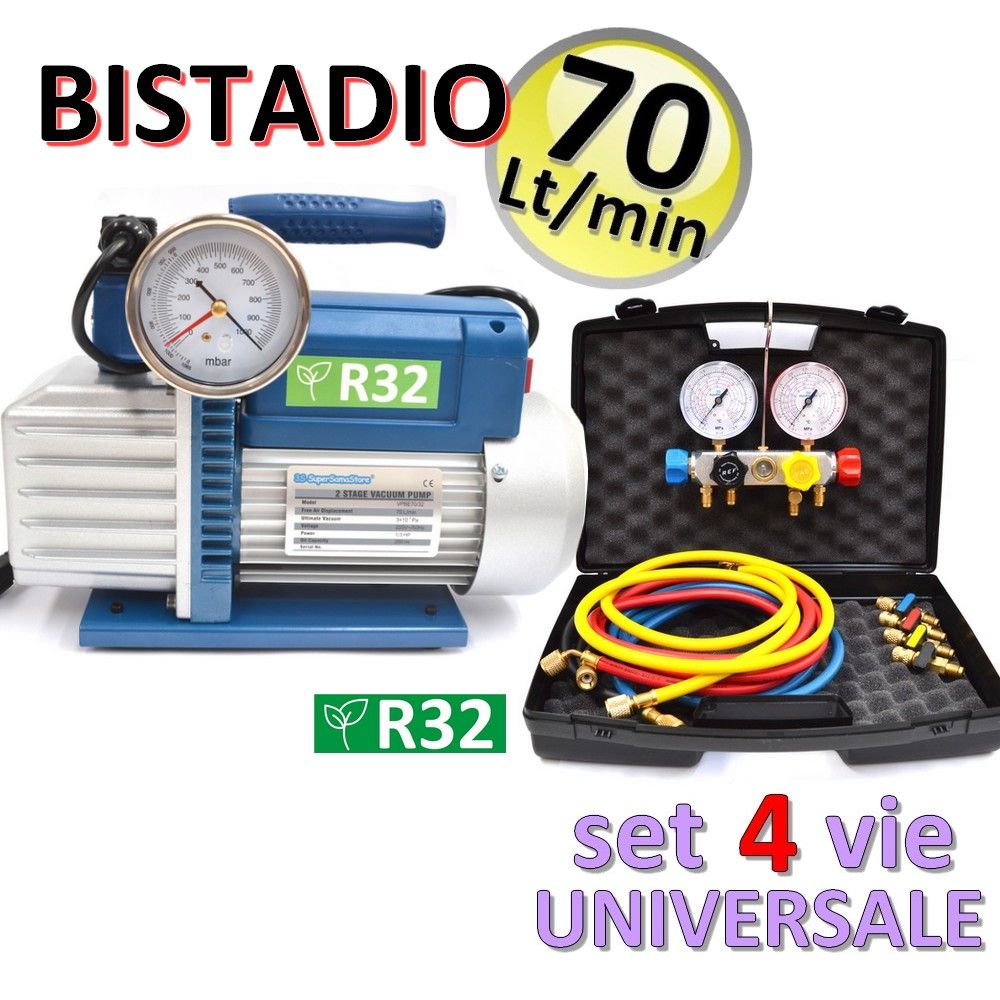

70 Lt two-stage vacuum pump, R32 approved + universal 4-way pressure gauge set

70 LT TWO-STAGE VACUUM PUMP APPROVED R32
+
4-WAY MANOMETER SET
with scales R410A - R32 - R407C - R134A

CHARACTERISTICS:

VACUUM PUMP:

• INSTRUCTIONS IN ITALIAN

  TWO-STAGE MODEL 70 LITRES PER MINUTE - SPECIFIC FOR R32 AND R1234YF GASES for emptying according to DIN 8975

  THIS PUMP MODEL IS MADE WITH A SPECIAL FIREPROOF INSULATION ON THE ELECTRICAL COMPONENTS, THIS GIVES IT THE POSSIBILITY OF BEING CERTIFIED AGAINST POSSIBLE EXPLOSIONS OR DEFLAGATIONS CAUSED BY THE FLAMMABILITY OF THE 2 GASES R32 AND R1234YF

  THE PUMP CAN OF COURSE ALSO BE USED ON SYSTEMS WITH OTHER REFRIGERANT GASES SUCH AS: R410A / R407C / R404A / R22 ....

  EQUIPPED WITH VACUUM GAUGE TO DISPLAY VACUUM OPERATION

  EQUIPPED WITH A SOLENOID VALVE TO PREVENT OIL RETURN IN THE EVENT OF AN ACCIDENTAL BLACKOUT.

  EQUIPPED WITH ON-OFF SWITCH

  OIL LEVEL INDICATOR

  1 PACK OF OIL INCLUDED

  POWER CORD WITH SHUKO PLUG

  ERGONOMIC CARRYING HANDLE

• TECHNICAL DATA:

  TWO-STAGE MODEL

  SUCTION CAPACITY IN LITERS PER MINUTE 70 - 2.5 CFM

  MOTOR POWER 1/3 HP

  POWER SUPPLY 220 V - 50Hz

  FINAL VACUUM: 3x10-1 Pa - 0.003 mbar

  OIL IN THE PUMP 310 ML.

  DIMENSIONS 320X160X240 (mm)

  WEIGHT 9.30 KG

  1/4' SAE CONNECTION

UNIVERSAL 4-WAY MANOMETER SET:

MANOMETER GROUP WITH 4 TAPS WITH BLUE-BLACK-YELLOW-RED CONTROL ON THE ALUMINUM BODY WHICH CONTROL THE 4 CONNECTION OUTPUTS.
UNIVERSAL WITH SCALES GAS R410A / R32 / R407C / R134A
MANOMETER HANGING HOOK
FOUR 1500 mm LONG BLUE-BLACK-YELLOW-RED HOLES WITH 5/16 SAE CONNECTIONS ON BOTH ENDS, ONE OF WHICH IS EQUIPPED WITH VALVE PRESSURES.
2 TAPS-FITTINGS FOR R32 and R410A MALE 5/16 SAE WITH VALVE PRESSURE TO ATTACH TO THE FLOATING ENDS OF THE HOSES FOR INDEPENDENT CLOSURES.
2 TAPS-FITTINGS FOR R407C AND R134A MALE 5/16 SAE FEMALE 1/4 SAE CO VALVE PRESSURE TO ATTACH TO THE FLOATING ENDS OF THE HOSES FOR INDEPENDENT CLOSURES.
1 PLASTIC MANOMETER SET CASE.

Product code: KT.70B4R32
