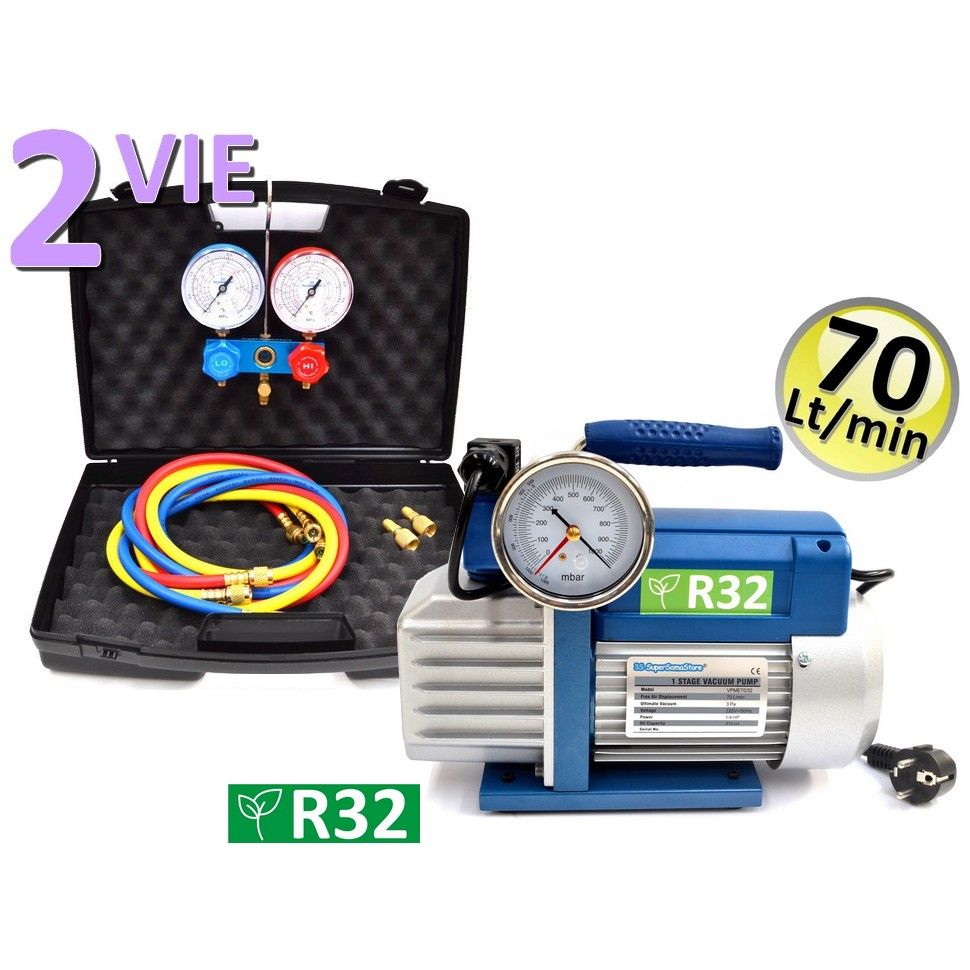

70 Lt R32 approved vacuum pump + universal 2-way pressure gauge set

70 LT VACUUM PUMP APPROVED R32

WITH VACUUM GAUGE AND SOLENOID VALVE
+
2-WAY MANOMETER SET
with scales R410A - R32 - R407C - R134A

CHARACTERISTICS:

VACUUM PUMP:

INSTRUCTIONS IN ITALIAN

SINGLE-STAGE MODEL WITH 70 LITRES PER MINUTE - SPECIFIC FOR R32 AND R1234YF GASES for emptying according to DIN 8975

THIS PUMP MODEL IS MADE WITH A SPECIAL FIREPROOF INSULATION ON THE ELECTRICAL COMPONENTS, THIS GIVES IT THE POSSIBILITY OF BEING CERTIFIED AGAINST POSSIBLE EXPLOSIONS OR DEFLAGATIONS CAUSED BY THE FLAMMABILITY OF THE 2 GASES R32 AND R1234YF

THE PUMP CAN OF COURSE ALSO BE USED ON SYSTEMS WITH OTHER REFRIGERANT GASES SUCH AS: R410A / R407C / R404A / R22 ....

EQUIPPED WITH VACUUM GAUGE TO DISPLAY VACUUM OPERATION

EQUIPPED WITH A SOLENOID VALVE TO PREVENT OIL RETURN IN THE EVENT OF AN ACCIDENTAL BLACKOUT.

EQUIPPED WITH ON-OFF SWITCH

OIL LEVEL INDICATOR

1 PACK OF OIL INCLUDED

POWER CORD WITH SHUKO PLUG

ERGONOMIC CARRYING HANDLE

TECHNICAL DATA:

SINGLE-STAGE MODEL

SUCTION CAPACITY IN LITERS PER MINUTE 70 - 2.5 CFM

MOTOR POWER 1/4 HP

POWER SUPPLY 220 V - 50Hz

FINAL VACUUM: 3 Pa - 0.03 mbar

OIL IN THE PUMP 310 ML.

DIMENSIONS 310X160X240 (mm)

WEIGHT 7.70 KG

1/4' SAE CONNECTION

UNIVERSAL 2-WAY MANOMETER SET:

• UNIVERSAL 2-WAY PRESSURE GAUGES, WITH GAS SCALES R410A - R32 - R407c - R134A

• MANOMETER DIAMETER 80 mm

• 3 WHIPS 1/4 x 1/4 SAE - LENGTH 150 cm

• 2 REDUCED FITTINGS 1/4 SAE M x 5/16 F

Product code: KT.70MR32
