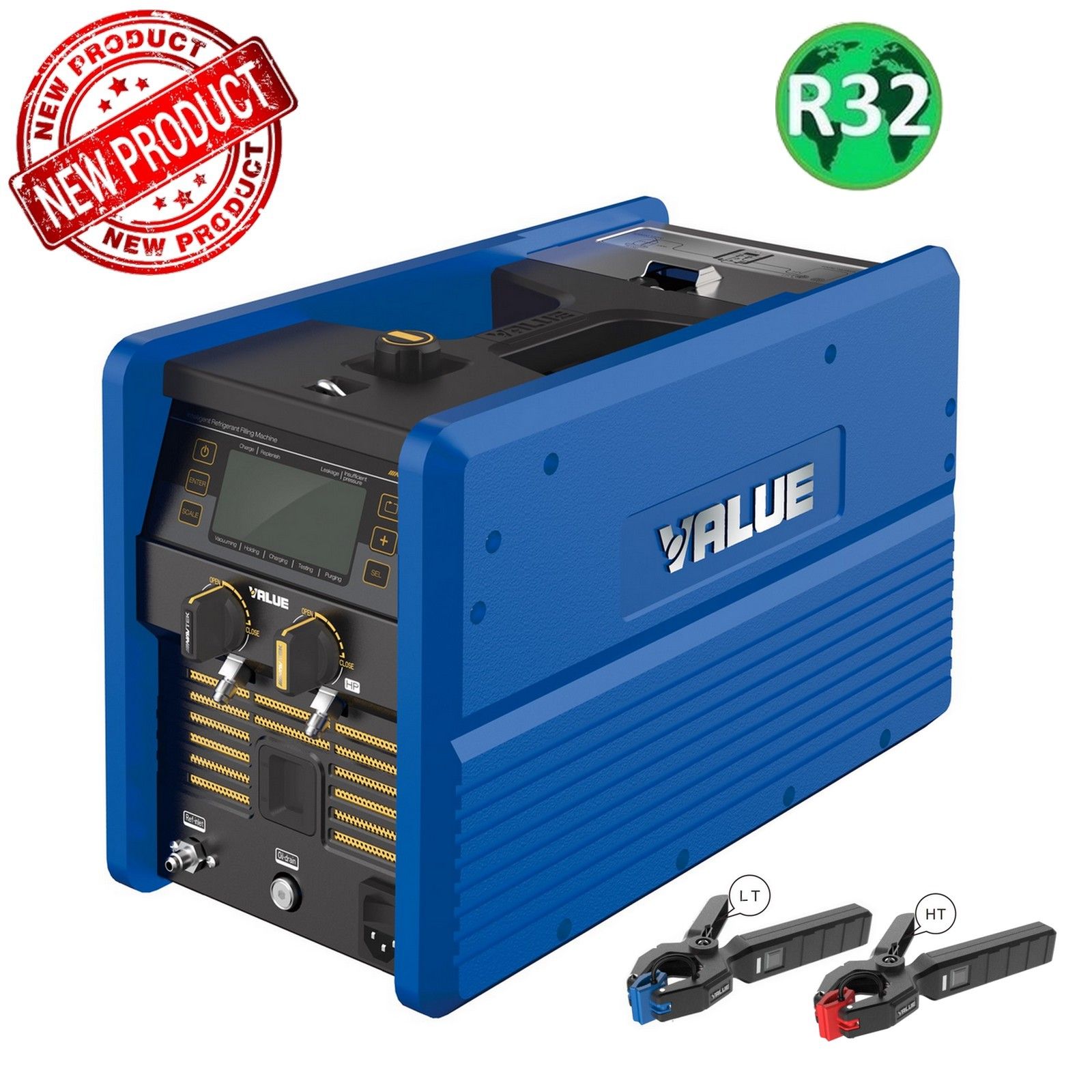

Portable automatic charging and vacuum station with wireless temperature probes

CHARGING AND VACUUM STATION

AUTOMATIC PORTABLE - WITH WIRELESS TEMPERATURE PROBES

CHARACTERISTICS:

The world's first intelligent and portable automatic station NAVTEK is an innovative multifunctional tool, dedicated to HVAC professionals.

It contains everything necessary to ensure perfect start-up and simple maintenance of air conditioning/refrigeration systems.

The station carries out three actions autonomously and in complete safety:

• Vacuum/drying plant operation;

• Empty value monitoring and leak detection operation;

• System charging operation and bringing operating pressures up to standard.

The station is equipped with a precision wireless digital scale housed in a special compartment, 3 flexible hoses for connection to the systems, a high-flow two-stage vacuum pump (170 LT/min) and a digital manifold (approved for R32, R1234YF and R1234ZE).

It eliminates the possibility of errors during the delicate installation/maintenance phases of refrigeration systems, thanks to the possibility of being completely programmed by the operator (vacuum value to be reached, quantity of refrigerant to be inserted into the system and working pressures/temperatures to be satisfied).

STATION TECHNICAL DATA:

Power supply: 230V~50-60hz

Vacuum Rating: 6.0 CFM

Charge: 30 g/s

Engine power: 1/2 Hp

Operating temperature: 5°C~40°C

Dimensions: 484 x 254 x 328 mm

Weight: 21.3 kg

TECHNICAL DATA PROBES:

Measuring range: -40°C~+150°C

Accuracy: ±1.3°C(-20 ~ 85°C)

Resolution: 0.1°C

Units of measurement: °F, °C

Operating temperature: -20 ~ +50°C

Storage temperature: -20 ~ +60°C

Auto power off when 5 minutes of non-sync

Tube size: Ø6 ~ Ø35 mm

Battery type: 3xAAA

Battery life: >400 hours

Bluetooth distance: 8m

Dimensions: 182 x 100 x 28 mm

Product Code: VRC-6100D
