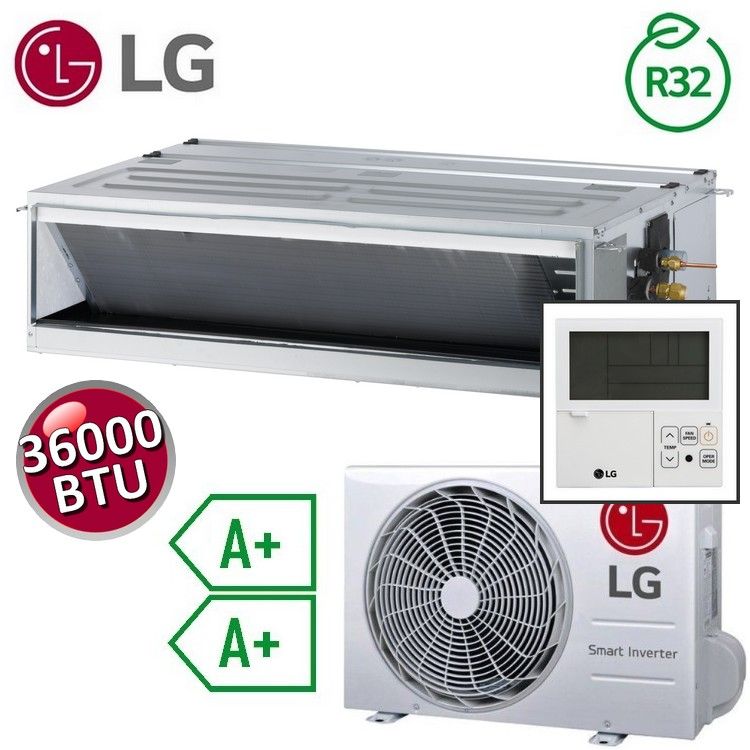

LG SINGLE DUCTED COMPACT INVERTER 36000 BTU UM36F.N20 – UUC1.U40

DUCTED MEDIUM HEAD - WALL CONTROL INCLUDED

DESCRIPTION:

Series: COMPACT INVERTER - with R32 refrigerant gas
Indoor unit model: UM36F.N20
Outdoor unit model: UUC1.U40
Type: heat pump
Power: 36000 BTU

Energy Efficiency:

Seasonal efficiency:

-SEER: 5.9
-SCOP average climate zone: 4.0

Energy Efficiency Class (Cooling): A+
Energy Efficiency Class (Heating): A+
Seasonal energy consumption kWh/year: cooling 564 - heating 1924

Performance:

Cooling Capacity (kW) : 9.5 (3.8 / 10.5)
Heating Capacity (kW): 10.8 (4.3 / 11.5)
Air flow UI (sa.-a.-m.-b.) m³/min: 32 / 28 / 24
Sound Pressure Int. Unit (sa.-a.-m.-b.) (dB(A)) : 36 / 33
Sound Pressure External Unit Max (dB(A)) : 54 / 56
Sound power level EU (a.): 70
Cooling power consumption kW: 0.60 / 3.16 / 3.86
Heating power consumption kW: 0.60 / 3.03 / 3.48

Electrical data:

Power supply (V/Hz/?) : 230/1/50

Characteristics:

Refrigerant gas: R32 / 1900 gr. / 1,283 Tco2
Liquid / gas pipe diameter: 9.52 (3/8") / 15.88 (5/8") mm
Maximum length of pipes with additional load 50 m
Maximum height difference (external unit above) 30 m

Dimensions and weight:

Internal Unit HxWxD (mm): 270x1250x700; 38.5 Kg
External Unit HxWxD (mm): 834x950x330; 65 kg
