Two-stage vacuum pump 70 L/min for R32 R1234YF gas systems - vacuum gauge and solenoid valve

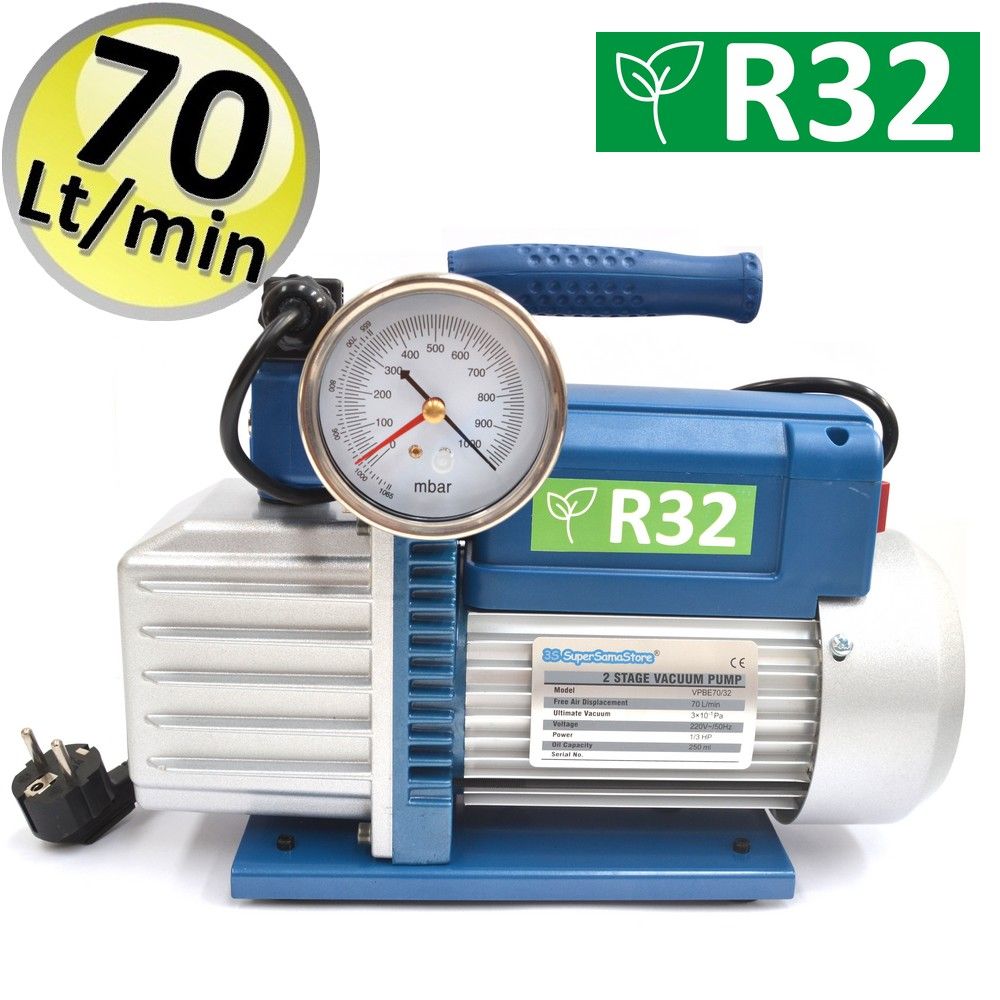

TWO-STAGE VACUUM PUMP 70 Lt/min

with SOLENOID VALVE and VACUUM GAUGE - FOR R32 R1234YF GAS for emptying according to DIN 8975

Characteristics:
Two-stage model of 70 litres per minute - specific for R32 and R1234yf gas for emptying according to DIN 8975.
This pump model is made with special fireproof insulation on the electrical components, which allows it to be certified against any explosions or deflagrations caused by the flammability of R32 and R1234yf gases.
The pump can also be used on systems with other refrigerant gases such as: R410A, R407C, R404A, R22...

• equipped with vacuum gauge to display vacuum operation
• equipped with a solenoid valve to prevent oil from returning in the event of an accidental blackout
• equipped with on-off switch
• oil level indicator
• 1 pack of oil included
• power cord with Schuko plug
• ergonomic handle for carrying
• Technical data:
• two-stage model
• Suction capacity: 70 liters per minute - 2.5 cfm
• Engine power: 1/3 hp
• Power supply: 220 V - 50 Hz
• final vacuum: 3x10-1 pa - 0.003 mbar
• oil in the pump: 310 ml
• Dimensions: 320x160x240 mm
• weight: 9.3 kg
• connection: 1/4'' SAE

Product code: VPBE70/32
