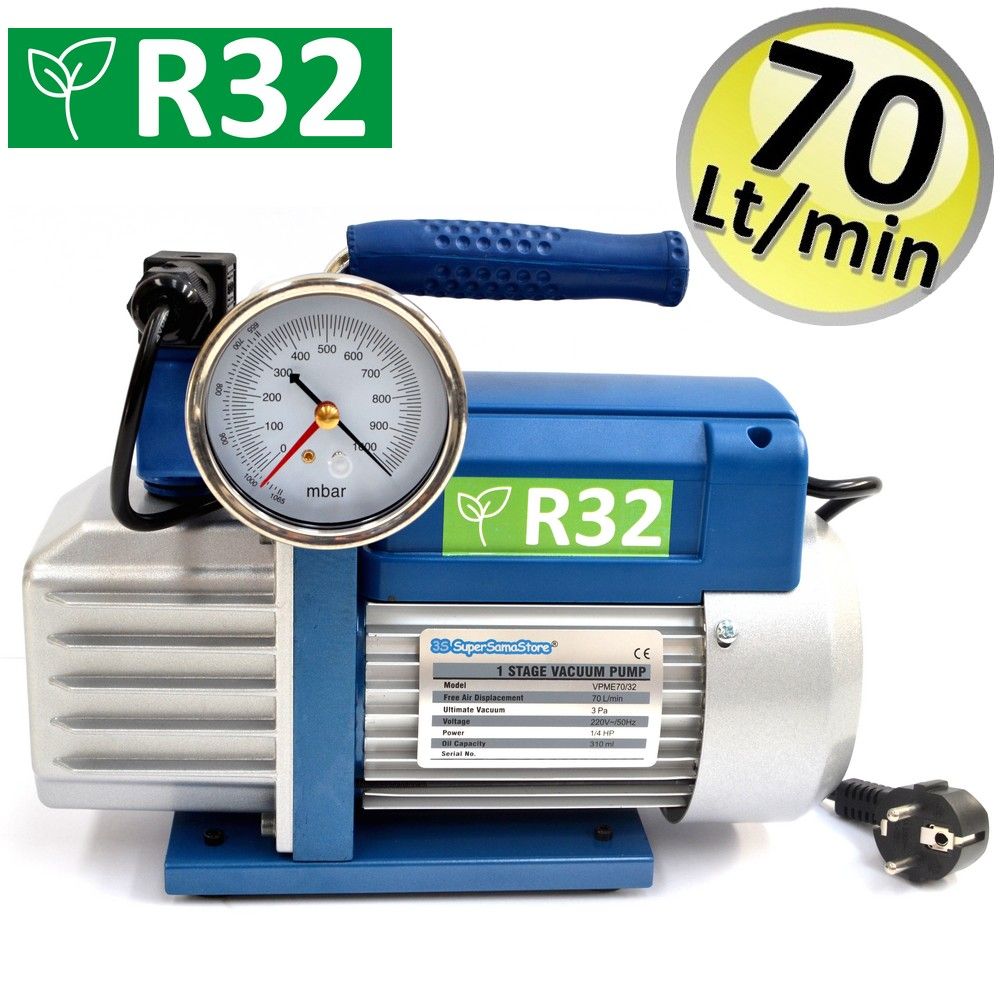

Single-stage vacuum pump 70 L/min for R32 R1234YF gas systems - vacuum gauge and solenoid valve

Single-stage vacuum pump 70 l/min with solenoid valve and vacuum gauge, for R32 and R1234YF gases for emptying according to DIN 8975

Characteristics:

• Instructions in Italian

• Single-stage model with 70 litres per minute - specific for R32 and R1234YF gases for emptying according to DIN 8975

• This pump model is made with a special fireproof insulation on the electrical components, this gives it the possibility of being certified against any explosions or deflagrations caused by the flammability of the 2 gases R32 and R1234YF

• The pump can of course also be used on systems with other refrigerant gases such as: R410A / R407C / R404A / R22 ....

• Equipped with vacuum gauge to display vacuum operation.

• Equipped with a solenoid valve to prevent oil from returning in the event of an accidental blackout.

• Equipped with on-off switch

• Oil level indicator

• 1 pack of oil included

• Power cord with Schuko plug

• Ergonomic carrying handle

Technical data:

• Single-stage model

• Suction capacity in liters per minute 70 - 2.5 cfm

• Engine power 1/4 hp

• Power supply 220V - 50Hz

• Ultimate vacuum: 3 pa - 0.03 mbar

• Oil in the pump 310 ml.

• Dimensions 310x160x240 (mm)

• Weight 7.70 kg

• 1/4' SAE connection

Product code: VPME70/32
