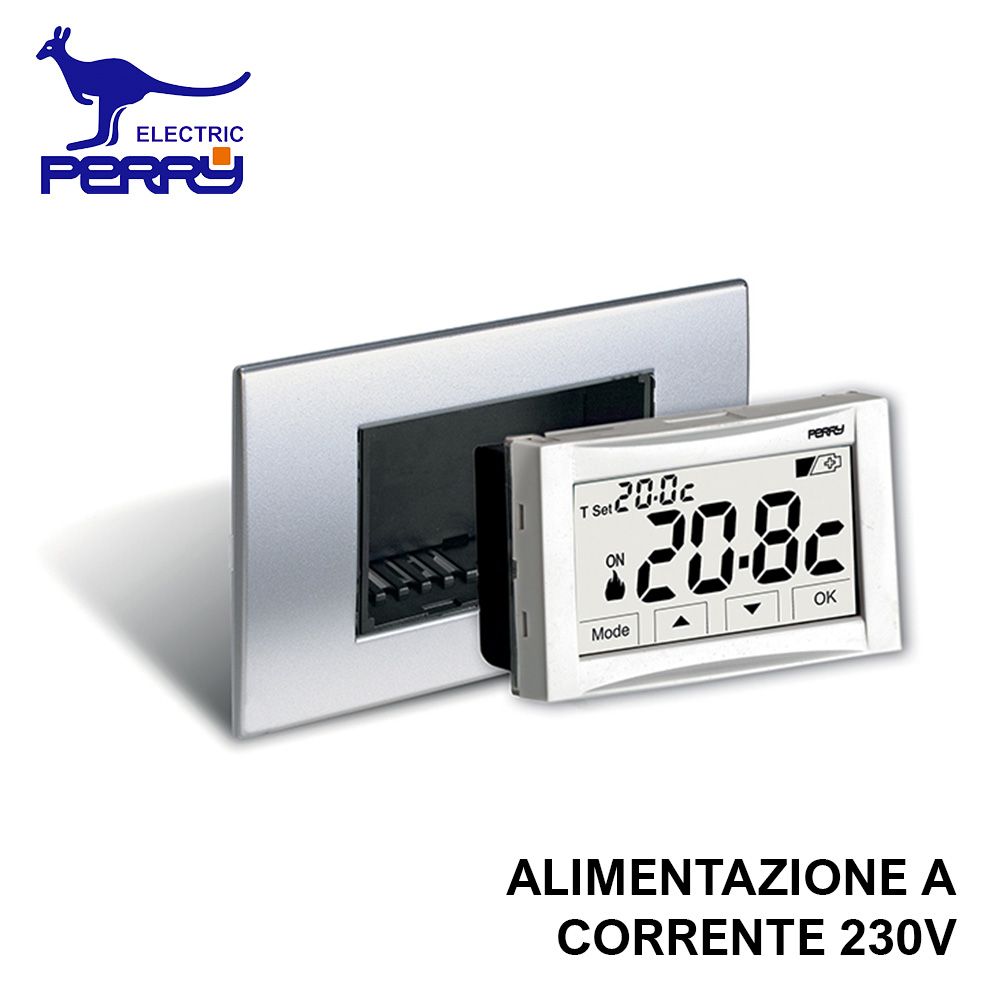

Perry 1TITE543 - 230v built-in digital touch screen thermostat MOON SOFT TOUCH

PERRY 1TITE543 - Built-in digital touch screen thermostat - MOON SOFT TOUCH series - 230V power supply

plate not included

CHARACTERISTICS:

Perry 1TI TE543 built-in 230V MOON SOFT TOUCH digital thermostat

MOON TOUCH SCREEN series 230V 50-60Hz built-in digital thermostat

light displayPower supply

Power supply 230V~ 50÷60Hz

Output 1 potential-free changeover contact: 5(3)A/250V AC.

ON/OFF operation with adjustable differential from 0.2 – 1.2°C or modulating with control period from 7 - 20 min

Temperature levels 2 + antifreeze

Timed backlight

Telephone control input

LOW BAT indication

Relay status indication

EST/INV command

Temperature set block

Correction of t detection according to product positioning

Dimensions (WxDxH) 65 x 53 x 47

With the three front panels supplied in the package, the products are dimensionally and chromatically compatible with the plates of the series:

BTICINO
Light, LivingLight White,
Light Tech, LivingLight Tech,
Living, LivingLight Anthracite,
Matix,
Axolute Tech, Axolute Anthracite, Axolute White
VIMAR
Plana, Plana Silver,
Eikon Gray,
Eikon Next,
Eikon Bianca
GEWISS
Chorus ONE/LUX/FLAT/GEO White
Chorus ONE/LUX/FLAT/GEO Black
Chorus ONE/LUX/FLAT/GEO Titanium

Product Code: 1TITE543
