42 lt pump kit with vacuum switch and automatic vacuum control

VACUUM PUMP KIT with VACUUM SWITCH

with solenoid valve and vacuum gauge

for automatic vacuum control

CHARACTERISTICS:

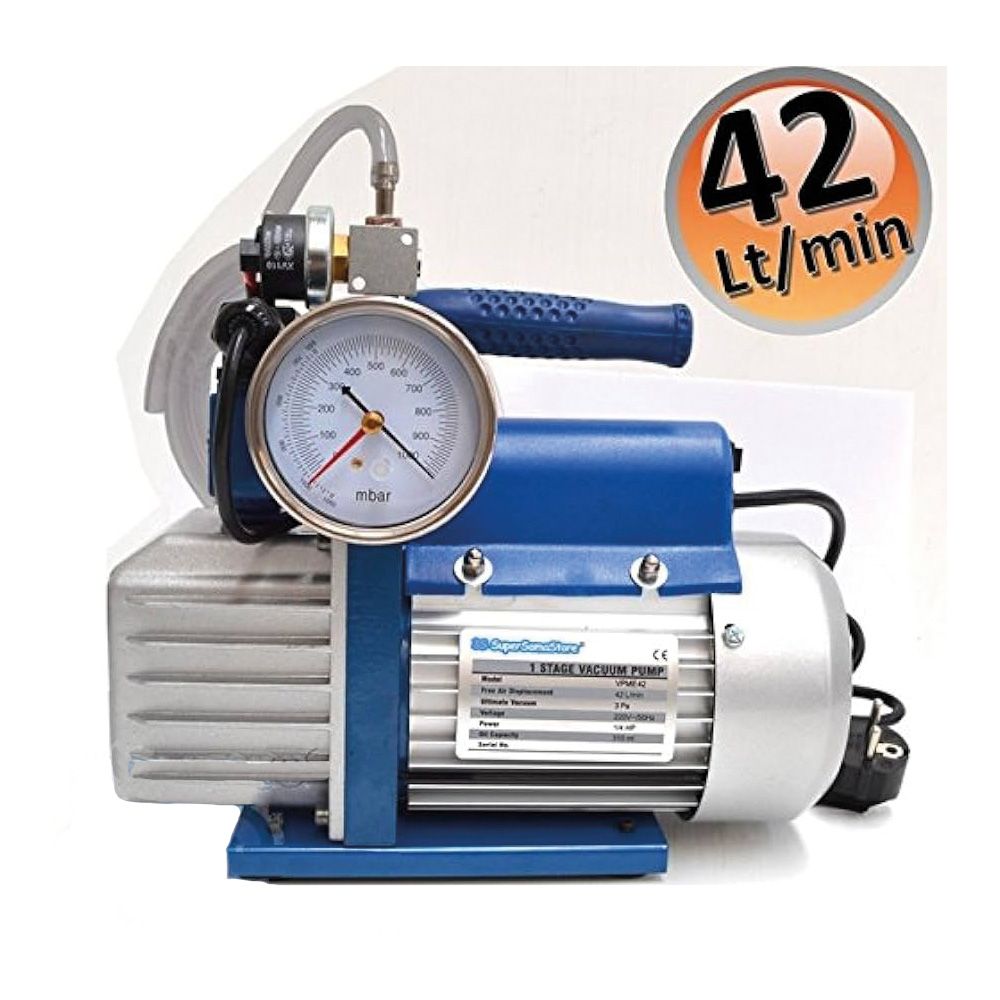

Single-stage vacuum pump 42 lt/min complete with vacuum gauge, solenoid valve and vacuum switch.

It allows you to automatically adjust the vacuum level you want to achieve and maintain.

The kit includes:

- 42 lt/min vacuum pump with vacuum gauge and solenoid valve

- 150-1000 mbar regulation vacuum switch with adjustment screw

- 2 m of vinyl tubing D. 6/9 mm (internal/external)

- Hose connection on the pump

VACUUM PUMP:

• INSTRUCTIONS IN ITALIAN
• SINGLE STAGE MODEL 42 LITERS PER MINUTE
• EQUIPPED WITH VACUUM GAUGE TO DISPLAY VACUUM OPERATION
• EQUIPPED WITH A SOLENOID VALVE TO PREVENT OIL RETURN IN THE EVENT OF AN ACCIDENTAL BLACKOUT.
• EQUIPPED WITH ON-OFF SWITCH
• OIL LEVEL INDICATOR
• 1 PACK OF OIL INCLUDED
• POWER CORD WITH SHUKO PLUG
• ERGONOMIC CARRYING HANDLE

TECHNICAL DATA:

• SINGLE-STAGE MODEL
• SUCTION CAPACITY IN LITERS PER MINUTE 42
• MOTOR POWER 1/4 HP
• POWER SUPPLY 220 V - 50Hz
• FINAL VOID 3 Pa
• OIL IN THE PUMP 310 ML.
• DIMENSIONS 290X160X240 (mm)
• WEIGHT 6.70 KG
• 1/4' SAE CONNECTION
• CE CERTIFIED

Product Code: KT.PW42
