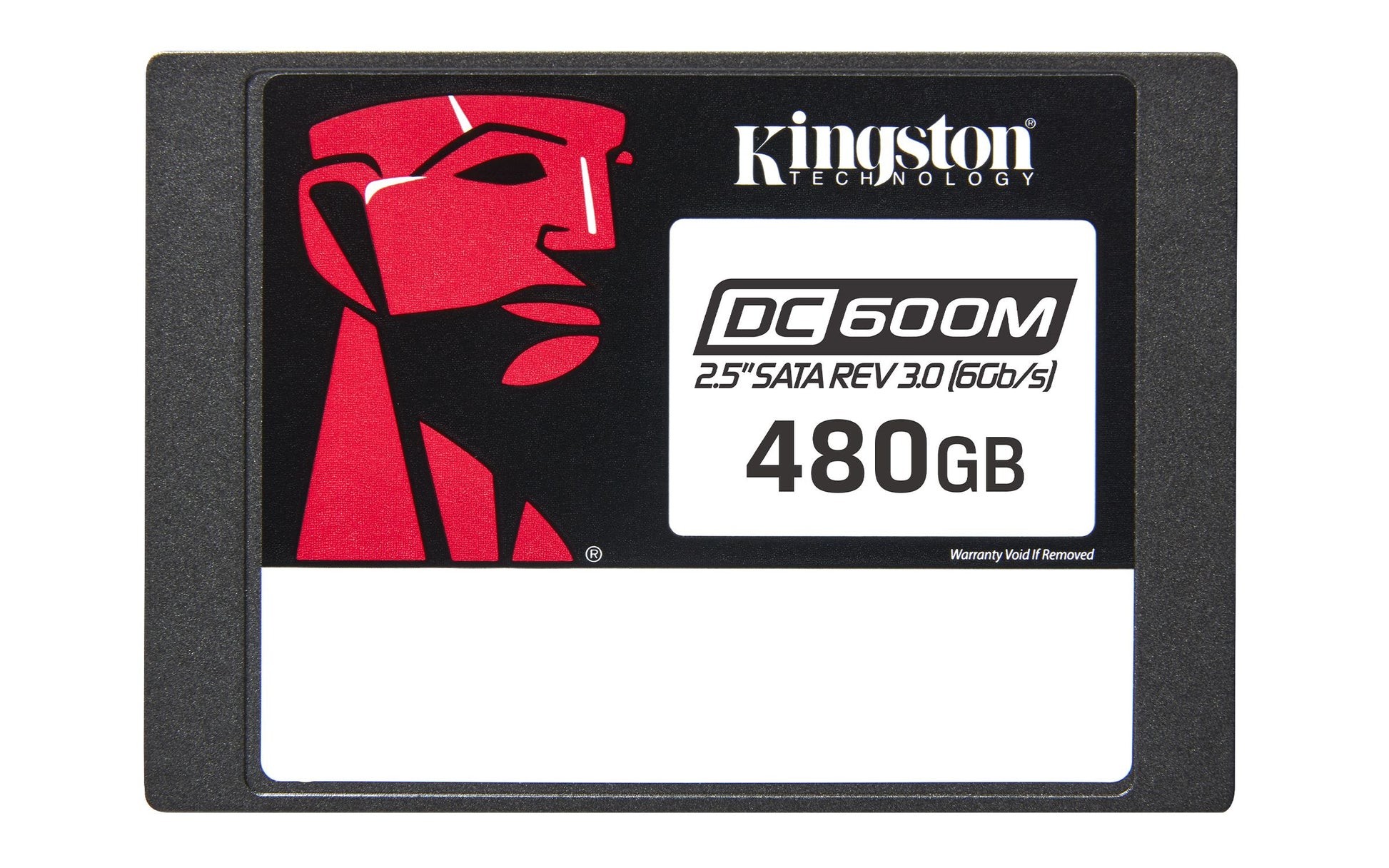

Kingston Technology Drive DC600M 2.5" 480G Enterprise-Class SATA SSD (Mixed-Use)

SATA 3.0 6Gbps interface for mixed workloads in server environments
Kingston's DC600M and DC600ME are data center-grade SATA 3.0 Gen 4 6Gbps SSDs using 3D TLC NAND designed for mixed server workloads. Both are suitable for a wide range of server applications and offer built-in capacitor protection against sudden power loss. The DC600M and DC600ME are designed to protect data from unexpected power loss and ensure the drive reinitializes the next time the system is powered on. They are engineered for low latency and consistent IO performance for system integrators, hyperscale data centers, and cloud service providers.

The DC600ME version is equipped with AES 256-bit encryption and supports the TCG OPAL 2.0 security standard.

Capacities range from 480GB to 7.68TB*, to meet any data storage needs.

Designed specifically for data centers
Optimized to meet the needs of RAID Server applications, with low latencies and consistent, consistent IO as the basic criteria.

Hardware-based power failure protection
Power failure capacitors protect user data from unexpected power outages or interruptions and improve performance.

Offers excellent Quality of Service (QoS)**
Optimized performance predictability to ensure compliance with Service Level Agreements (SLAs).

AES 256-bit encryption with DC600ME
Maximum protection for sensitive data, with hardware-based AES 256-bit encryption and TCG Opal 2.0 security standards with DC600ME.

Capacity up to 7.68TB
Upgrade and management options with maximum capacity up to 7.68TB.*

Kingston Technology DC600M Enterprise-Class SATA SSD (Mixed-Use) 2.5" 480G. SSD Capacity: 480 GB, SSD Size: 2.5", Read Speed: 560 MB/s, Write Speed: 470 MB/s, Data Transfer Speed: 6 Gbit/s, Component for: Server/Workstation

SSD capacity

480 GB

SSD size

2.5"

Interface

Serial ATA III

Memory type

3D TLC NAND

Component for

Server/workstation

hardware encryption

No

Expected workload

Mixed Use (MU)

Data transfer speed

6 Gbit/s

Reading speed

560 MB/s

Writing speed

470 MB/s

Random Read (4KB)

94000 IOPS (Input/Output Operations Per Second)

Random write (4KB)

41000 IOPS (Input/Output Operations Per Second)

Read latency

200 µs

Write latency

30 µs

Hot-Plug Support

Yes

H/W PLP Function

Yes

Mean Time Between Failures (MTBF)

2000000 h

Classification by TBW

876

Terms of Use

Server/Enterprise

Power consumption (reading)

1.6 W

Power consumption (writing)

3.6 W

Energy consumption (average)

1.45 W

Power consumption (idle)

1.3 W

Length

69.8 mm

Depth

100.1 mm

Height

7 mm

Weight

66 g

Packaging width

129.5 mm

Packaging depth

9.14 mm

Packaging height

184.2 mm

Packaging weight

88.19 g

Operating temperature range

0 - 70 °C

Temperature range

-40 - 85 °C

Operating vibration

2.17 G

Non-operation vibration

20 G

Country of origin

China, Taiwan

Main box width

135.9 mm

Length of the main carton

203.2 mm

Main box height

69.8 mm

Weight of the master carton

959.95 g

Quantity per master carton

10 pcs
