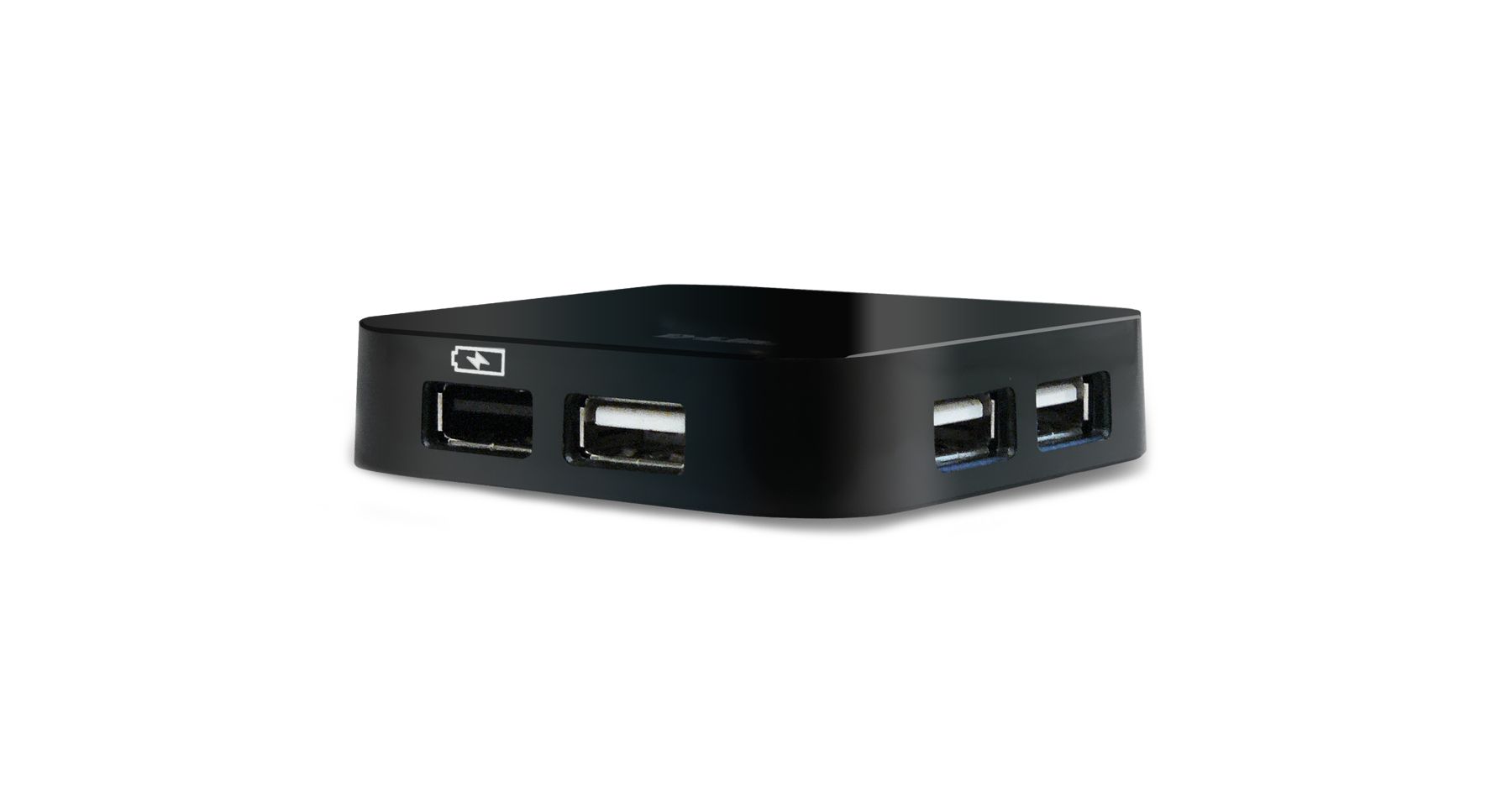

D-Link DUB-H4 480 Mbit/s

The DUB-H4 is a 4-port hub that uses the new high-speed USB 2.0 technology to connect and share multiple peripherals to your computer. This hub, which can be used in both Windows and Mac environments, is designed to increase the number of USB ports available on your computer and connect mice, keyboards, external CD-R/CDRW drives, external hard drives, webcams, and all those devices and peripherals with a high-speed USB 2.0 interface.

Connection

The DUB-H4 hub is designed to quickly and easily connect up to 4 Type 'A' ports for connecting USB peripherals and one Type 'B' port to your computer or another USB hub for daisy-chaining all other USB peripherals. Automatically configurable without any operation during installation, the DUB-H4 can operate with both Microsoft and Apple Macintosh operating systems.

Compatibility and scalability

The DUB-H4 is certified according to USB 2.0 standards and is fully backward compatible with the previous standard and products designed for USB 1.1. This compatibility ensures maximum scalability when connecting new USB peripherals to your computer. All peripherals connected to this card's ports are automatically recognized. The hub will therefore be able to support both low-speed (12Mbps) and high-speed (480Mbps) peripherals on each individual port.

Installation

Diagnostic LEDs on the device allow you to view the status of the peripherals connected to the hub. The DUB-H4 package also includes a USB 2.0 'A' to 'B' cable for connecting to your computer and an external power supply.

Fast-charge

This hub has a “Fast-Charge” USB port that provides a higher current than all the others (1.2A) when in “Fast Charge” mode. This makes it perfect for quickly charging all those USB devices with batteries such as cell phones or tablets like the iPad.

D-Link DUB-H4. Hub interfaces: USB 2.0. Data transfer rate: 480 Mbit/s, Certification: FCC CE C-Tick. Input voltage: 5 V. Supported Windows operating systems: Windows 2000, Windows 2000 Professional, Windows 98, Windows 98SE, Windows ME, Windows XP Home,..., Mac operating system compatibility: Mac OS X 10.1 Puma, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X.... Width: 63 mm, Depth: 104 mm, Height: 29 mm

Number of doors

4

Hub interfaces

USB 2.0

Number of USB 2.0 ports

5

Integrated card reader

No

DC-in jack

Yes

Data transfer speed

480 Mbit/s

LED indicators

Yes

Plug & Play

Yes

Certification

FCC THERE IS C-Tick

Input voltage

5 V

Supported Windows operating system

Windows 2000, Windows 2000 Professional, Windows 98, Windows 98SE, Windows ME, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Mac operating system compatibility

Mac OS

Length

63 mm

Depth

104 mm

Height

29 mm

Packaging width

105 mm

Packaging depth

160 mm

Packaging height

94 mm

Packaging weight

378 g

Cables included

USB

Gross pallet weight (air)

265.9 kg

Number of cartons per pallet (air)

30 pcs

Quantity per pallet (air)

600 pcs

Pallet height (air)

136 cm

Gross weight of pallet (sea)

365 kg

Number of cartons per pallet (sea)

42 pcs

Quantity per pallet (sea)

840 pcs

Pallet height (sea)

185 cm

Pallet width

110 cm

Pallet length

120 cm

Shipping carton width

33.2 cm

Shipping carton length

49 cm

Harmonized System Code (HS)

84719000

Shipping carton height

24.4 cm

Shipping carton weight

8.23 kg

Quantity of shipping carton

20 pcs

Net weight of shipping carton

4 kg
