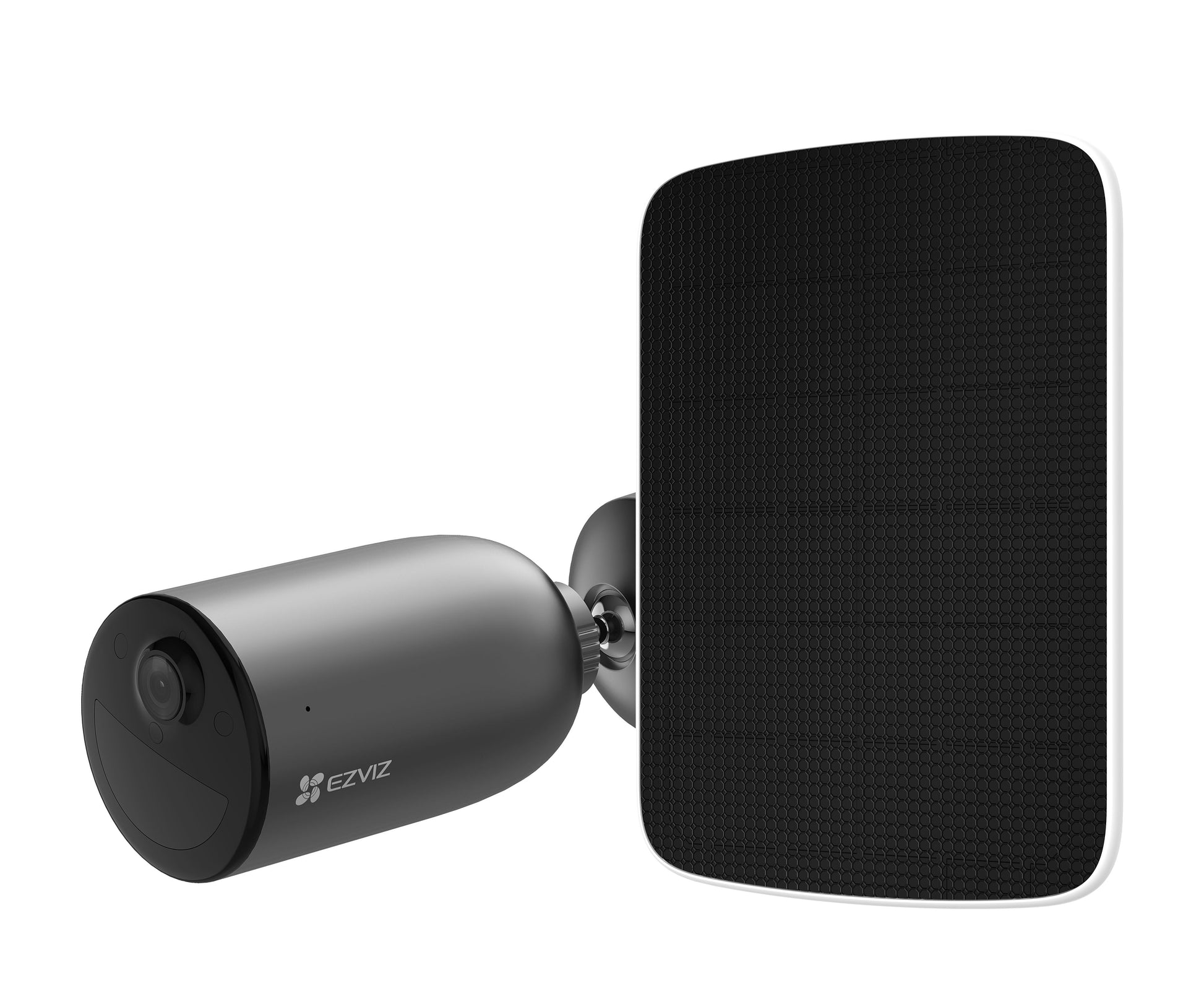

EZVIZ EB3 (AOV Version) Bullet (shape) Outdoor IP Security Camera 2304 x 1296 Pixel Ceiling/Wall

EZVIZ EB3 (AOV Version). Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wireless. Mounting type: Ceiling/wall, Product colour: Black, Form factor: Bullet (shape). Lens viewing angle, horizontal: 108°, Lens viewing angle, vertical: 56°, Lens viewing angle, diagonal: 130°. Sensor type: CMOS, Optical sensor size: 25.4/2.8 mm (1/2.8"). Fixed focal length: 2.8 mm

Type

IP Security Camera

Placement supported

External

Connection technology

Wireless

Day/Night Mode

Yes

Infrared (IR) cut-off filter

Yes

Mounting type

Ceiling/Wall

Product color

Black

Form factor

Bullet (shape)

Protection functions

Waterproof

International Protection Code (IP)

IP65

Min. illumination

0 lx

Lens viewing angle, horizontal

108°

Lens viewing angle, vertical

56°

Lens viewing angle, diagonal

130°

Sensor type

CMOS

Number of sensors

1

Optical sensor dimensions

25.4 / 2.8 mm (1 / 2.8")

Progressive scan

Yes

Number of lenses

1

Maximum opening

1.6

Fixed focal length

2.8 mm

Night vision

Yes

Night vision distance

15 m

Color night vision distance

15 m

LED type

IR

Maximum resolution

2304 x 1296 pixels

Total megapixels

3 MP

Supported video formats

H.264, H.265

Video compression formats

H.264, H.265

Supported graphics resolutions

1920 x 1080 (HD 1080), 2304 x 1296

Supported video modes

1080p, 1296p

Video recording

Yes

Frame rate

15 fps

Noise reduction

Yes

Noise reduction technology

3D Noise Reduction

Transmission speed

1.5 Mbps

Audio system

2-way

Ethernet LAN connection

No

Wi-Fi

Yes

Bluetooth

No

Wi-Fi Standard

802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)

Wireless LAN data transfer rate (max)

114 Mbit/s

Frequency range

20 MHz

Frequency band

2.4 - 2.4835 GHz

Integrated hard drive

No

Integrated card reader

Yes

Types of memory cards

MicroSD (TransFlash)

Expandable memory up to

512 GB

USB port

Yes

Password protection

Yes

Video motion recognition

Yes

Supported security algorithms

WPA-PSK, WPA2-PSK, WPA3-Personal

Anti-flickering

Yes

Heartbeat

Yes

Digital watermark

Yes

Supported Cloud Services

EZVIZ Cloud

Power supply type

Battery, DC, Solar

Power consumption (max)

10 W

DC Volts Output

5

DC Output Amps

2 A

Battery capacity

5200 mAh

Operating temperature range

-20 - 50 °C

Operating humidity range

0 - 95%

Length

63 mm

Height

63 mm

Length

153 mm

Weight

222.7 g

Packaging width

103 mm

Packaging depth

103 mm

Packaging height

186 mm

Packaging weight

569 g

Certificates of conformity

CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA, WEEE

number of cameras

1

Assembly kit

Yes

Mounting brackets included

Yes

Screws included

Yes

Drilling template included

Yes

Battery included

Yes

Quick Guide

Yes
