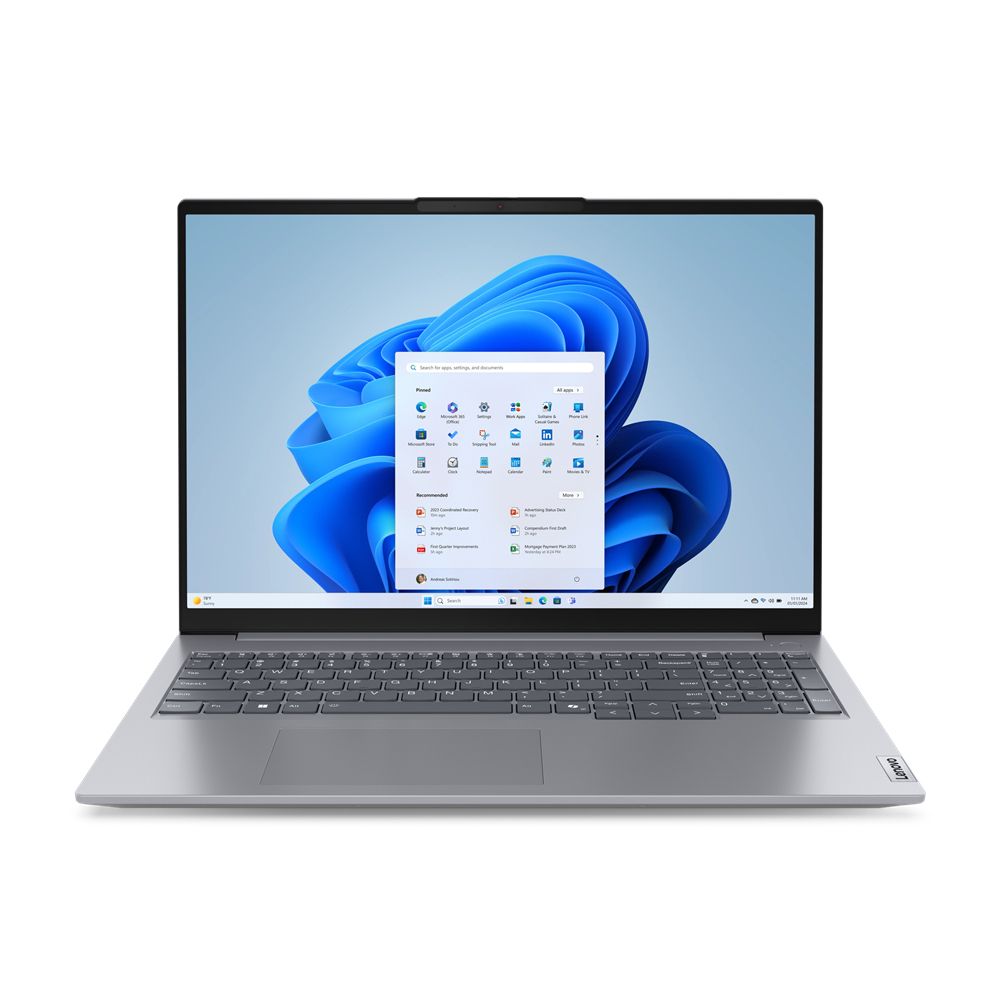

Lenovo ThinkBook 16 G7 IML Intel Core Ultra 7 155H Notebook 40.6 cm (16") WUXGA 16 GB LPDDR5-SDRAM 512 GB SSD Wi-Fi

Redefined Mobility at Work — Peak Performance & Power
- Huge 16" SMB laptop with AI-accelerated Intel® Core™ Ultra processors
- Speedy response time, all-day battery life, & instant wake with Intel Evo™ Edition
- Includes numeric pad for convenient data entry & number crunching
- Enables seamless video calls with rich visuals & noise-canceling audio
- Ideal for demanding tasks like data analysis, financial modeling, and video conferencing


Lenovo ThinkBook 16 G7 IML. Product type: Notebook, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 155H. Diagonal display diagonal: 40.6 cm (16"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Installed memory: 16 GB, Internal memory type: LPDDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics adapter model: Intel Arc Graphics. Operating system installed: Windows 11 Pro. Product colour: Grey. Weight: 1.7 kg

Product type

Laptop

Product color

Grey

Form factor

Clamshell

Color name

Arctic Grey

Body material

Polycarbonate (PC), Acrylonitrile butadiene styrene (ABS)

Screen diagonal size

40.6 cm (16")

Display resolution

1920 x 1200 pixels

Touch screen

No

HD typology

WUXGA

Panel type

IPS

LED backlight

Yes

Native aspect ratio

4.10pm

Anti-glare screen

Yes

Screen brightness

300 cd/m²

RGB color space

NTSC

Color range

45%

Maximum refresh time

60 Hz

Contrast ratio

1000:1

Processor family

Intel Core Ultra 7

Processor manufacturer

Intel

Processor model

155H

Processor generation

Intel Core Ultra (1 Series)

Number of processor cores

16

Maximum turbo processor frequency

4.8 GHz

Performance Core

6

Efficient cores

8

Processor Turbo Frequency Maximum Performance-core

4.8 GHz

Efficient-core Processor Maximum Turbo Frequency

3.8 GHz

Performance Core Base Frequency

1.4 GHz

Efficient core base frequency

0.9 GHz

Processor cache

24 MB

Processor cache type

Smart cache

Base processor power

28 W

Maximum turbo power

115 W

Neural Processing Unit (NPU)

Intel AI Boost

NPU Maximum Frequency

1.4 GHz

Sparsity support

Yes

Windows Studio Effects Support

Yes

Support for AI data types on the NPU

FP16, FP32, Int8

AI software frameworks supported by the NPU

DirectML, ONNX RT, OpenVINO, Windows ML

Installed RAM

16 GB

Maximum RAM supported

64 GB

RAM Type

LPDDR5-SDRAM

Memory speed

5600 MHz

Memory form factor

SO-DIMM

Memory structure

1 x 16 GB

Memory slot

2x SO-DIMM

Memory channels

Dual channel

Total storage capacity

512 GB

Memory support

SSD

Optical drive type

No

Total SSD capacity

512 GB

Number of SSDs installed

1

SSD capacity

512 GB

Solid State Drive (SSD) Interface

PCI Express 4.0

NVMe

Yes

SSD size

M.2

Integrated card reader

Yes

Types of memory cards

SD

Integrated graphics card

Yes

Separate graphics card adapter

No

Dedicated graphics card

Not available

Integrated graphics card model

Intel Arc Graphics

Integrated GPU manufacturer

Intel

Integrated graphics adapter family

Intel Arc Graphics

Audio chip

Realtek ALC3287

Audio system

Dolby Audio

Number of built-in speakers

2

Speaker power

2 W

Built-in microphone

Yes

Number of microphones

2

Front camera

Yes

Front camera resolution

1920 x 1080 pixels

Front camera HD type

Full HD

Infrared (IR) camera

Yes

Camera for private life

Yes

Type of privacy

Privacy protection shutter

Mobile network connection

No

Standard Wi-Fi

Wi-Fi 6E (802.11ax)

Wi-Fi Standard

Wi-Fi 6E (802.11ax)

Antenna type

2x2

Ethernet LAN connection

Yes

Ethernet LAN Transfer Speed

100,1000 Mbit/s

Bluetooth

Yes

Bluetooth version

5.3

WWAN

Not installed

Number of USB 2.0 ports

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

Quantity of HDMI ports

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

1

Ethernet LAN ports (RJ-45)

1

HDMI version

2.1

Number of Thunderbolt 4 ports

1

Intel® Thunderbolt 4

Yes

Microphone/headphone combo jack

Yes

USB Type-C DisplayPort Alternate Mode

Yes

USB Sleep-and-Charge

Yes

USB ports Sleep-and-Charge

1

Motherboard chipset

Intel SoC

Numeric keypad

Yes

Pointing device

Touchpad

backlit keyboard

Yes

Water resistant

Yes

Keyboard language

Italian

Operating system included

Windows 11 Pro

Operating system architecture

64-bit

Operating system language

English, ITA

Trial software

Office

Software provided

Office Trial

Battery capacity

71 Wh

Battery technology

Lithium Polymers (LiPo)

Battery life

11.05 am

Continuous video playback

23.83 h

Quick charge

Yes

AC Power Dissipation Adapter

100 W

AC frequency adapter

50/60 Hz

AC input voltage adapter

100 - 240 V

USB power supply

Yes

Cable lock

Yes

Cable lock slot type

Kensington

Fingerprint reader

Yes

Windows Hello

Yes

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

Password protection

Yes

Password protection

HDD, On, Supervisor

Operating temperature range

5 - 35 °C

Temperature range

5 - 43 °C

Operating humidity range

8 - 95%

Humidity

5 - 95%

Maximum sending altitude

3048 m

Certificates of conformity

RoHS

Certification

ErP Lot 6 ErP Lot 26 TCO Certified 9.0 MIL-STD-810H

Sustainability certificates

TCO, ENERGY STAR, EPEAT Gold

Weight

1.7 kg

Length

356 mm

Depth

253.5 mm

Height

17.5 mm
