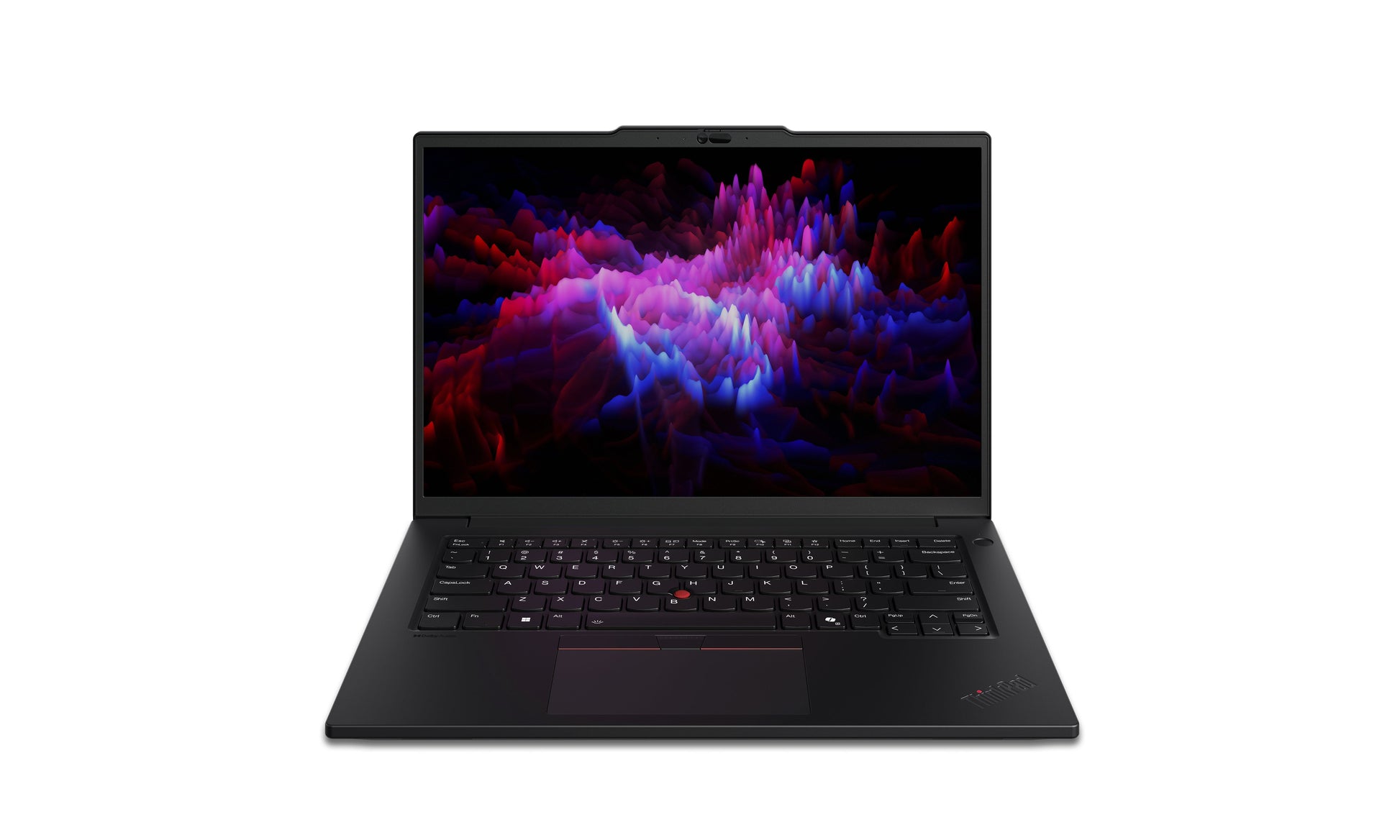

Lenovo ThinkPad P14s Gen 5 (Intel) Intel Core Ultra 7 155H Notebook 36.8 cm (14.5") WUXGA 32 GB DDR5-SDRAM 1 TB SSD

Ultra-powerful performance always with you
- Lightweight, energy-efficient 14.5" laptop with Intel® Core™ Ultra performance
- Responsive memory and smooth data transfer enable effortless workflow management
- Productivity is accelerated by AI for seamless multitasking and collaboration anywhere
- Certifications from independent software vendors (ISVs) such as Altair®, ANSYS®, Barco®


Lenovo ThinkPad P14s Gen 5 (Intel). Product type: Notebook, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 155H. Diagonal display diagonal: 36.8 cm (14.5"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Installed memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics adapter model: Intel Arc Graphics, Discrete graphics adapter model: NVIDIA RTX 500 Ada. Operating system installed: Windows 11 Pro. Product colour: Black

Product type

Laptop

Product color

Black

Form factor

Clamshell

Color name

Black

Body material

Aluminum

Screen diagonal size

36.8 cm (14.5")

Display resolution

1920 x 1200 pixels

Touch screen

No

HD typology

WUXGA

Panel type

IPS

LED backlight

Yes

Native aspect ratio

4.10pm

Anti-glare screen

Yes

Screen brightness

300 cd/m²

RGB color space

NTSC

Color range

45%

Maximum refresh time

60 Hz

Contrast ratio

800:1

Processor family

Intel Core Ultra 7

Processor manufacturer

Intel

Processor model

155H

Processor generation

Intel Core Ultra (1 Series)

Number of processor cores

16

Number of processor threads

22

Maximum turbo processor frequency

4.8 GHz

Performance Core

6

Efficient cores

8

Low energy efficiency core

2

Processor Turbo Frequency Maximum Performance-core

4.8 GHz

Efficient-core Processor Maximum Turbo Frequency

3.8 GHz

Maximum turbo frequency of the low power core

2.5 GHz

Performance Core Base Frequency

1.4 GHz

Efficient core base frequency

0.9 GHz

Low power efficiency core base frequency

700 MHz

Processor cache

24 MB

Processor cache type

Smart cache

Base processor power

28 W

Maximum turbo power

115 W

Neural Processing Unit (NPU)

Intel AI Boost

NPU Maximum Frequency

1.4 GHz

Sparsity support

Yes

Windows Studio Effects Support

Yes

Support for AI data types on the NPU

FP16, FP32, Int8

NPU-supported AI software frameworks

DirectML, ONNX RT, OpenVINO, Windows ML

Installed RAM

32 GB

Maximum RAM supported

96 GB

RAM Type

DDR5 SDRAM

Memory speed

5600 MHz

Memory form factor

SO-DIMM

Memory structure

2 x 16 GB

Memory slot

2x SO-DIMM

Memory channels

Dual channel

Non-ECC

Yes

Total storage capacity

1 TB

Memory support

SSD

Optical drive type

No

Total SSD capacity

1 TB

Number of SSDs installed

1

SSD capacity

1 TB

Solid State Drive (SSD) Interface

PCI Express 4.0

NVMe

Yes

SSD size

M.2

Integrated card reader

No

Integrated graphics card

Yes

Separate graphics card adapter

Yes

Dedicated graphics card

NVIDIA RTX 500 Ada

Integrated graphics card model

Intel Arc Graphics

Discrete GPU Manufacturer

NVIDIA

Dedicated Graphics Memory

4 GB

Graphics card memory type

GDDR6

Integrated GPU manufacturer

Intel

Integrated graphics adapter family

Intel Arc Graphics

Audio chip

Realtek ALC3287

Audio system

Dolby Audio

Number of built-in speakers

2

Speaker power

2 W

Built-in microphone

Yes

Number of microphones

2

Front camera

Yes

Front camera resolution (numeric)

5 MP

Infrared (IR) camera

Yes

Camera for private life

Yes

Type of privacy

Privacy protection shutter

Mobile network connection

No

Standard Wi-Fi

Wi-Fi 6E (802.11ax)

Wi-Fi Standard

Wi-Fi 6E (802.11ax)

Antenna type

2x2

WLAN controller device model

Intel Wi-Fi 6E AX211

WLAN controller manufacturer

Intel

Ethernet LAN connection

Yes

Ethernet LAN Transfer Speed

1000,100 Mbit/s

Bluetooth

Yes

Bluetooth version

5.3

Near Field Communication (NFC)

No

WWAN

Not installed

Number of USB 2.0 ports

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

Quantity of HDMI ports

1

Ethernet LAN ports (RJ-45)

1

HDMI version

2.1

Number of Thunderbolt 4 ports

2

Intel® Thunderbolt 4

Yes

Microphone/headphone combo jack

Yes

USB Type-C DisplayPort Alternate Mode

Yes

USB Sleep-and-Charge

Yes

USB ports Sleep-and-Charge

1

Motherboard chipset

Intel SoC

Numeric keypad

No

Pointing device

ThinkPad UltraNav

backlit keyboard

Yes

Water resistant

Yes

Keyboard language

Italian

Operating system included

Windows 11 Pro

Operating system architecture

64-bit

Operating system language

German, Dutch, English, French, Italian

Battery capacity

75 Wh

Battery technology

Lithium Polymers (LiPo)

Quick charge

Yes

AC Power Dissipation Adapter

135 W

AC frequency adapter

50/60 Hz

AC input voltage adapter

100 - 240 V

USB power supply

Yes

Cable lock

Yes

Cable lock slot type

Kensington

Fingerprint reader

Yes

Smart card reader

Yes

Windows Hello

Yes

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

Password protection

Yes

Password protection

BIOS, On, SSD, Supervisor

Operating temperature range

5 - 35 °C

Temperature range

5 - 43 °C

Operating humidity range

8 - 95%

Humidity

5 - 95%

Maximum sending altitude

3048 m

Certificates of conformity

RoHS

Certification

ENERGY STAR 8.0 EPEAT Gold Registered RoHS compliant TCO Certified 9.0 MIL-STD-810H military test passed Eyesafe® Certified 2.0 TÜV Rheinland® Low Blue Light

Sustainability certificates

ENERGY STAR, EPEAT Gold, TCO

Weight

1.61 kg

Length

325.5 mm

Depth

227.6 mm

Height

18.5 mm

Sustainability Compliance

Yes
