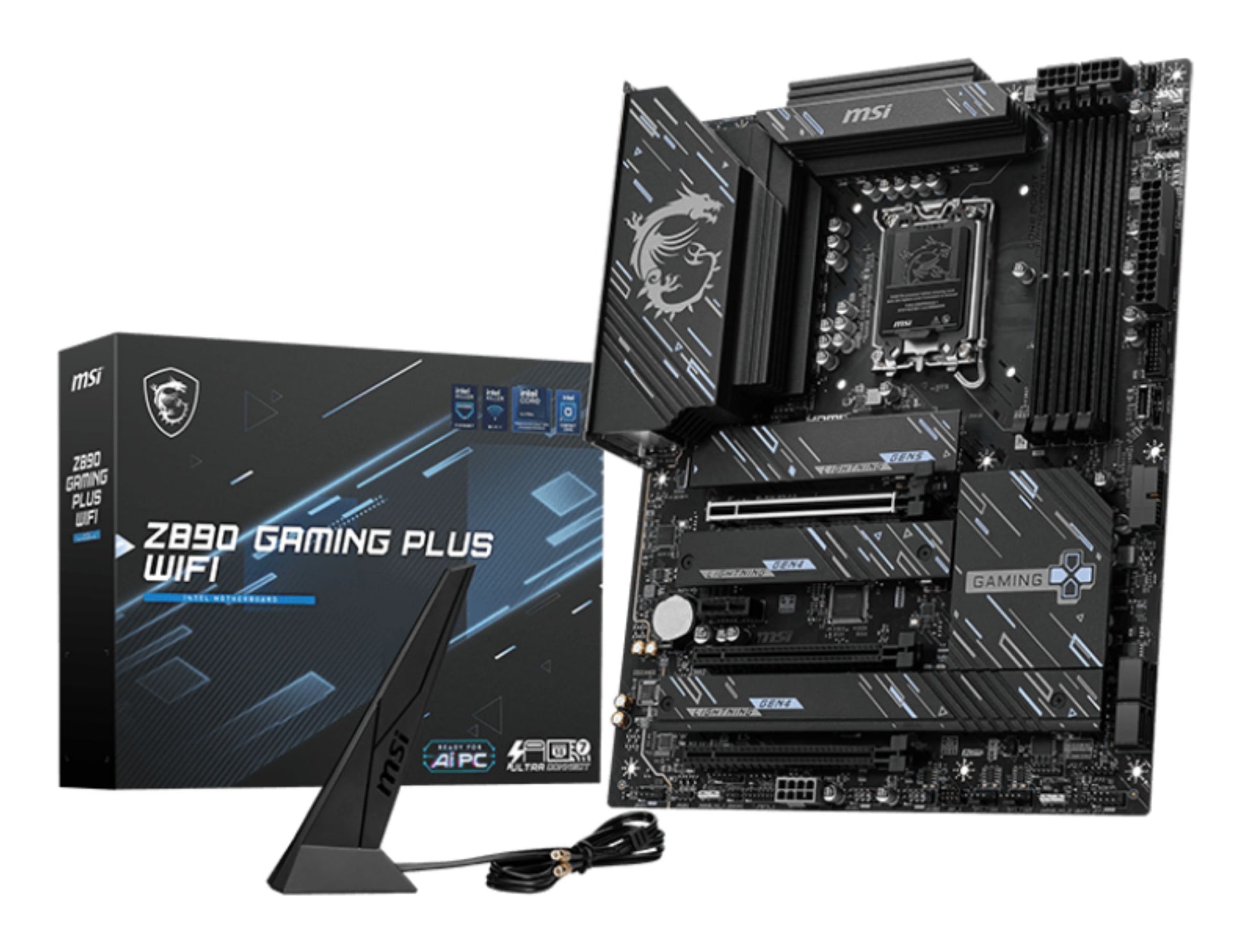

MSI Z890 GAMING PLUS WIFI motherboard Intel Z890 LGA 1851 (Socket V1) ATX

MSI Z890 GAMING PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processors: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum supported RAM: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, Wi-Fi standard: Wi-Fi 7 (802.11b and 802.11b), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

Processor manufacturer

Intel

Processor socket

LGA 1851 (Socket V1)

Compatible Processors

Intel Core Ultra (Series 2)

Socket Supported Processors

Intel LGA1851

Maximum internal memory supported by the processor

256 GB

Supported memory types

DDR5-SDRAM

Number of memory slots

4

Maximum RAM supported

256 GB

memory slot type

DIMM

Memory channels

Dual channel

ECC compatibility

Non-ECC

Supported memory speeds

6400,9200 MHz

Supported memory clock speed (max)

9200 MHz

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

Number of hard drives supported

8

number of supported storage devices

4

RAID support

Yes

RAID Levels

0, 1, 5, 10

Integrated graphics card

No

USB 2.0 connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of SATA connectors

0

Total number of SATA connectors

4

ATX Connector (24-PIN)

Yes

EPS Power Connector (8-Pin)

Yes

Number of EPS power connectors (8 pin)

1

Number of USB 2.0 ports

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

1

Ethernet LAN ports (RJ-45)

1

Quantity of VGA (D-Sub) ports

0

Quantity of HDMI ports

1

Quantity of DVI-D ports

0

HDMI version

2.1

DisplayPort Quantity

1

DisplayPort version

1.4

Thunderbolt Ports Quantity

1

Wi-Fi

Yes

Ethernet LAN connection

Yes

Ethernet Interface Type

5 Gigabit Ethernet

Standard Wi-Fi

Wi-Fi 7 (802.11b and b)

Wi-Fi Standard

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)

WLAN controller device model

Killer Wi-Fi 7 BE1750

Bluetooth

Yes

Bluetooth version

5.4

Component for

PC

Motherboard Form Factor

ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel Z890

Audio system

7.1 channels

Audio chip

Realtek ALC897

Product color

Black

Supported Windows operating system

Windows 11

PCI Express x1 slot (Gen 4.x)

1

PCI Express x4 slot (Gen 4.x)

2

PCI Express x16 slot (Gen 5.x)

1

Number of M.2 slots (M)

4

Length

243.8 mm

Depth

304.8 mm

quantity of mSATA ports

0
