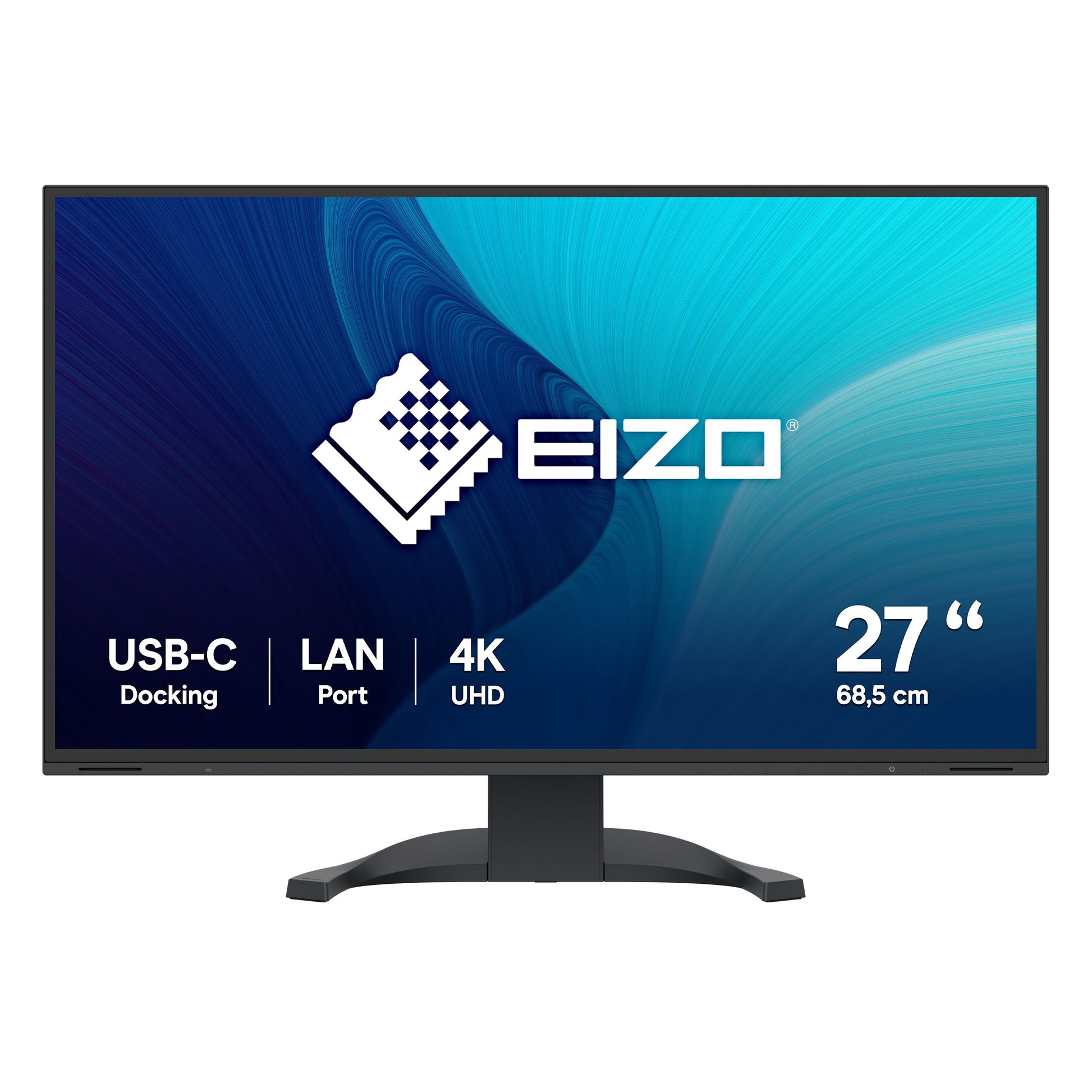

EIZO FlexScan EV2740X-BK LED display 68.6 cm (27") 3840 x 2160 pixels 4K Ultra HD LCD Black

Excellent connectivity and exceptional clarity: the EV2740X monitor stands out for its exceptional performance with a high 4K UHD resolution, integrated USB-C docking function and Power Delivery up to 94 W. The high pixel density of 163 dpi provides extremely precise and detailed reproduction. The USB-C docking function makes the FlexScan EV2740X ideal for business environments or for CAD design applications. The USB-C connection allows for flexible and easy working both in the office and at home and is particularly convenient for notebook and tablet users. A single cable connected to the computer allows for data transfer, audio and video, power and connection to the LAN network. The monitor is also equipped with two HDMI inputs and a DisplayPort and USB-C input. The KVM switch integrated into the USB upstream ports is a practical solution for managing and controlling two PCs using a single keyboard and mouse, reducing cable and peripheral clutter. The convenient Picture-by-Picture feature lets you connect two different video sources to the monitor and view both simultaneously. The monitor is available in black or white, with cables matching the cabinet color.

EIZO FlexScan EV2740X-BK. Diagonal screen size: 68.6 cm (27"), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speakers. Built-in USB hub. VESA mounting, Height adjustment. Product colour: Black

Screen diagonal size

68.6 cm (27")

Display resolution

3840 x 2160 pixels

Native aspect ratio

16:9

Display technology

LCD

Touch screen

No

HD typology

4K Ultra HD

Panel type

IPS

Response time

5 ms

Screen shape

Dish

Contrast ratio

2000:1

Maximum refresh time

60 Hz

Display colors

16.7 million colors

LED backlight

Yes

Backlight type

LED

Display brightness (typical)

350 cd/m²

Anti-glare screen

Yes

Supported graphics resolutions

720 x 400, 1280 x 1024 (SXGA), 3840 x 2160, 800 x 600 (SVGA), 2560 x 1440, 1600 x 1200 (UXGA), 1024 x 768 (XGA), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)

Viewing angle (horizontal)

178°

Viewing angle (vertical)

178°

Dot Pitch

0.155 x 0.155 mm

Pixel Density

163 ppi (dots per inch)

Visible size, horizontal

59.7 cm

Visible dimension, vertical

33.6 cm

Horizontal scan rate

31 - 135 kHz

Vertical scan rate

29 - 61 Hz

Screen diagonal size (cm)

68.5 cm

Standard color gamut

sRGB

sRGB coverage (typical)

100%

NVIDIA G-SYNC

No

AMD FreeSync

No

Flicker-free technology

Yes

Low Blue Light Technology

Yes

Built-in speakers

Yes

Built-in camera

No

Market positioning

Office

Product color

Black

Integrated USB hub

Yes

HDMI

Yes

Speaker / Headphone / Output jack

Yes

USB upstream port type

USB Type-B, USB Type-C

Number of upstream ports

2

Number of upstream USB Type-B ports

1

Number of upstream USB Type-C ports

1

Number of USB Type-A downstream ports

3

Number of USB Type-C downstream ports

1

USB Type-C DisplayPort Alternate Mode

Yes

USB power supply

Yes

USB power supply up to

94 W

Quantity of HDMI ports

2

DisplayPort Quantity

1

DisplayPort version

1.3

Headphone outputs

2

Headphone connection

3.5 mm

Integrated KVM switch

Yes

HDCP

Yes

HDCP version

1.4/2.3

Ethernet LAN connection

Yes

VESA standard mounting

Yes

Cable lock

Yes

Height adjustment

Yes

Panel mounting interface 24/5000 Panel mounting interface

100 x 100 mm

Cable lock slot type

Kensington

Adjustable height (max)

19.5 cm

Rotation

Yes

Rotation angle

0 - 90°

Swivel

Yes

Rotation angle

-90 - 90°

Adjustable inclination

Yes

Inclination

-5 - 35°

On-Screen Display (OSD)

Yes

OSD languages

German, English, ESP, French, ITA, Swedish

Energy efficiency class (SDR)

D

Energy efficiency class (HDR)

Not available

Power consumption (SDR) for 1000 hours

18 kWh

Consumption

16 W

Consumption (standby mode)

0.35 W

Power consumption (max)

186 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Energy efficiency scale

From A to G

European Product Register for Energy Labelling (EPREL) Code

1397122

Width (with stand)

612 mm

Depth (with stand)

242 mm

Height (with stand)

565 mm

Weight (with stand)

8.2 kg

Width (without stand)

612 mm

Depth (without support)

61 mm

Height (without stand)

359 mm

Weight (without stand)

5.5 kg

Cables included

AC, USB Type-C to USB Type-C

Quick Guide

Yes

Sustainability certificates

ENERGY STAR, EPEAT Climate +, EPEAT Gold, TCO

Certificates of conformity

CB, CCC, CE, China RoHS, Federal Communications Commission (FCC), GS mark, ICES, PSE, RCM, RoHS, cTUVus, UKCA, VCCI, WEEE

Certification

CE, UKCA, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307), TCO Certified Generation 10, EPEAT 2018 (US), TÜV/Blue Low Light Content, TÜV/Flicker Free, RCM, cTÜVus, FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC

Sustainability Compliance

Yes
