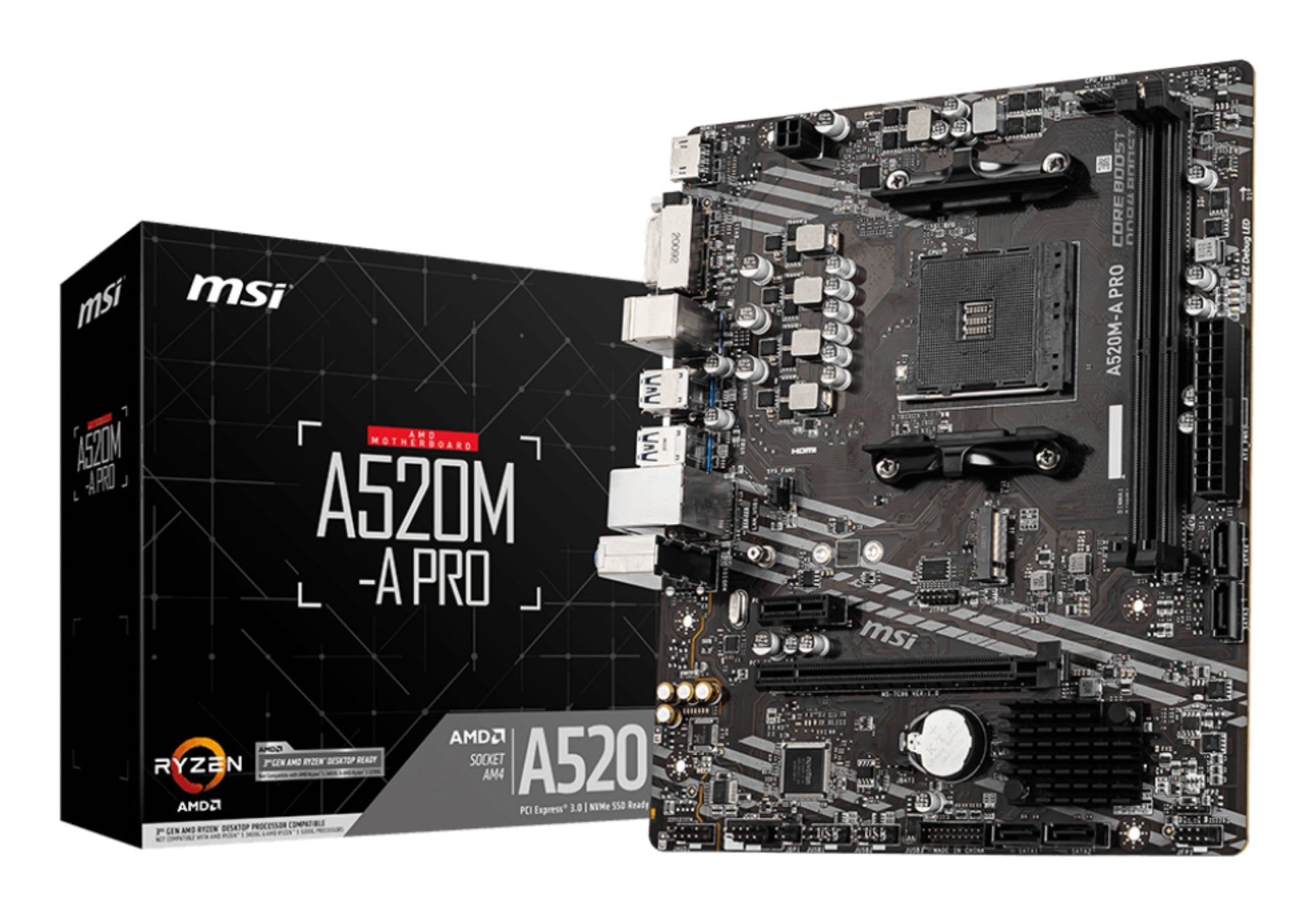

MSI A520M-A PRO motherboard AMD A520 Socket AM4 micro ATX

MSI A520M-A PRO. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processors: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum supported RAM: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 3.0, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H

Processor manufacturer

AMD

Processor socket

Socket AM4

Compatible Processors

AMD Ryzen 3000 Series

Maximum number of SMP processors

1

Supported memory types

DDR4-SDRAM

Number of memory slots

2

Maximum RAM supported

64 GB

memory slot type

DIMM

Memory channels

Dual channel

ECC compatibility

ECC & Non-ECC

Supported memory speeds

1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz

Without buffer

Yes

Supported storage drive interfaces

PCI Express 3.0, SATA

Supported storage drive types

HDD & SSD

Number of hard drives supported

5

RAID support

Yes

RAID Levels

0, 1, 10

Integrated graphics card

No

Maximum resolution

4096 x 2160 pixels

Number of displays supported

2

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of SATA connectors

0

Number of Parallel ATA connectors

0

Front panel audio connector

Yes

Front panel connector

Yes

ATX Connector (24-PIN)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

Frame intrusion connector

Yes

Number of USB 2.0 ports

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

Quantity of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

0

Ethernet LAN ports (RJ-45)

1

Quantity of VGA (D-Sub) ports

0

Quantity of HDMI ports

1

Quantity of DVI-D ports

1

Quantity of eSATA ports

0

PS/2 Ports Quantity

0

Number of IEEE 1394/Firewire ports

0

Headphone outputs

1

Microphone input jack

Yes

Wi-Fi

No

Ethernet LAN connection

Yes

Ethernet Interface Type

Gigabit Ethernet

LAN Controller

Realtek RTL8111H

Component for

PC

Motherboard Form Factor

micro ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD A520

Audio system

7.1 channels

Audio chip

Realtek ALC892

Product color

Black

Number of mounting holes

8

PCI Express x1 slot (Gen 3.x)

1

PCI Express x16 slot (Gen 3.x)

1

Number of M.2 slots (M)

1

Harmonized System Code (HS)

84733020

Length

236 mm

Depth

200 mm

Height

60 mm

quantity of mSATA ports

0

Weight

698 g
