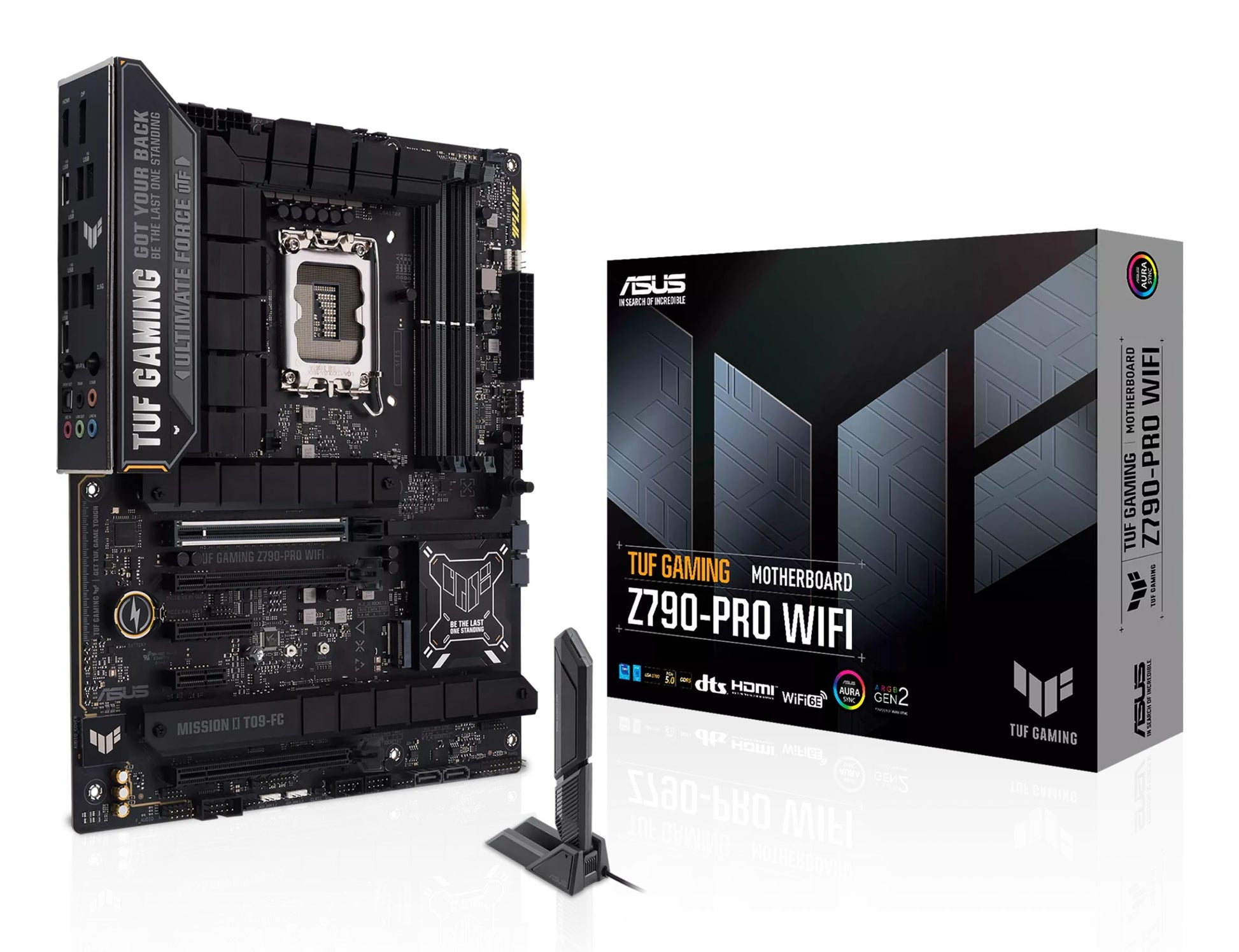

ASUS TUF Gaming Z790-PRO Intel Z790 LGA 1700 ATX

ASUS TUF Gaming Z790-PRO. Processor manufacturer: AMD, Processor socket: LGA 1700, Compatible processors: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum supported RAM: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

Processor manufacturer

AMD

Processor socket

LGA 1700

Compatible Processors

Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold

Socket Supported Processors

LGA 1700

Supported memory types

DDR5-SDRAM

Number of memory slots

4

Maximum RAM supported

192 GB

memory slot type

DIMM

Memory channels

Dual channel

ECC compatibility

Non-ECC

Supported memory speeds

5333,5133,5066,5000,4800,4700,4600,4500,4400,4266,4133,4000,38 66,3733,3600,3466,3400,3333,3200,3000,2933,2800,2666,2400,2133 MHz

Supported memory clock speed (max)

7800 MHz

Without buffer

Yes

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

RAID support

Yes

RAID Levels

0, 1, 5, 10

Parallel processing technology

Not supported

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Connector (24-PIN)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

4

EPS Power Connector (8-Pin)

Yes

Thunderbolt ports

1

Connector with 12V power

Yes

RGB LED connector

Yes

Number of USB 2.0 ports

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

Quantity of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

1

Ethernet LAN ports (RJ-45)

1

Quantity of VGA (D-Sub) ports

0

Quantity of HDMI ports

1

Quantity of DVI-D ports

0

USB 3.2 Gen 2x2 Type-C ports quantity

1

HDMI version

2.1

DisplayPort Quantity

1

DisplayPort version

1.4

Headphone outputs

1

Line input

Yes

Microphone input jack

Yes

S/PDIF output port

Yes

WiFi-AP antenna plug

2

Wi-Fi

Yes

Ethernet LAN connection

Yes

Ethernet Interface Type

2.5 Gigabit Ethernet

Standard Wi-Fi

Wi-Fi 6E (802.11ax)

Wi-Fi Standard

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)

Bluetooth

Yes

Bluetooth version

5.2

Component for

PC

Motherboard Form Factor

ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel Z790

Audio system

7.1 channels

Audio chip

Realtek S1220A

Power supply type

ATX

Supported Windows operating system

Windows 10, Windows 11

PCI Express x1 slot (Gen 3.x)

2

PCI Express x4 slot (Gen 4.x)

1

PCI Express x16 slot (Gen 4.x)

1

PCI Express x16 slot (Gen 5.x)

1

Number of M.2 slots (M)

4

BIOS Type

UEFI AMI

BIOS Memory Size

192 Mbit

CMOS reset button

Yes

Packaging width

340 mm

Packaging depth

275 mm

Packaging height

70 mm

Packaging weight

2.14 kg

Length

305 mm

Depth

244 mm

Cables included

SATA

User Guide

Yes

Drivers included

Yes
