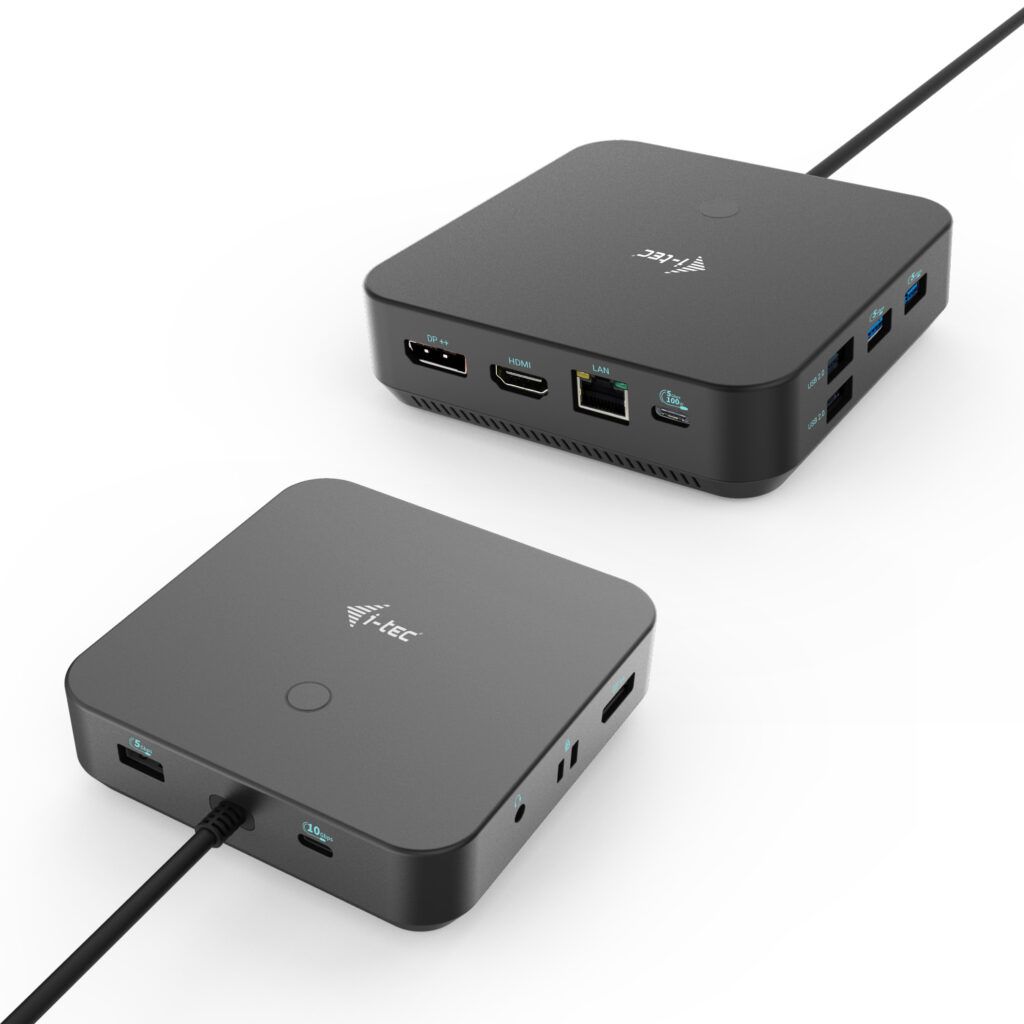

i-tec USB-C HDMI Dual DP Docking Station with Power Delivery 100 W

A high-performance USB-C office dock that supports up to three external 4K monitors. The dock is compatible with any laptop with a USB-C, USB 4, or Thunderbolt 3/4 port. Of course, it supports charging your laptop or tablet at up to 100W.

The built-in latest DP 1.4 DSC protocol also supports 5K/60Hz resolution, which can be enjoyed by professional graphic designers, data analysts, film editors or high-definition video lovers.

The dock can be purchased in two variants:

1. Without the included USB-C charging adapter (product code C31TRIPLE4KDOCKPDPRO)
2. with the included 100W adapter (this variant)
Note: macOS does not support Multi Stream Transport (MST) video transfer technology, which means that when connected to macOS, the same image will be projected on both connected monitors.

- Connect up to three external 4K/30Hz monitors
- Refresh rate up to 360Hz (when connected to a single 1080p monitor)
- Power delivery: up to 100 W
- 1x HDMI, 2x DisplayPort++
- 3x USB 3.1, 1x USB-C 3.2 Gen2 (10 Gbps), and 2x USB 2.0 ports allow you to easily connect your USB devices and peripherals. Gigabit Ethernet RJ-45 provides a reliable, robust, and high-speed Internet connection with 10/100/1000 Mbps support.
- Combined audio and microphone jack on the front panel
- The Kensington lock offers anti-theft protection, especially in shared offices or public areas.
- The docking station's power switch allows for maximum energy saving
- The docking station supports a VESA mount for smart vertical installation behind a VESA-enabled monitor.
- Supports Windows 10, macOS, Android, iPadOS, ChromeOS and Linux.

The dock can be used without a power adapter. The video outputs, LAN (RJ-45), audio/microphone, and both USB 2.0 ports will still work. However, the USB 3.0 ports and the USB-C data port may not work when connecting devices with higher power requirements (e.g., SSDs, especially NVMe drives). In this case, the docking station may shut down. We recommend using the docking station with a power adapter connected to ensure full use of all ports and maximum data transfer speeds. (The adapter is included in the package.)

Note: When connected to an Android device, the dock will only work with the power adapter connected. (Adapter included.)

i-tec USB-C HDMI Dual DP Docking Station with Power Delivery 100 W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C. Ethernet LAN transfer rates: 10, 100, 1000 Mbit/s. Product colour: Black, Data transfer rate: 10 Gbit/s, Maximum refresh rate: 144 Hz. USB cable length: 1 m. Supported mobile operating systems: Android, iOS, Other supported operating systems: ChromeOS

Connection technology

Wired

Host Interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-C

Number of USB 2.0 ports

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

3

Quantity of HDMI ports

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

2

DisplayPort Quantity

2

DisplayPort version

1.4

Microphone/headphone combo jack

Yes

Ethernet LAN connection

Yes

Ethernet LAN ports (RJ-45)

1

Ethernet LAN Transfer Speed

10,100,1000 Mbit/s

Product color

Black

Integrated card reader

No

Data transfer speed

10 Gbit/s

Number of displays supported

3

Maximum refresh time

144 Hz

Cable lock

Yes

Cable lock slot type

Kensington

On/Off Switch

Yes

LED indicators

Yes

USB cable length

1 m

Supported Windows operating system

Yes

Mac operating system compatibility

Yes

Supported Linux operating system

Yes

Supported mobile operating system

Android, iOS

Other supported operating systems

ChromeOS

Operating temperature range

0 - 40 °C

Operating humidity range

10 - 100%

Length

113 mm

Depth

113 mm

Height

31.2 mm

Weight

340 g

AC/DC adapter

No

User Manual

Yes
