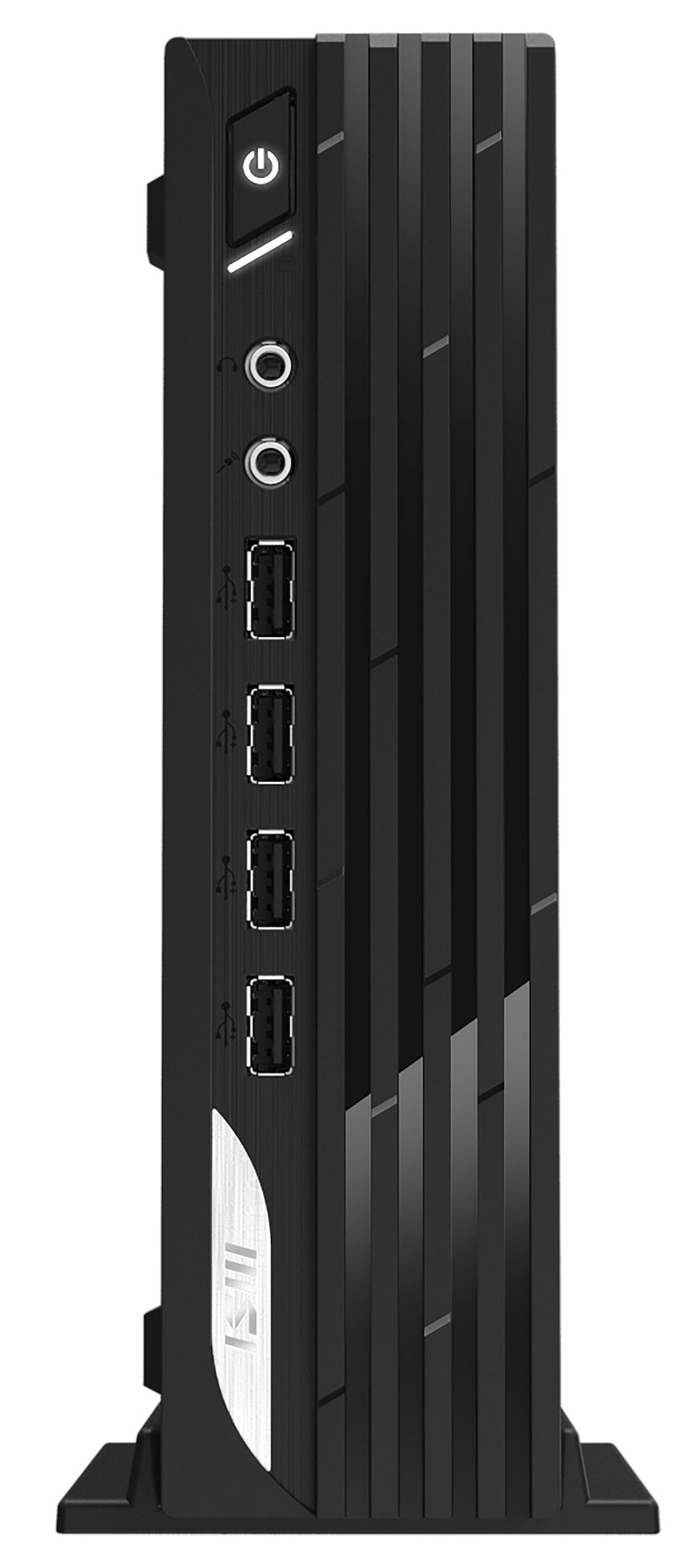

MSI Pro DP21 13M-487EU Intel® Core™ i7 i7-13700 16 GB DDR4-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black

MSI Pro DP21 13M-487EU. Processor family: Intel® Core™ i7, Processor model: i7-13700. Installed RAM: 16 GB, RAM type: DDR4-SDRAM, Memory clock speed: 3200 MHz. Total storage capacity: 512 GB, Storage media: SSD. Integrated graphics adapter model: Intel UHD Graphics 770. Wi-Fi. Operating system installed: Windows 11 Pro. Power supply: 120 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 1.27 kg. Product colour: Black

Processor family

Intel® Core™ i7

Processor manufacturer

Intel

Processor model

i7-13700

Processor generation

13th Generation Intel® Core™ i7

Number of processor cores

16

Number of processor threads

24

Maximum turbo processor frequency

5.2 GHz

Performance Core

8

Efficient cores

8

Processor Turbo Frequency Maximum Performance-core

5.1 GHz

Efficient-core Processor Maximum Turbo Frequency

4.1 GHz

Performance Core Base Frequency

2.1 GHz

Efficient core base frequency

1.5 GHz

Processor cache

30 MB

Processor cache type

Smart cache

Number of processors installed

1

Base processor power

65 W

Maximum turbo power

219 W

Installed RAM

16 GB

Maximum RAM supported

64 GB

RAM Type

DDR4-SDRAM

Memory structure

2 x 8 GB

Memory slot

2x SO-DIMM

Memory speed

3200 MHz

Total storage capacity

512 GB

Optical drive type

No

Memory support

SSD

Total SSD capacity

512 GB

Number of SSDs installed

1

SSD capacity

512 GB

Solid State Drive (SSD) Interface

PCI Express 4.0

NVMe

Yes

SSD size

M.2

Separate graphics card adapter

No

Integrated graphics card

Yes

Dedicated graphics card

Not available

Integrated graphics card model

Intel UHD Graphics 770

Integrated GPU manufacturer

Intel

Integrated graphics adapter family

Intel® UHD Graphics

Ethernet LAN connection

Yes

Wi-Fi

Yes

Standard Wi-Fi

Wi-Fi 6E (802.11ax)

Wi-Fi Standard

Wi-Fi 6E (802.11ax)

WLAN controller manufacturer

Intel

WLAN controller device model

Intel Wi-Fi 6E AX211

Bluetooth

Yes

Bluetooth version

5.3

Number of USB 2.0 ports

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

1

Thunderbolt 3 Ports Quantity

0

Quantity of HDMI ports

1

HDMI version

2.0

DisplayPort Quantity

1

DisplayPort version

1.4

Ethernet LAN ports (RJ-45)

1

Microphone input jack

Yes

Headphone outputs

1

Microphone/headphone combo jack

Yes

Type of houses

Mini PC

Product color

Black

Volume

2.3 L

Placement supported

Horizontal/Vertical

VESA standard mounting

Yes

Product type

Mini PC

Market positioning

Business

Motherboard chipset

Intel H610

Audio chip

Realtek ALC897

Audio system

5.1 channels

Operating system included

Windows 11 Pro

Diet

120 W

Operating temperature range

0 - 35 °C

Temperature range

-20 - 60 °C

Operating humidity range

0 - 85%

Humidity

0 - 90%

Certification

FCC, CB/CE, UL & CUL, VCCI, RCM

Length

204 mm

Depth

208 mm

Height

54.8 mm

Weight

1.27 kg

Packaging width

271 mm

Packaging depth

382 mm

Packaging height

54.8 mm

Packaging weight

2.75 kg

VESA mount included

Yes

Screen included

No
