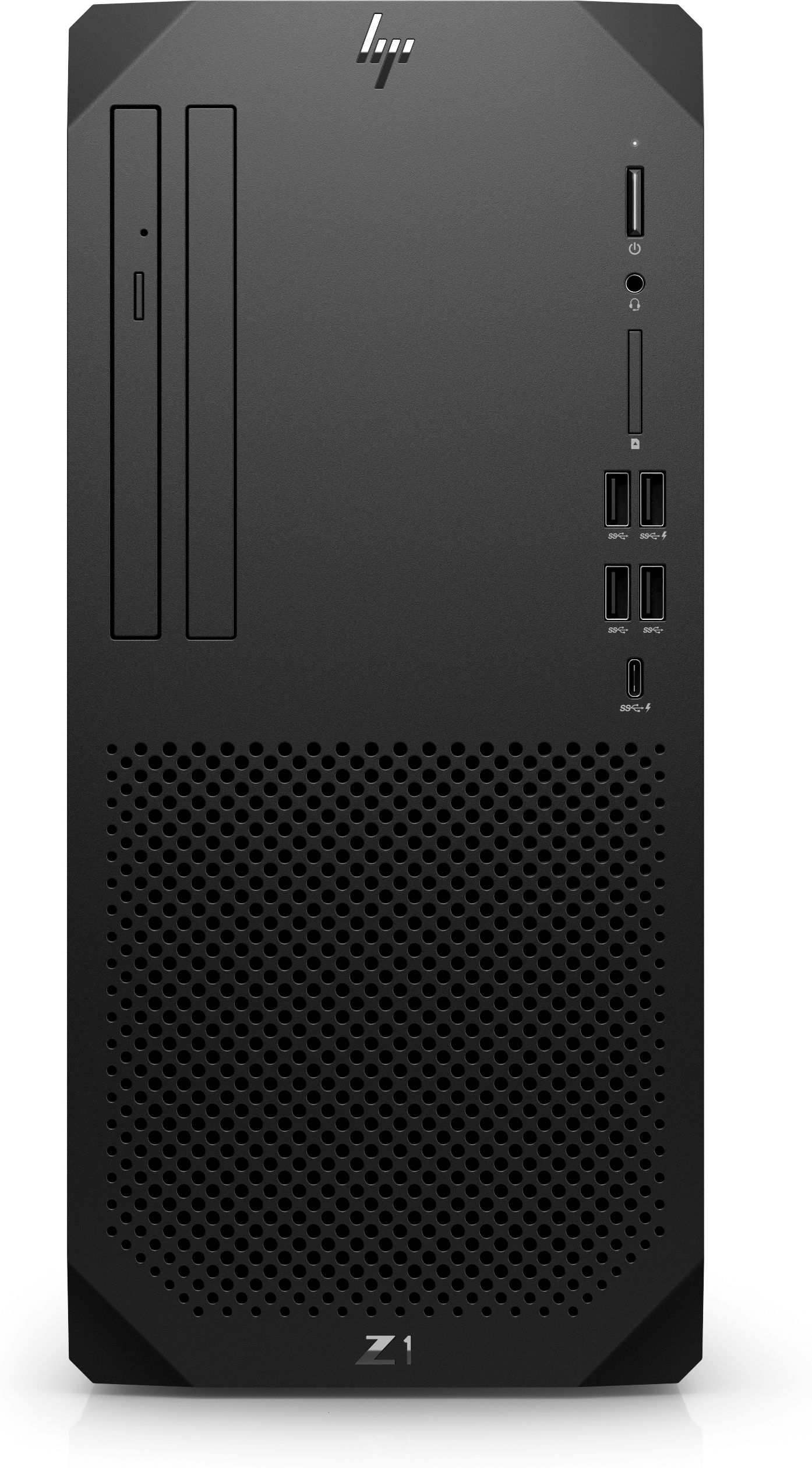

HP Z1 G9 Intel® Core™ i7 i7-13700 32GB DDR5-SDRAM 1TB SSD NVIDIA GeForce RTX 4060 Windows 11 Pro Tower Workstation Black

The most affordable professional Z desktop
A desktop designed for design, editing, and even gaming, offering professional-level performance. From 2D and 3D CAD design to basic VR content creation, you can count on maximum speed and efficiency for your workflows. Go beyond a simple business PC with a desktop certified for professional software applications.

HP Z1 G9. Processor family: Intel® Core™ i7, Processor model: i7-13700. Installed RAM: 32 GB, RAM type: DDR5-SDRAM, Memory clock speed: 4800 MHz. Total storage capacity: 1 TB, Storage media: SSD. Integrated graphics adapter model: Intel UHD Graphics 770, Discrete graphics adapter model: NVIDIA GeForce RTX 4060. Operating system installed: Windows 11 Pro. Power supply: 550 W. Chassis type: Tower. Product type: Workstation. Weight: 5.7 kg. Product colour: Black

Processor family

Intel® Core™ i7

Processor manufacturer

Intel

Processor model

i7-13700

Processor generation

13th Generation Intel® Core™ i7

Number of processor cores

16

Number of processor threads

24

Maximum turbo processor frequency

5.2 GHz

Performance Core

8

Efficient cores

8

Processor Turbo Frequency Maximum Performance-core

5.1 GHz

Efficient-core Processor Maximum Turbo Frequency

4.1 GHz

Performance Core Base Frequency

2.1 GHz

Efficient core base frequency

1.5 GHz

Processor cache

30 MB

Processor cache type

L3

Base processor power

65 W

Maximum turbo power

219 W

Installed RAM

32 GB

Maximum RAM supported

128 GB

RAM Type

DDR5-SDRAM

Memory structure

2 x 16 GB

Memory slot

4x DIMM

Memory speed

4800 MHz

Total storage capacity

1 TB

Optical drive type

No

Memory support

SSD

Number of storage drives installed

1

Total SSD capacity

1 TB

Number of SSDs installed

1

SSD capacity

1 TB

SSD Memory Type

TLC

Solid State Drive (SSD) Interface

PCI Express

NVMe

Yes

Separate graphics card adapter

Yes

Integrated graphics card

Yes

Dedicated graphics card

NVIDIA GeForce RTX 4060

Integrated graphics card model

Intel UHD Graphics 770

Discrete GPU Manufacturer

NVIDIA

Dedicated Graphics Memory

8 GB

Graphics card memory type

GDDR6

Number of dedicated graphics cards

1

Integrated GPU manufacturer

Intel

Integrated graphics adapter family

Intel® UHD Graphics

Ethernet LAN connection

Yes

Wi-Fi

No

Ethernet LAN Transfer Speed

10,1000,100 Mbit/s

Number of USB 2.0 ports

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

7

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

0

Thunderbolt 3 Ports Quantity

0

Quantity of HDMI ports

1

USB 3.2 Gen 2x2 Type-C ports quantity

1

HDMI version

1.4

DisplayPort Quantity

2

DisplayPort version

1.4

Ethernet LAN ports (RJ-45)

1

Line output

Yes

Microphone/headphone combo jack

Yes

PCI Express x1 slot (Gen 3.x)

2

PCI Express x16 slot (Gen 3.x)

1

PCI Express x16 slot (Gen 4.x)

1

Type of houses

Tower

Product color

Black

Placement supported

Vertical

Cable lock

Yes

Year of introduction

2024

Product type

Workstation

Market positioning

Performance

Audio chip

Realtek ALC3205

Password protection

Yes

Password protection

BIOS, Power On, User

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

Operating system included

Windows 11 Pro

Pre-installed software

HP Jumpstart; HP Noise Cancellation Software; HP Support Assistant; Buy Office (sold separately); HP Privacy Settings; HP Desktop Support Utilities; HP Setup Integrated OOBE

Software provided

HP Wolf Pro Security Edition (1 year)

HP JumpStart

Yes

HP Support Assistant

Yes

HP Security Tools

HP Power On Authentication; Power-on password (via BIOS); SATA port disablement (via BIOS); Setup password (via BIOS); Chassis lock and cable lock support; USB enable/disable (via BIOS); Serial port enable/disable (via BIOS); HP Sure Click; Windows Defender; HP Sure Sense; HP Client Security Manager Gen7; HP Sure Start Gen7; HP Sure Run Gen4; HP Sure Recover Gen4; HP Tamper Lock; TPM 2.0 embedded security chip (Common Criteria EAL4+ and FIPS 140-2 Level 2 certified)

HP Management Tools

HP Client Catalog (download); HP Cloud Recovery; HP Driver Packs; HP Management Integration Kit for Microsoft System Center Configuration Management Gen4; HP System Software Manager (download); HP BIOS Configuration Utility (download); HP Image Assistant (download); Ivanti Management Suite (download); HP Client Management Script Library (download)

HP Segment

Business

Diet

550 W

Power supply input voltage

100 - 240 V

Power supply input frequency

50 - 60 Hz

Sustainable technologies and materials

45% post-consumer recycled plastic; 5% closed-loop plastic derived from IT equipment; Bulk packaging available; 80 Plus® Platinum power supplies available; Molded cellulose cushioning inside the box is 100% sustainably sourced and recyclable; Speaker enclosure and system fan contain potential ocean-bound plastic; Contains recycled metal

Length

337 mm

Depth

308 mm

Height

155 mm

Weight

5.7 kg

Packaging width

287 mm

Packaging depth

400 mm

Packaging height

499 mm

Packaging weight

9.24 kg

Mouse included

Yes

Keyboard included

Yes

Screen included

No

General Product Safety Regulation (GPSR) URL

https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true https://kaas.hpcloud.hp.com/pdf-public/pdf_6681828_it-IT-1.pdf

HP GTIN (EAN/UPC)

198122355013

Keyboard type

USB
