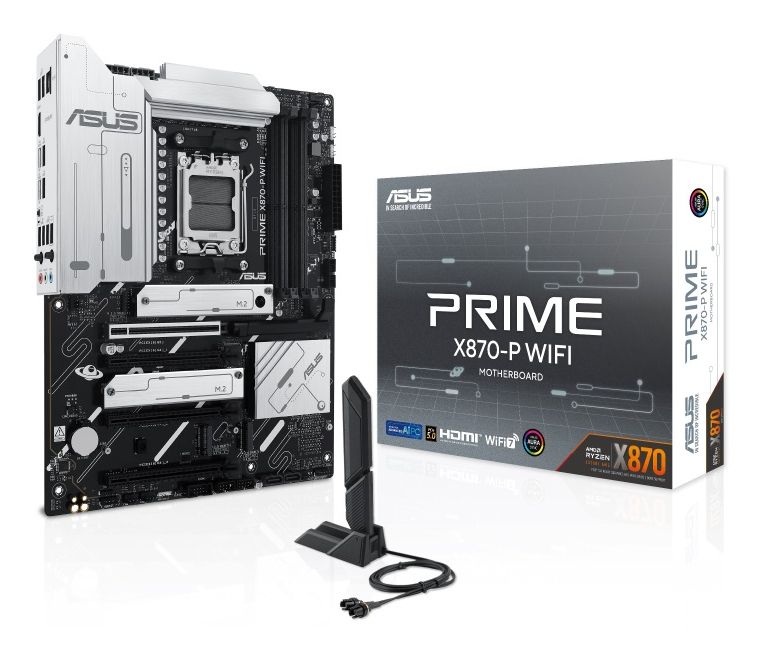

ASUS Prime X870-P WIFI AMD X870 Socket AM5 ATX

ASUS Prime X870-P WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processors: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum supported RAM: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. DisplayPort version: 1.4a. Ethernet interface type: 2.5 Gigabit Ethernet, Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standard: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E...

Processor manufacturer

AMD

Processor socket

Socket AM5

Compatible Processors

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Socket Supported Processors

Socket AM5

Supported memory types

DDR5-SDRAM

Number of memory slots

4

Maximum RAM supported

192 GB

memory slot type

DIMM

Memory channels

Dual channel

ECC compatibility

ECC & Non-ECC

Supported memory clock speed (max)

8000 MHz

Without buffer

Yes

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

Number of hard drives supported

2

number of supported storage devices

6

RAID support

Yes

RAID Levels

0, 1, 5, 10

Parallel processing technology

Not supported

Integrated graphics card

No

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Number of SATA III connectors

2

Number of SATA II connectors

0

Number of SATA connectors

0

Front panel audio connector

Yes

ATX Connector (24-PIN)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

4

EPS Power Connector (8-Pin)

Yes

Number of COM connectors

1

TPM connector

Yes

Connector with 12V power

Yes

RGB LED connector

Yes

Number of USB 2.0 ports

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

0

Ethernet LAN ports (RJ-45)

1

Quantity of VGA (D-Sub) ports

0

Quantity of HDMI ports

1

Quantity of DVI-D ports

0

Number of USB4 Gen 2x2 ports

2

HDMI version

2.1

DisplayPort version

1.4a

Line input

Yes

Microphone input jack

Yes

Wi-Fi

Yes

Ethernet LAN connection

Yes

Ethernet Interface Type

2.5 Gigabit Ethernet

Standard Wi-Fi

Wi-Fi 7 (802.11b and b)

Wi-Fi Standard

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)

Bluetooth

Yes

Bluetooth version

5.4

Component for

PC

Motherboard Form Factor

ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD X870

Audio system

7.1 channels

Product color

Black

Cooling type

Passive

Power supply type

ATX

Supported Windows operating system

Windows 10, Windows 11

PCI Express x16 slot (Gen 4.x)

3

PCI Express x16 slot (Gen 5.x)

1

Number of M.2 slots (M)

4

BIOS Type

UEFI AMI

BIOS Memory Size

256 Mbit

Packaging width

353 mm

Packaging depth

273 mm

Packaging height

68 mm

Packaging weight

1.56 kg

Length

305 mm

Depth

244 mm

Height

48 mm

Cables included

SATA

quantity of mSATA ports

0

Weight

1.56 kg

Back-to-BIOS button

Yes
