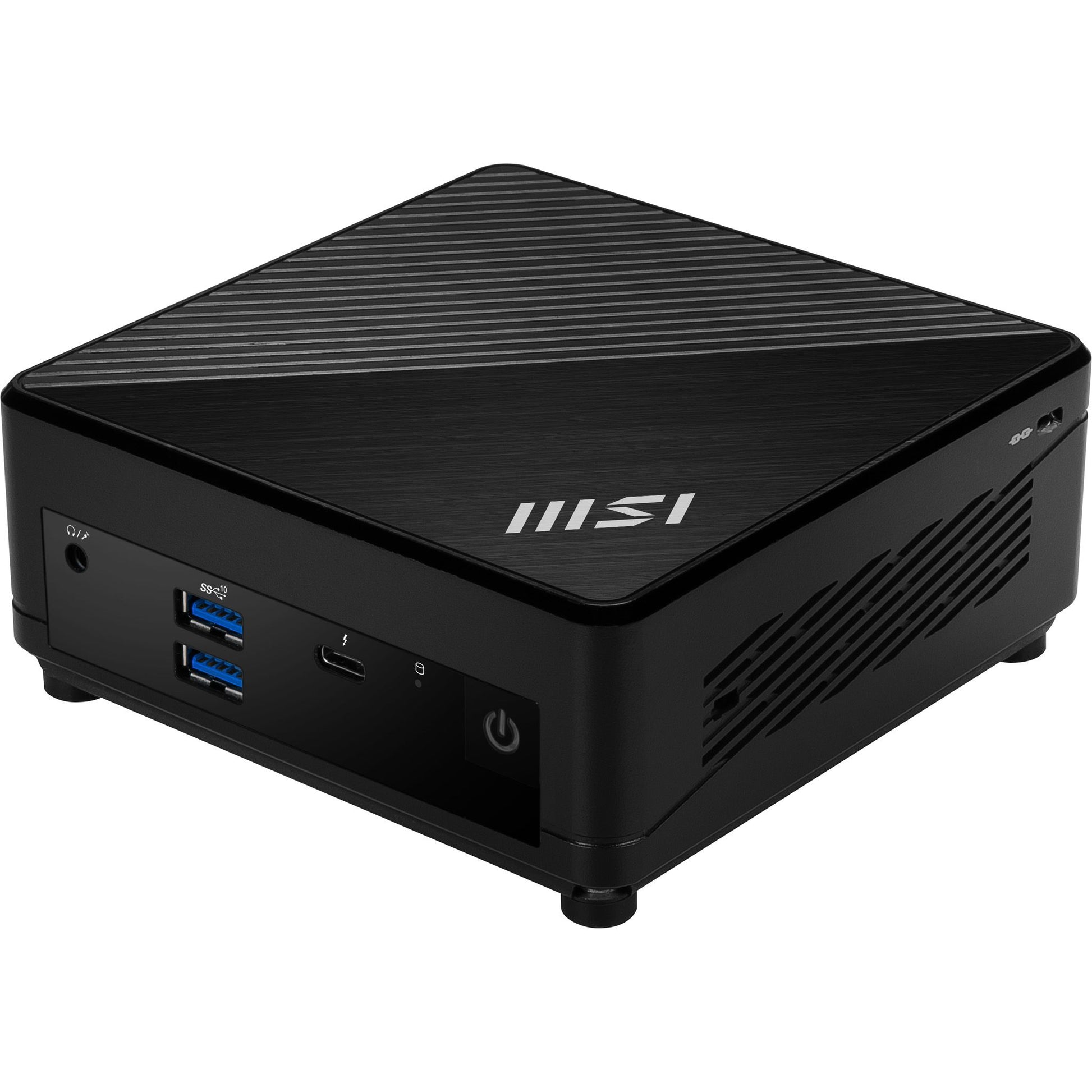

MSI Cubi 5 12M-002EU Intel® Core™ i5 i5-1235U 8 GB DDR4-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black

MSI Cubi 5 12M-002EU. Processor family: Intel® Core™ i5, Processor model: i5-1235U. Installed RAM: 8 GB, RAM type: DDR4-SDRAM, Memory clock speed: 3200 MHz. Total storage capacity: 512 GB, Storage media: SSD. Integrated graphics adapter model: Intel Iris Xe Graphics. Wi-Fi. Operating system installed: Windows 11 Pro. Power supply: 65 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 590 g. Product colour: Black

Processor family

Intel® Core™ i5

Processor manufacturer

Intel

Processor model

i5-1235U

Processor generation

12th Generation Intel® Core™ i5

Number of processor cores

10

Number of processor threads

8

Maximum turbo processor frequency

4.4 GHz

Processor cache

12 MB

Configurable TDP-down

12 W

Installed RAM

8 GB

Maximum RAM supported

64 GB

RAM Type

DDR4-SDRAM

Memory structure

1 x 8 GB

Memory slot

2x SO-DIMM

Memory speed

3200 MHz

Total storage capacity

512 GB

Optical drive type

No

Memory support

SSD

Total SSD capacity

512 GB

Number of SSDs installed

1

SSD capacity

512 GB

Solid State Drive (SSD) Interface

PCI Express

NVMe

Yes

SSD size

M.2

Integrated card reader

No

Separate graphics card adapter

No

Integrated graphics card

Yes

Dedicated graphics card

Not available

Integrated graphics card model

Intel Iris Xe Graphics

Integrated GPU manufacturer

Intel

Integrated graphics adapter family

Intel Iris Xe Graphics

Ethernet LAN connection

Yes

Wi-Fi

Yes

Ethernet LAN Transfer Speed

10,100,1000 Mbit/s

Standard Wi-Fi

Wi-Fi 6E (802.11ax)

Wi-Fi Standard

Wi-Fi 6E (802.11ax)

WLAN controller manufacturer

Realtek

Bluetooth

Yes

Bluetooth version

5.3

Number of USB 2.0 ports

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

0

Number of Thunderbolt 3 ports

0

Quantity of HDMI ports

1

Intel® Thunderbolt 4

Yes

Number of Thunderbolt 4 ports

1

DVI port

No

HDMI version

2.0b

DisplayPort Quantity

1

DisplayPort version

1.4

Ethernet LAN ports (RJ-45)

1

Headphone outputs

1

Microphone/headphone combo jack

Yes

DC-in jack

Yes

Type of houses

Mini PC

Product color

Black

Volume

0.66 L

Placement supported

Horizontal/Vertical

Cable lock

Yes

Cable lock slot type

Kensington

Product type

Mini PC

Market positioning

Business

Motherboard chipset

Intel SoC

Operating system included

Windows 11 Pro

Built-in options available

No

Intel® VT-x with Extended Page Tables (EPT)

Yes

Intel® Trusted Execution Technology

Yes

Execute Disable Bit

Yes

Intel® Flex Memory Access

Yes

CPU configuration (max)

1

Intel® Virtualization Technology for Directed I/O (VT-d)

Yes

Intel® Virtualization Technology (VT-x)

Yes

Diet

65 W

Operating temperature range

0 - 35 °C

Temperature range

-20 - 60 °C

Operating humidity range

0 - 85%

Humidity

0 - 90%

Certification

FCC, CB/CE, UL & CUL, VCCI, RCM

Length

124 mm

Depth

124 mm

Height

53.7 mm

Weight

590 g

Packaging width

221 mm

Packaging depth

506 mm

Packaging height

469 mm

Packaging weight

1.33 kg

Mouse included

No

Keyboard included

No

Screen included

No
