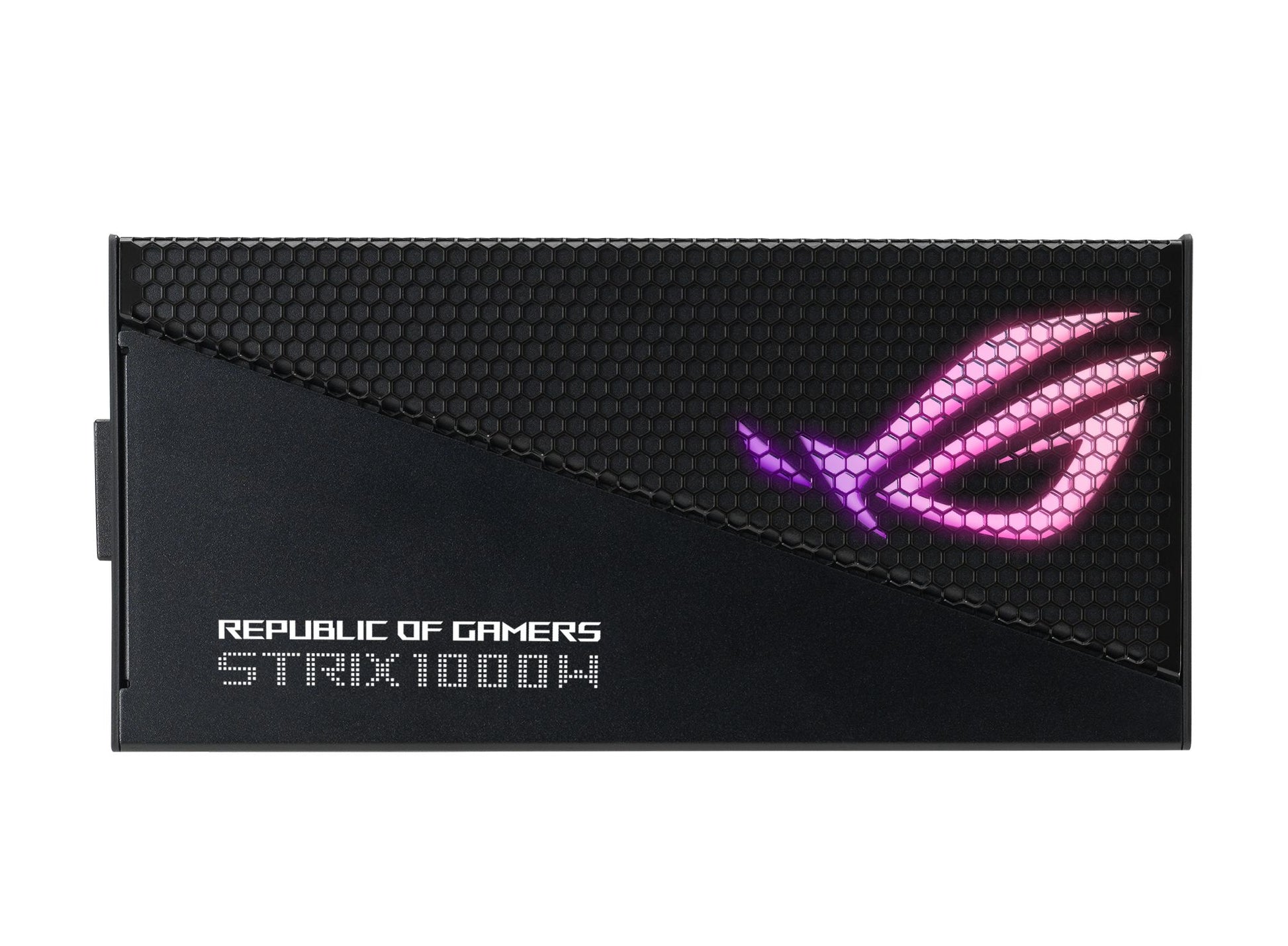

ASUS ROG Strix 1000W Gold Aura Edition computer power supply 20+4 pin ATX ATX Black

ASUS ROG Strix 1000W Gold Aura Edition. Total power: 1000 W, AC input voltage: 100 - 240 V, Combined power (+3.3V): 120 W. Motherboard connector: 20+4-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 120.400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA

Total power

1000 W

AC input voltage

100 - 240 V

Combined power (+3.3V)

120 W

Combined power (+12V)

996.6 W

Combined power (-12V)

3.6 W

Combined power (+5Vsb)

15 W

Maximum output current (+3.3V)

22 A

Maximum output current (+12V)

83.3 A

Maximum output current (+5V)

22 A

Maximum output current (-12V)

0.3 A

Maximum output current (+5Vsb)

3 A

Power protection features

Overcharging, Overloading, Overcharging, Overheating, Short Circuit, Under Load

Motherboard connector

20+4 pin ATX

Peripheral Connectors (Molex) (4-pin)

4

Motherboard power cable length

60 cm

Number of SATA connectors

5

SATA power cable length

120,400 mm

Peripheral power cable length (Molex)

150,400 mm

PCI Express Connectors (8-Pin)

4

PCI Express Power Connectors (16-pin)

1

CPU Power Connector (4+4-Pin)

Yes

CPU Power Cable Length

65 cm

ATX connector (20+4-PIN)

Yes

Wiring type

Totally Modular

Usage

PC

Power Supply Unit (PSU) Form Factor

ATX

80 PLUS Certification

80 PLUS Gold

ATX version

3.0

Silent mode

Yes

Bearing technology

Ball bearing

Product color

Black

Cooling type

Active

Fan diameter

13.5 cm

Number of fans

1 fan(s)

Lighting

Yes

On/Off Switch

Yes

Cables included

AC, CPU, PCIe, Peripheral (Molex), SATA

Certificates of conformity

RoHS

Length

180 mm

Depth

150 mm

Height

86 mm

Weight

3.03 kg

Packaging weight

3.53 kg

Type of packaging

Box

Sustainability Compliance

Yes
