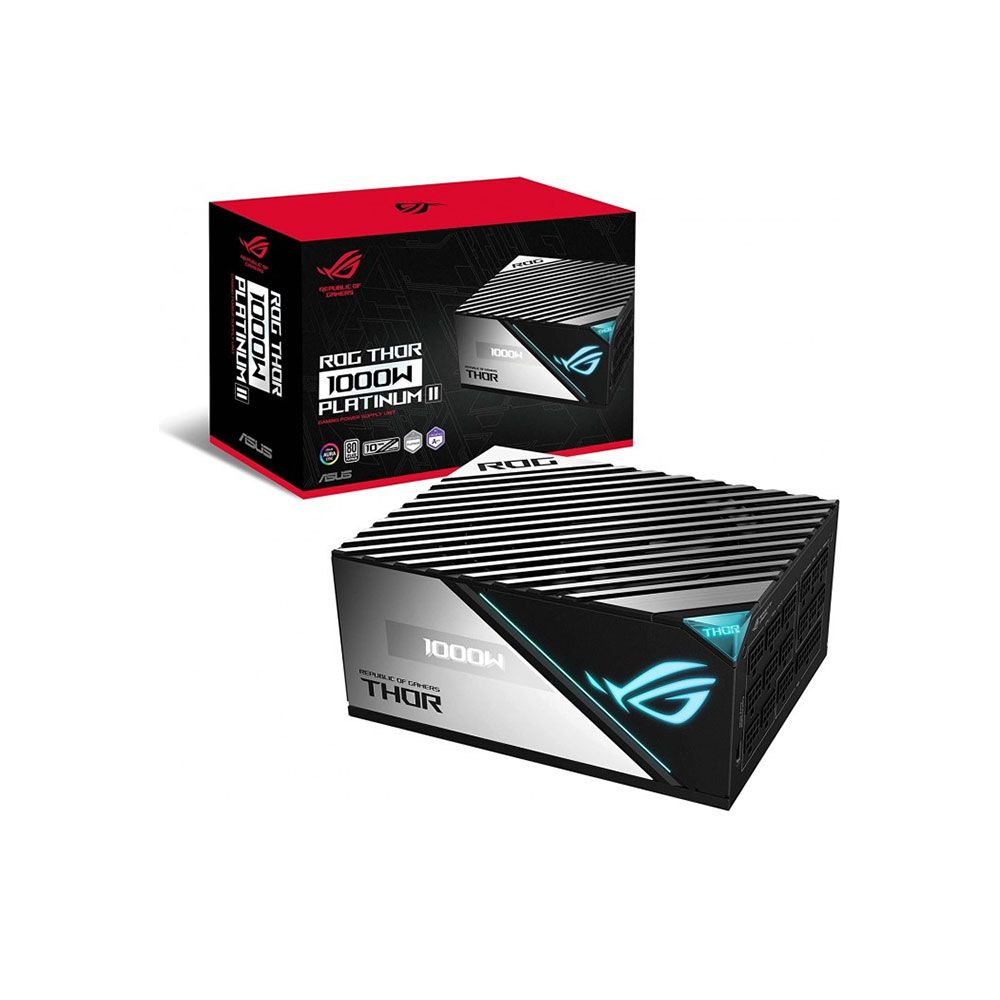

ASUS ROG THOR 1000P2-GAMING computer power supply 1000 W 20+4 pin ATX ATX Black, Silver

ASUS ROG THOR 1000P2-GAMING. Total power: 1000 W, AC input voltage: 100 - 240 V, Maximum input current (@220V): 83 A. Motherboard connector: 20+4 pin ATX, Cabling type: Fully modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Silver, Cooling type: Active. Cables included: CPU, DC, PCIe, Peripheral (Molex), SATA

Total power

1000 W

AC input voltage

100 - 240 V

Maximum input current (@220V)

83 A

Combined power (+3.3V)

125 W

Combined power (+12V)

996 W

Combined power (+5V)

125 W

Combined power (-12V)

3.6 W

Combined power (+5Vsb)

15 W

Maximum output current (+3.3V)

25 A

Maximum output current (+12V)

83 A

Maximum output current (+5V)

125 A

Maximum output current (-12V)

0.3 A

Maximum output current (+5Vsb)

3 A

Power protection features

Overcurrent, Overpower, Overload, Overdischarge, Short circuit, Underload

Motherboard connector

20+4 pin ATX

Peripheral Connectors (Molex) (4-pin)

6

Number of SATA connectors

12

PCI Express connectors (6+2 pins)

8

PCI Express Connectors (8-Pin)

1

CPU P4 connector (4-pin)

2

CPU Power Connector (4+4-Pin)

Yes

PCI Express connector

Yes

Wiring type

Totally Modular

Usage

PC

Power Supply Unit (PSU) Form Factor

ATX

80 PLUS Certification

80 PLUS Platinum

Silent mode

Yes

Acoustic emission

0 dB

Product color

Black, Silver

Cooling type

Active

Lighting

Yes

LED indicators

Yes

Cables included

CPU, AD, PCIe, Peripheral (Molex), SATA

Cable tie(s) included/included

Yes

Certificates of conformity

RoHS

Certification

ROHS

Length

190 mm

Depth

150 mm

Height

86 mm

Weight

2.37 kg
