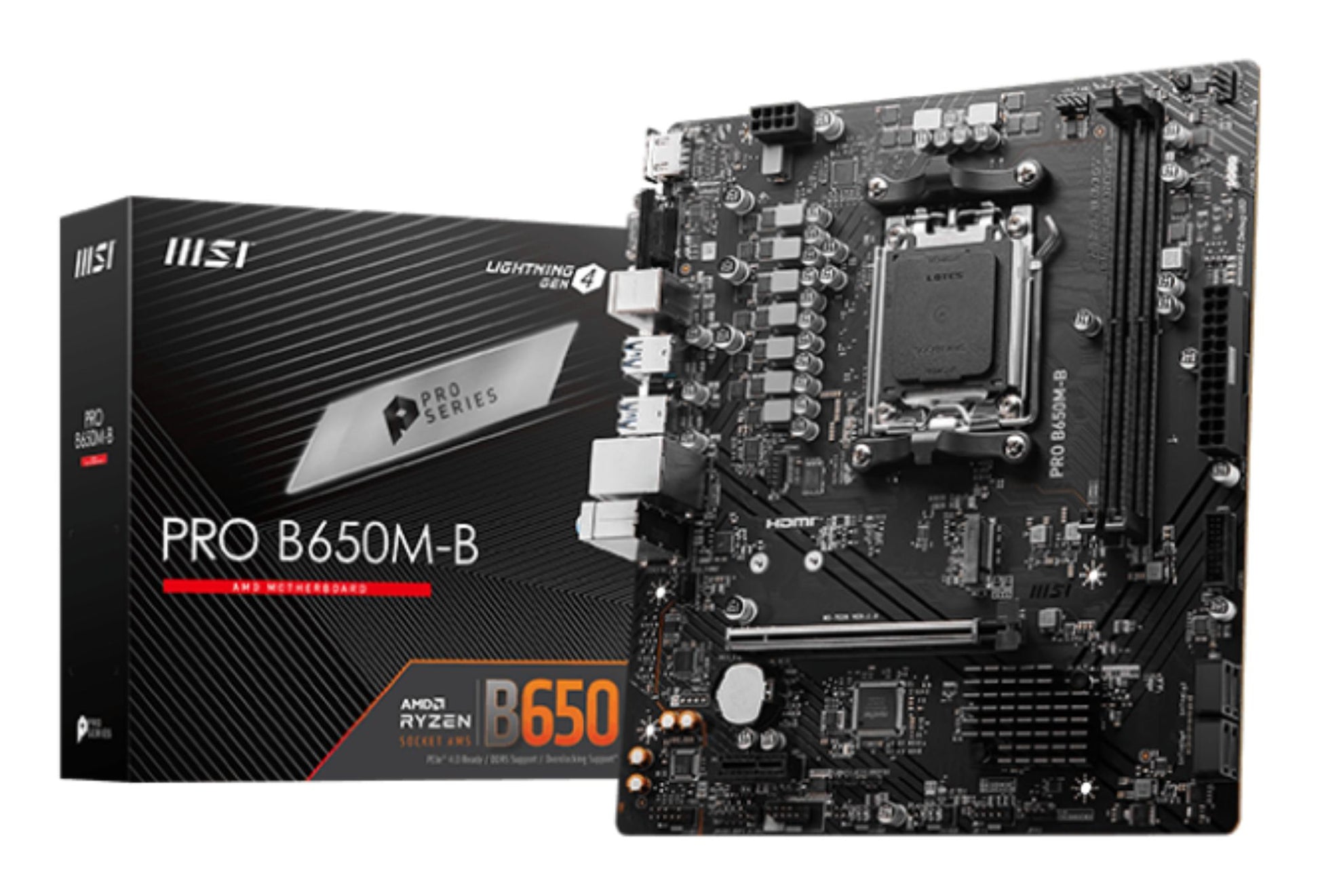

MSI PRO B650M-B motherboard AMD B650 Socket AM5 micro ATX

MSI PRO B650M-B. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processors: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum supported RAM: 96 GB, Supported memory clock speeds: 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz. Supported storage drive interfaces: M.2, SATA, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125-BG. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD

Processor manufacturer

AMD

Processor socket

Socket AM5

Compatible Processors

AMD Ryzen 7000 Series

Socket Supported Processors

Socket AM5

Maximum internal memory supported by the processor

96 GB

Supported memory types

DDR5-SDRAM

Number of memory slots

2

Maximum RAM supported

96 GB

Supported memory speeds

6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz

Supported memory clock speed (max)

6800 MHz

Supported storage drive interfaces

M.2, SATA

RAID Levels

0, 1, 10

USB 2.0 connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Number of SATA III connectors

0

Front panel audio connector

Yes

Front panel connector

Yes

ATX Connector (24-PIN)

Yes

CPU fan connector

Yes

Frame intrusion connector

Yes

Number of USB 2.0 ports

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

Quantity of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

0

Ethernet LAN ports (RJ-45)

1

Quantity of VGA (D-Sub) ports

1

Quantity of HDMI ports

1

Quantity of DVI-D ports

0

HDMI version

2.1

DisplayPort Quantity

1

DisplayPort version

1.4

Headphone outputs

1

Line input

Yes

Microphone input jack

Yes

Wi-Fi

No

Ethernet LAN connection

Yes

Ethernet Interface Type

2.5 Gigabit Ethernet

LAN Controller

Realtek RTL8125-BG

Component for

PC

Motherboard Form Factor

micro ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD B650

Audio system

7.1 channels

Audio chip

Realtek ALC897

PC Health Monitoring

Fan

Supported Windows operating system

Windows 11 x64

PCI Express x16 slot (Gen 3.x)

1

Number of M.2 slots (M)

1

BIOS Type

UEFI AMI

BIOS Memory Size

256 Mbit

ACPI version

6.4

System management BIOS (SMBIOS) version

3.5

Length

215 mm

Depth

243.8 mm
