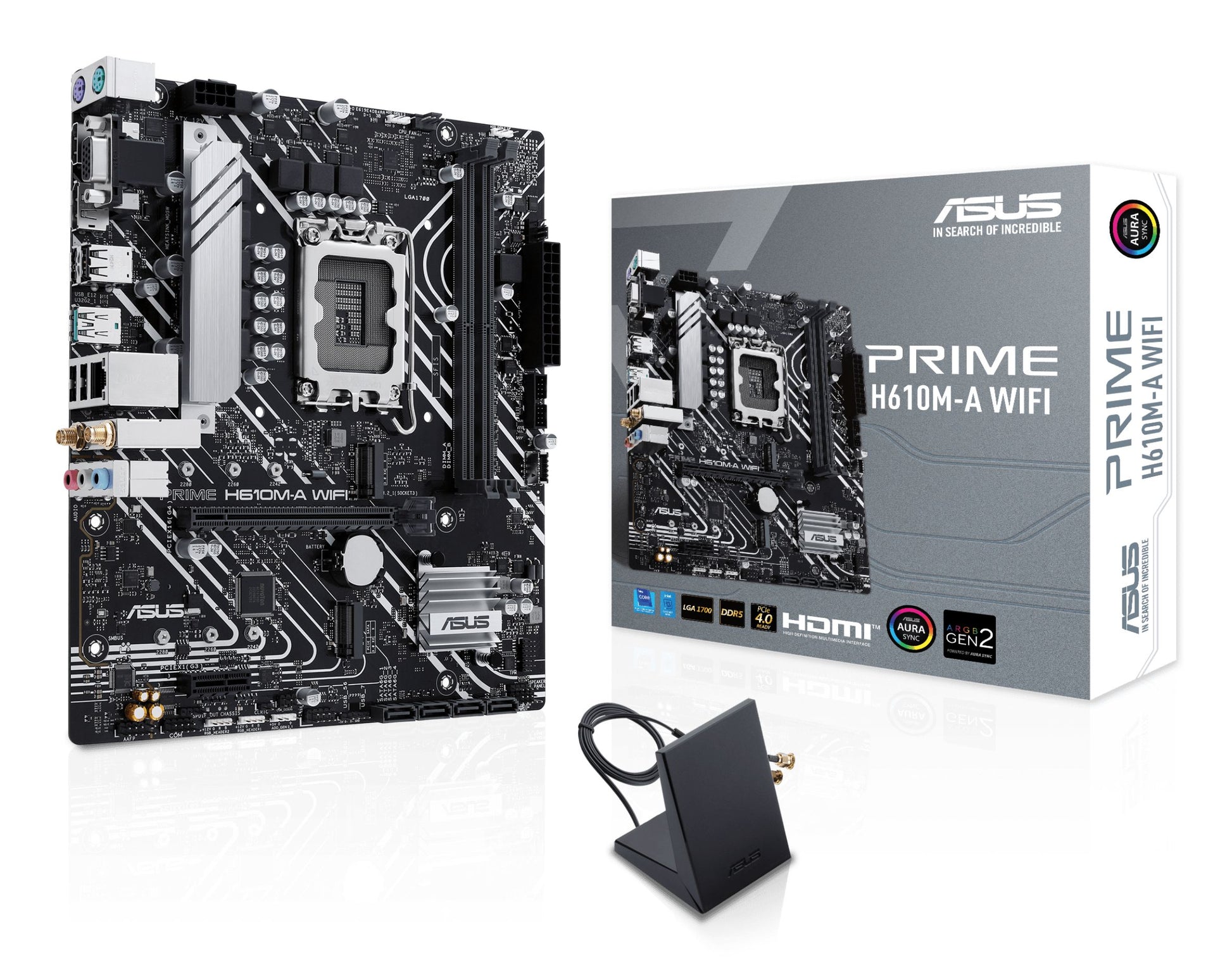

ASUS PRIME H610M-A WIFI Intel H610 LGA 1700 micro ATX

ASUS Prime Series motherboards are designed to unlock the full potential of 13th and 12th Generation Intel® processors. With a reliable power design, comprehensive cooling solutions, and intelligent tuning options, Prime H610 provides users and DIY PC builders with a host of performance tuning options through intuitive software and firmware features.

ASUS PRIME H610M-A WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processors: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum supported RAM: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: Gigabit Ethernet, Standard Wi-Fi standard: Wi-Fi 5 (802.11ac), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Processor manufacturer

Intel

Processor socket

LGA 1700

Compatible Processors

Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9

Socket Supported Processors

LGA 1700

Supported memory types

DDR5 SDRAM

Number of memory slots

2

Maximum RAM supported

96 GB

memory slot type

DIMM

Memory channels

Dual channel

ECC compatibility

Non-ECC

Supported memory speeds

4800,5000,5200,5400,5600 MHz

Supported memory clock speed (max)

5600 MHz

Without buffer

Yes

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

Number of hard drives supported

4

number of supported storage devices

6

Parallel processing technology

Not supported

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

S/PDIF output connector

Yes

Audio connector

Yes

Front panel audio connector

Yes

ATX Connector (24-PIN)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

EPS Power Connector (8-Pin)

Yes

Number of COM connectors

1

TPM connector

Yes

Connector with 12V power

Yes

RGB LED connector

Yes

Number of USB 2.0 ports

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

Quantity of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

0

Ethernet LAN ports (RJ-45)

1

Quantity of VGA (D-Sub) ports

1

Quantity of HDMI ports

1

Quantity of DVI-D ports

0

PS/2 Ports Quantity

2

HDMI version

2.1

DisplayPort Quantity

1

DisplayPort version

1.4

Headphone outputs

1

Line input

Yes

Microphone input jack

Yes

WiFi-AP antenna plug

1

Wi-Fi

Yes

Ethernet LAN connection

Yes

Ethernet Interface Type

Gigabit Ethernet

Standard Wi-Fi

Wi-Fi 5 (802.11ac)

Wi-Fi Standard

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Bluetooth

Yes

Bluetooth version

5.0

Component for

PC

Motherboard Form Factor

micro ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel H610

Audio system

7.1 channels

Supported Windows operating system

Windows 10 x64, Windows 11 x64

PCI Express x1 slot (Gen 3.x)

1

PCI Express x16 slot (Gen 4.x)

1

Number of M.2 slots (M)

2

BIOS Type

UEFI AMI

BIOS Memory Size

128 Mbit

CMOS reset button

Yes

Packaging width

270 mm

Packaging depth

263 mm

Packaging height

51.5 mm

Packaging weight

1.07 kg

Length

244 mm

Depth

216 mm

Cables included

SATA
