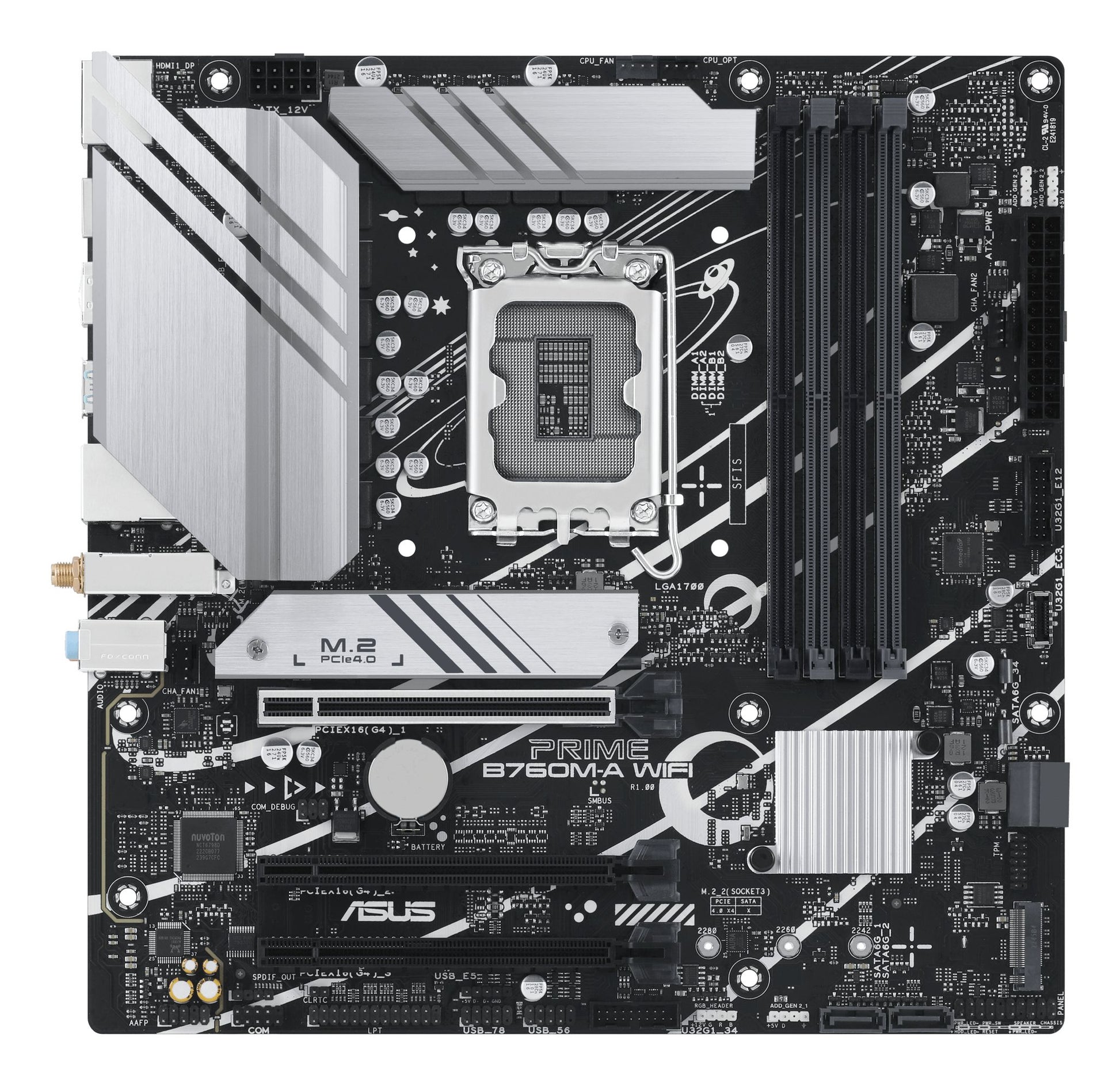

ASUS PRIME B760M-A WIFI Intel B760 LGA 1700 micro ATX

ASUS Prime Series motherboards are expertly designed to unleash the full potential of 13th Gen Intel® Core™ processors. With a reliable power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A WIFI offers users and DIY PC builders a host of performance optimizations through intuitive software and firmware features.

FLEXIBILITY
Comprehensive system control forms the foundation of the ASUS Prime series. The PRIME B760 motherboard contains flexible tools to optimize every aspect of your system, enabling performance adjustments to perfectly match the way you work and maximize productivity.

Intelligent Control
ASUS Intelligent Control makes your PC smarter. In addition to handling complex tuning and dynamic optimization of essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

Complete energy efficiency
The power management feature contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, dim Aura lighting, and set the fan profile to a power-saving mode. You can also activate the power plan built into Microsoft Windows.

Flexible controls for both air and liquid cooling
Fan Xpert 2+ software provides comprehensive control over fans, water pumps, and all-in-one (AiO) coolers. Regardless of the cooling system used, Auto-Tuning mode intelligently configures all parameters with just one click. There's also an Extreme Quiet mode, which reduces all fan speeds below the default minimum, keeping the system quiet during light tasks. AiO fans can also be controlled via the UEFI BIOS.

Precise Digital Power Control
The Digi+ Voltage Regulator Module (VRM) provides real-time control of voltage droop, automatically switching frequency and power efficiency settings. It also allows you to fine-tune your CPU for maximum stability and performance.

UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and optimize your build. It offers intelligently simplified options for newbies as well as advanced features for true experts.

Advanced optimization for professional tweakers
An intuitive Advanced Mode, powered by UEFI, lets you take complete control. The built-in search function makes it easy to find options, while various advanced functions let you make intelligent adjustments, allowing you to fine-tune performance just the way you want it.

Simple and safe installation
EZ Mode displays vital settings and statistics, and also offers wizards, drag-and-drop functionality, and one-click application of important settings – all to help you get your system up and running in no time.

Intuitive graphical fan control
Optimize individual fans by simply dragging a curve with the mouse

Aura Mode On/Off (Stealth)
Easily enable or disable Aura RGB lighting or any onboard LED, for a more subdued aesthetic.

COOLING
The Prime B760 Series is designed with multiple integrated heatsinks and a set of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

M.2 heatsink
The M.2 heatsink eliminates the throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce the risk of dropping or losing the heatsink when removing it.

VRM heatsink and thermal pad
VRM heatsinks and thermal pads improve heat transfer from the MOSFETs and blocks for improved cooling performance.

Effective cooling
The PRIME B760 Series features comprehensive cooling controls that can be configured via Fan Xpert 2+ software or the UEFI BIOS.

Multiple temperature sources
Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU and CPU tasks.

Smart Protection
A dedicated IC protects each fan header from overtemperature and overcurrent.

4-pin PWM/DC fan connector
Each onboard header supports auto-detection of PWM or DC fans.

PERFORMANCES
PRIME B760 motherboard is built to handle the high core counts and bandwidth demands of 13th Generation Intel® Core™ processors. ASUS B760 motherboard delivers all the essentials to boost your daily productivity—your system will be ready for action with stable power, intuitive cooling, and flexible data transfer options.

High power supply design
Power stability is essential to extract every last bit of performance from Intel® processors. PRIME B760M-A WIFI is designed to meet the demands of these high-core CPUs.

ProCool Connector
It also improves the motherboard's connection to the PSU with 8-pin connectors that send 12V directly to the processor. Each jack features solid pins that can handle more current than hollow pin connectors.

Six-layer PCB design
Multiple PCB layers optimize heat management for critical components, providing more headroom to push CPUs beyond stock speeds.

Stack Cool 3+
2-ounce copper layers absorb heat from critical components to keep them at their optimal operating temperatures and provide more headroom to push CPUs beyond stock speeds.

AEMP II for maximum DDR5 performance

ASUS Enhanced Memory Profile II (AEMP II) is an exclusive firmware feature for memory modules with PMIC restrictions. AEMP II leverages the CPU and memory module's ability to train the kit's memory chips, and features optimized clock speeds to unleash effortless performance.

Achieved through a flexible training method, AEMP II allows you to not only tune your memory above the base settings, but also maintain the stability of your system's operation, whether you're getting the most out of an entry-level module or priming a high-speed kit for maximum performance.

* Results may vary depending on CPU capabilities and memory modules.

**The comparison chart is based on a test with an Intel® i9-13900K processor and 2x16GB SK Hynix DDR5-4800 non-ECC UDIMMs, model HMCG78MEBUA081N.

***Make sure all memory modules are from a single validated kit. Do not mix DIMMs from different kits, even if they are the same make and model. Mixing and matching DIMMs may cause failure to boot and compatibility cannot be guaranteed.

****Always install DIMMs with the same CAS latency. For optimal compatibility, we recommend installing memory modules of the same version or date code (D/C) from the same vendor. Check with your reseller to obtain the correct memory modules.

ASUS OptiMem II
Modifications to the motherboard's trace routing give the latest Intel processors unrestricted access to memory bandwidth. Our OptiMem II technology accurately maps signal paths between PCB layers, reducing the distance they must travel, and the addition of shielding zones significantly reduces crosstalk.

ASUS OptiMem II Benefits:
Improved memory stability and compatibility
Allows for lower memory latencies at the same voltage
Improved memory frequency margin

Motherboards with OptiMem II technology have been tested with Synopsys HSPICE simulation software

Storage
Two M.2 slots (up to 64 Gbps)
PRIME B760 offers a total of two M.2 slots that support data transfer speeds of up to 64 Gbps via PCIe® 4.0, enabling faster boot times and app loading with OS or application drives.
*The actual transmission speed will be lower than the theoretical maximum speed

PCIe 4.0 slots
The PRIME B760 motherboard is specifically designed for 13th and 12th Gen Intel® CPUs and offers PCIe 4.0 connectivity for the latest GPUs.

USB 3.2 Gen 1 Type-C®
Numerous USB ports support high-end rigs loaded with peripherals, including two rear USB connectors with fast USB 3.2 Gen 2 for transmission speeds of up to 5 Gbps.

WiFi 6
The WiFi 6 module is compatible with the 802.11ax standard and boosts theoretical peak bandwidth to an incredible 1.2 Gbps. Of utmost importance to end users is efficient operation even on crowded, high-traffic networks. Pair your motherboard with ASUS WiFi 6 routers to take full advantage of its potential.

Realtek 2.5 Gb Ethernet
Realtek 2.5Gb Ethernet reduces CPU overhead and delivers exceptionally high TCP and UDP throughput for faster, smoother data transfer.

LANGuard
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors to ensure a more reliable connection and better throughput.

Integrated built-in features deliver high-quality audio
Intelligent design combined with advanced hardware delivers audio quality unlike any other motherboard you've ever experienced.

Audio shielding
Ensures analog/digital accuracy and significant reduction of multi-lateral interference.

Dedicated audio levels on the PCB
Separate layers for left and right tracks ensures equal quality for both channels.

Premium audio capacitors
Warm, natural and immersive sound with exceptional clarity and fidelity.

ASUS PRIME B760M-A WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processors: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum supported RAM: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Processor manufacturer

Intel

Processor socket

LGA 1700

Compatible Processors

Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold

Socket Supported Processors

LGA 1700

Supported memory types

DDR5-SDRAM

Number of memory slots

4

Maximum RAM supported

128 GB

memory slot type

DIMM

Memory channels

Dual channel

ECC compatibility

Non-ECC

Supported memory speeds

7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz

Supported memory clock speed (max)

7200 MHz

Without buffer

Yes

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

Number of hard drives supported

4

number of supported storage devices

6

RAID support

Yes

RAID Levels

0, 1, 5, 10

Parallel processing technology

Not supported

USB 2.0 connectors

3

USB 3.2 Gen 1 (3.1 Gen 1) connectors

3

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

S/PDIF output connector

Yes

Front panel audio connector

Yes

Front panel connector

Yes

ATX Connector (24-PIN)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

EPS Power Connector (8-Pin)

Yes

Number of COM connectors

1

TPM connector

Yes

Connector with 12V power

Yes

RGB LED connector

Yes

Number of USB 2.0 ports

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

Quantity of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

0

Ethernet LAN ports (RJ-45)

1

Quantity of VGA (D-Sub) ports

0

Quantity of HDMI ports

2

Quantity of DVI-D ports

0

PS/2 Ports Quantity

1

HDMI version

2.1

DisplayPort Quantity

1

DisplayPort version

1.4

Microphone input jack

Yes

WiFi-AP antenna plug

2

Wi-Fi

Yes

Ethernet LAN connection

Yes

Ethernet Interface Type

2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet

Standard Wi-Fi

Wi-Fi 6 (802.11ax)

Wi-Fi Standard

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Bluetooth

Yes

Bluetooth version

5.2

Component for

PC

Motherboard Form Factor

micro ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel B760

Audio system

7.1 channels

Cooling type

Passive

Power supply type

ATX

Supported Windows operating system

Windows 10 x64, Windows 11

PCI Express x16 slot (Gen 4.x)

2

Number of M.2 slots (M)

2

BIOS Type

UEFI AMI

BIOS Memory Size

128 Mbit

Packaging width

275 mm

Packaging depth

275 mm

Packaging height

67.5 mm

Packaging weight

1.4 kg

Length

244 mm

Depth

244 mm

Height

50 mm

Cables included

SATA

User Guide

Yes

Weight

886 g
