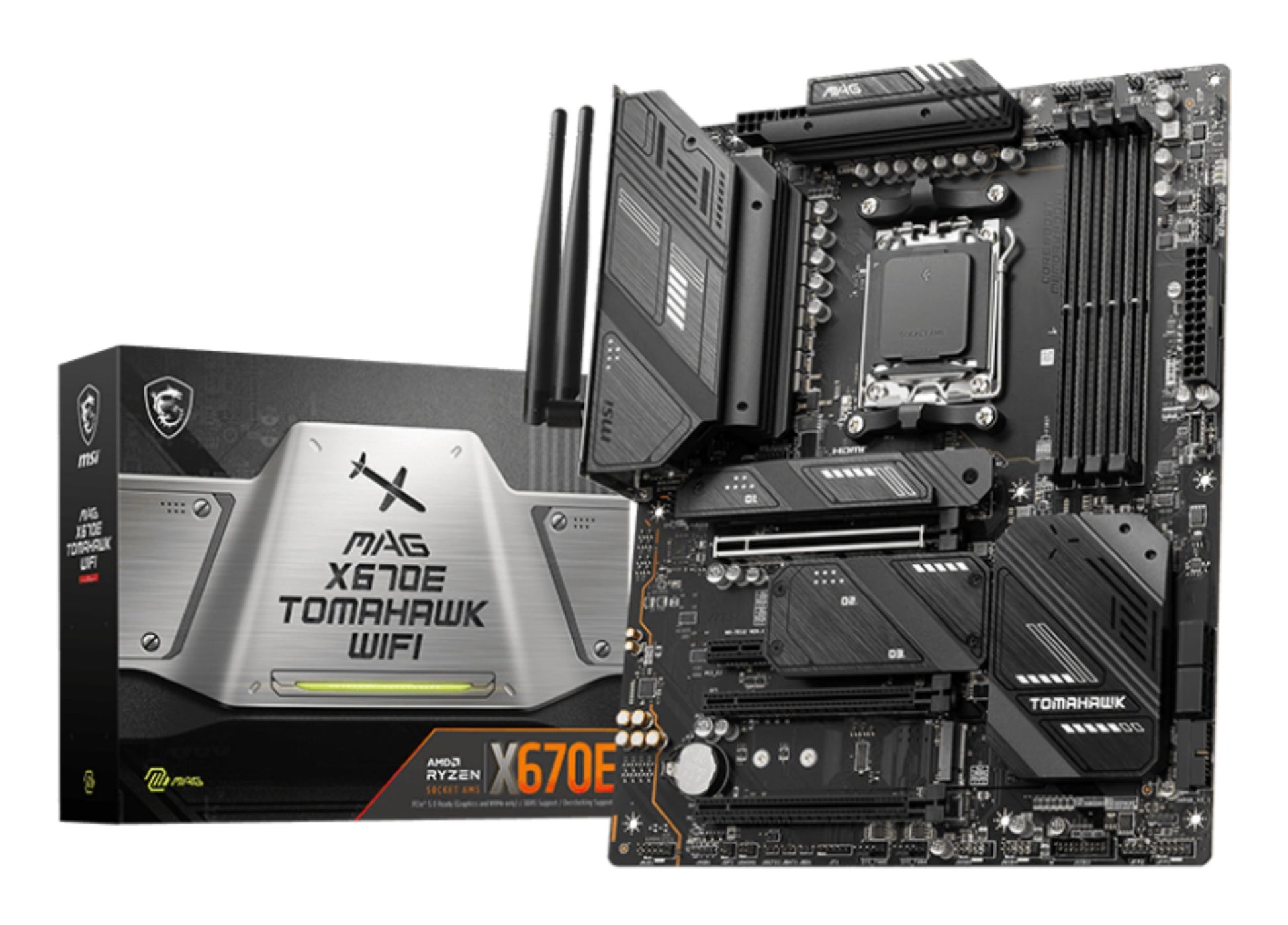

MSI MAG X670E TOMAHAWK WIFI motherboard AMD X670 Socket AM5 ATX

MSI MAG X670E TOMAHAWK WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 7. Supported memory types: DDR5-SDRAM, Maximum supported RAM: 128 GB, Memory channels: Dual-channel. Supported storage drive interfaces: M.2, SATA, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125-BG, Standard Wi-Fi: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD

Processor manufacturer

AMD

Processor socket

Socket AM5

Compatible Processors

AMD Ryzen™ 7

AMD Opteron Series

7000

Maximum number of SMP processors

1

Socket Supported Processors

Socket AM5

Supported memory types

DDR5 SDRAM

Number of memory slots

4

Maximum RAM supported

128 GB

Memory channels

Dual channel

ECC compatibility

Non-ECC

Supported memory speeds

4800,5000,5200,5400,5600,5800,6000,6200,6400,6600 MHz

Supported memory clock speed (max)

6600 MHz

Supported storage drive interfaces

M.2, SATA

RAID support

Yes

RAID Levels

0, 1, 10

USB 2.0 connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of SATA connectors

0

Front panel audio connector

Yes

Front panel connector

Yes

ATX Connector (24-PIN)

Yes

CPU fan connector

Yes

Frame intrusion connector

Yes

TPM connector

Yes

RGB LED connector

Yes

Number of USB 2.0 ports

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

Quantity of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

1

Ethernet LAN ports (RJ-45)

1

Quantity of VGA (D-Sub) ports

0

Quantity of HDMI ports

1

Quantity of DVI-D ports

0

USB 3.2 Gen 2x2 Type-C ports quantity

1

HDMI version

2.1

DisplayPort Quantity

1

DisplayPort version

1.4

Microphone input jack

Yes

S/PDIF output port

Yes

Wi-Fi

Yes

Ethernet LAN connection

Yes

Ethernet Interface Type

2.5 Gigabit Ethernet

LAN Controller

Realtek RTL8125-BG

Standard Wi-Fi

Wi-Fi 6E (802.11ax)

Wi-Fi Standard

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)

Bluetooth

Yes

Bluetooth version

5.3

Component for

PC

Motherboard Form Factor

ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD X670

Audio system

7.1 channels

Audio chip

Realtek ALC1200

Product color

Black

Power supply type

ATX

Supported Windows operating system

Windows 10, Windows 11

PCI Express x1 slot (Gen 3.x)

1

PCI Express x16 slot (Gen 4.x)

2

PCI Express x16 slot (Gen 5.x)

1

Number of M.2 slots (M)

4

Length

243.8 mm

Depth

304.8 mm
