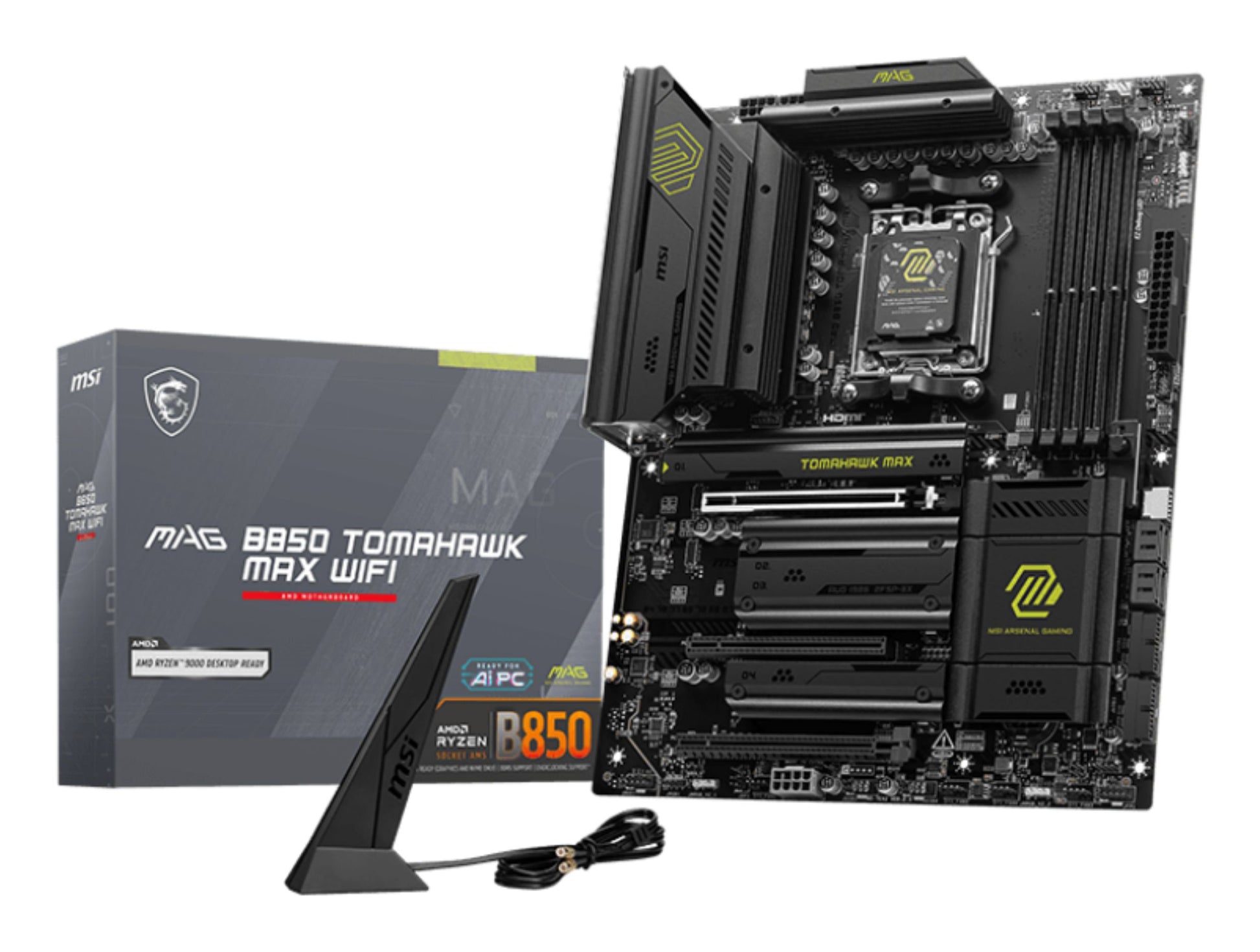

MSI MAG B850 TOMAHAWK MAX WIFI motherboard AMD B850 Socket AM5 ATX

MSI MAG B850 TOMAHAWK MAX WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processors: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum supported RAM: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Micro SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 5 Gigabit Ethernet, Wi-Fi standard: Wi-Fi 7 (802.11b and 802.11b), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD

Processor manufacturer

AMD

Processor socket

Socket AM5

Compatible Processors

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Socket Supported Processors

Socket AM5

Maximum internal memory supported by the processor

256 GB

Supported memory types

DDR5-SDRAM

Number of memory slots

4

Maximum RAM supported

256 GB

memory slot type

DIMM

Memory channels

Dual channel

ECC compatibility

Non-ECC

Supported memory speeds

4800,5600,8400 MHz

Supported memory clock speed (max)

8400 MHz

Supported storage drive interfaces

M.2, Micro SATA III

Supported storage drive types

HDD & SSD

Number of hard drives supported

4

number of supported storage devices

8

RAID support

Yes

RAID Levels

0, 1, 10

Integrated graphics card

No

USB 2.0 connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of SATA connectors

0

Total number of SATA connectors

4

CPU fan connector

Yes

Number of CPU fan connectors

6

Number of connectors for the water pump

1

RGB LED connector

Yes

Number of pin headers for RGB LEDs

3

Number of USB 2.0 ports

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

Quantity of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

3

Ethernet LAN ports (RJ-45)

1

Quantity of VGA (D-Sub) ports

0

Quantity of HDMI ports

1

Quantity of DVI-D ports

0

HDMI version

2.1

Wi-Fi

Yes

Ethernet LAN connection

Yes

Ethernet Interface Type

5 Gigabit Ethernet

Standard Wi-Fi

Wi-Fi 7 (802.11b and b)

Wi-Fi Standard

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)

Bluetooth

Yes

Bluetooth version

5.4

Component for

PC

Motherboard Form Factor

ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD B850

Audio system

7.1 channels

Audio chip

Realtek ALC4080

Product color

White

Supported Windows operating system

Windows 11 x64

PCI Express x16 slot (Gen 3.x)

1

PCI Express x16 slot (Gen 4.x)

1

PCI Express x16 slot (Gen 5.x)

1

Number of M.2 slots (M)

4

Maximum size of the first M.2 Key connector

22110

Maximum PCI Express generation of the first M.2

5.0

Maximum size of the second Key M.2 connector

2280

Maximum PCI Express Generation 2 M.2

5.0

Maximum size of the third Key M.2 connector

2280

PCI Express Generation 3 M.2 Max

4.0

Maximum size of the fourth Key M.2 connector

2280

PCI Express Generation 4 M.2 Max

4.0

Length

243.8 mm

Depth

304.8 mm

quantity of mSATA ports

0
