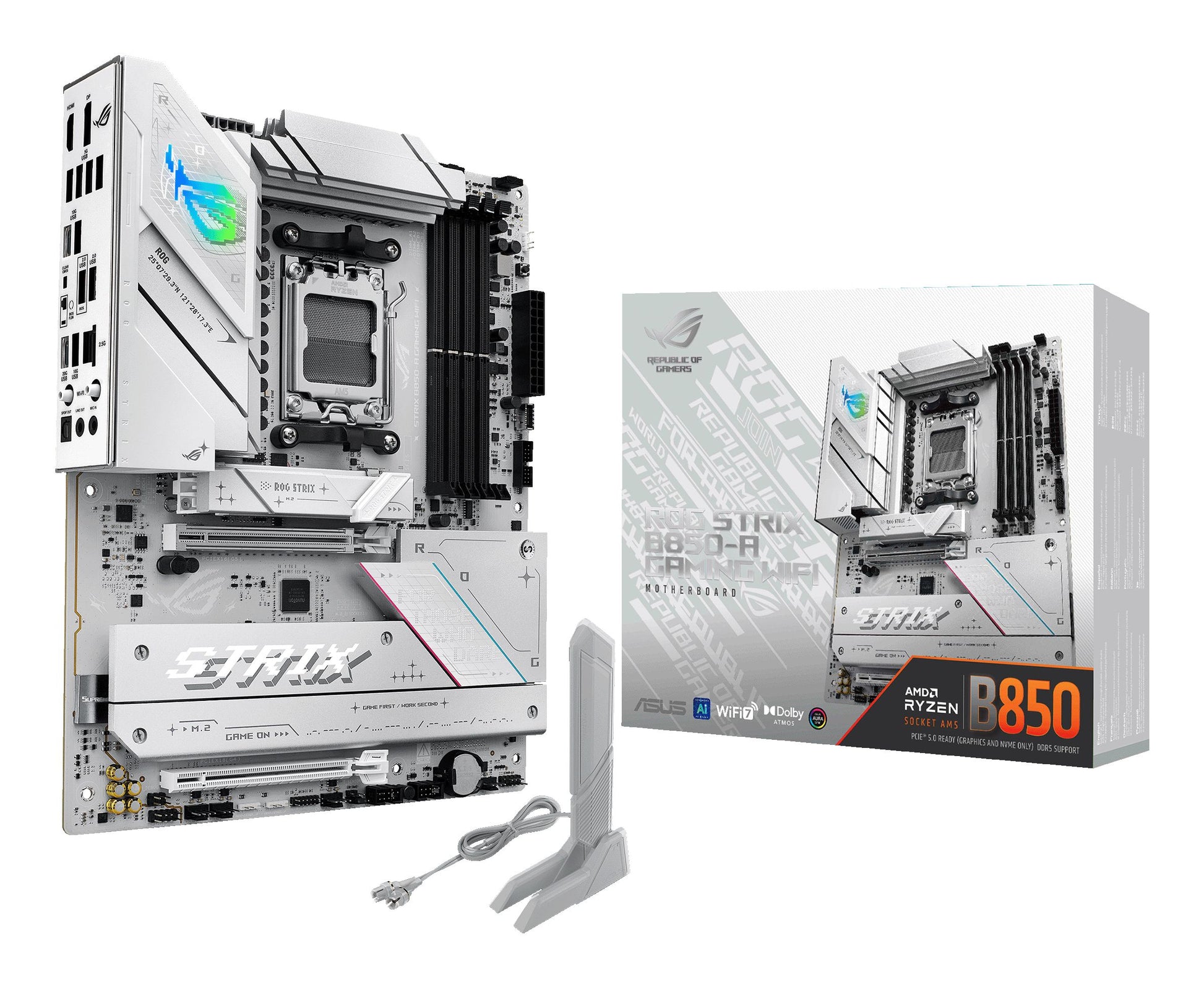

ASUS ROG STRIX B850-A GAMING WIFI AMD B850 Socket AM5 ATX

ASUS ROG STRIX B850-A GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processors: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum supported RAM: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 7680 x 4320 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Standard Wi-Fi standard: Wi-Fi 7 (802.11b/g/n), Wi-Fi standard: Wi-Fi 7 (802.11b/g/n)

Processor manufacturer

AMD

Processor socket

Socket AM5

Compatible Processors

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Socket Supported Processors

Socket AM5

Supported memory types

DDR5-SDRAM

Number of memory slots

4

Maximum RAM supported

192 GB

memory slot type

DIMM

Memory channels

Dual channel

ECC compatibility

ECC & Non-ECC

Supported memory clock speed (max)

8000 MHz

Without buffer

Yes

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

Number of hard drives supported

2

number of supported storage devices

6

RAID support

Yes

RAID Levels

0, 1, 5, 10

Parallel processing technology

Not supported

Integrated graphics card

No

Maximum resolution

7680 x 4320 pixels

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Number of SATA III connectors

2

Number of SATA II connectors

0

Number of SATA connectors

0

Front panel audio connector

Yes

Front panel connector

Yes

ATX Connector (24-PIN)

Yes

CPU fan connector

Yes

Number of CPU fan connectors

2

Number of chassis fan connectors

4

EPS Power Connector (8-Pin)

Yes

Number of EPS power connectors (8 pin)

2

Thunderbolt ports

1

Number of connectors for the water pump

1

Temperature sensor header number

1

RGB LED connector

Yes

Number of pin headers for RGB LEDs

3

Number of USB 2.0 ports

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

Quantity of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

1

Ethernet LAN ports (RJ-45)

1

Quantity of VGA (D-Sub) ports

0

Quantity of HDMI ports

1

Quantity of DVI-D ports

0

USB 3.2 Gen 2x2 Type-C ports quantity

1

HDMI version

2.1

DisplayPort Quantity

1

DisplayPort version

1.4

Headphone outputs

1

Line input

Yes

S/PDIF output port

Yes

Optical digital audio output

1

WiFi-AP antenna plug

2

Wi-Fi

Yes

Ethernet LAN connection

Yes

Ethernet Interface Type

2.5 Gigabit Ethernet

Standard Wi-Fi

Wi-Fi 7 (802.11b and b)

Wi-Fi Standard

Wi-Fi 7 (802.11b and b)

Bluetooth

Yes

Bluetooth version

5.4

Component for

PC

Motherboard Form Factor

ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD B850

Audio system

7.1 channels

Audio chip

Realtek ALC4080

Product color

White

Power supply type

ATX

Supported Windows operating system

Windows 11

PCI Express x16 slot (Gen 4.x)

1

PCI Express x16 slot (Gen 5.x)

1

Number of M.2 slots (M)

4

Maximum size of the first M.2 Key connector

2280

Maximum PCI Express generation of the first M.2

5.0

Maximum size of the second Key M.2 connector

22110

Maximum PCI Express Generation 2 M.2

4.0

Maximum size of the third Key M.2 connector

2280

PCI Express Generation 3 M.2 Max

4.0

Maximum size of the fourth Key M.2 connector

2280

PCI Express Generation 4 M.2 Max

4.0

BIOS Type

UEFI AMI

BIOS Memory Size

256 Mbit

CMOS reset button

Yes

Packaging width

353 mm

Packaging depth

273 mm

Packaging height

68 mm

Packaging weight

2.04 kg

Length

305 mm

Depth

244 mm

Cables included

SATA

Antenna included

Yes

quantity of mSATA ports

0

Weight

2.04 kg

Quick Installation Guide

Yes
