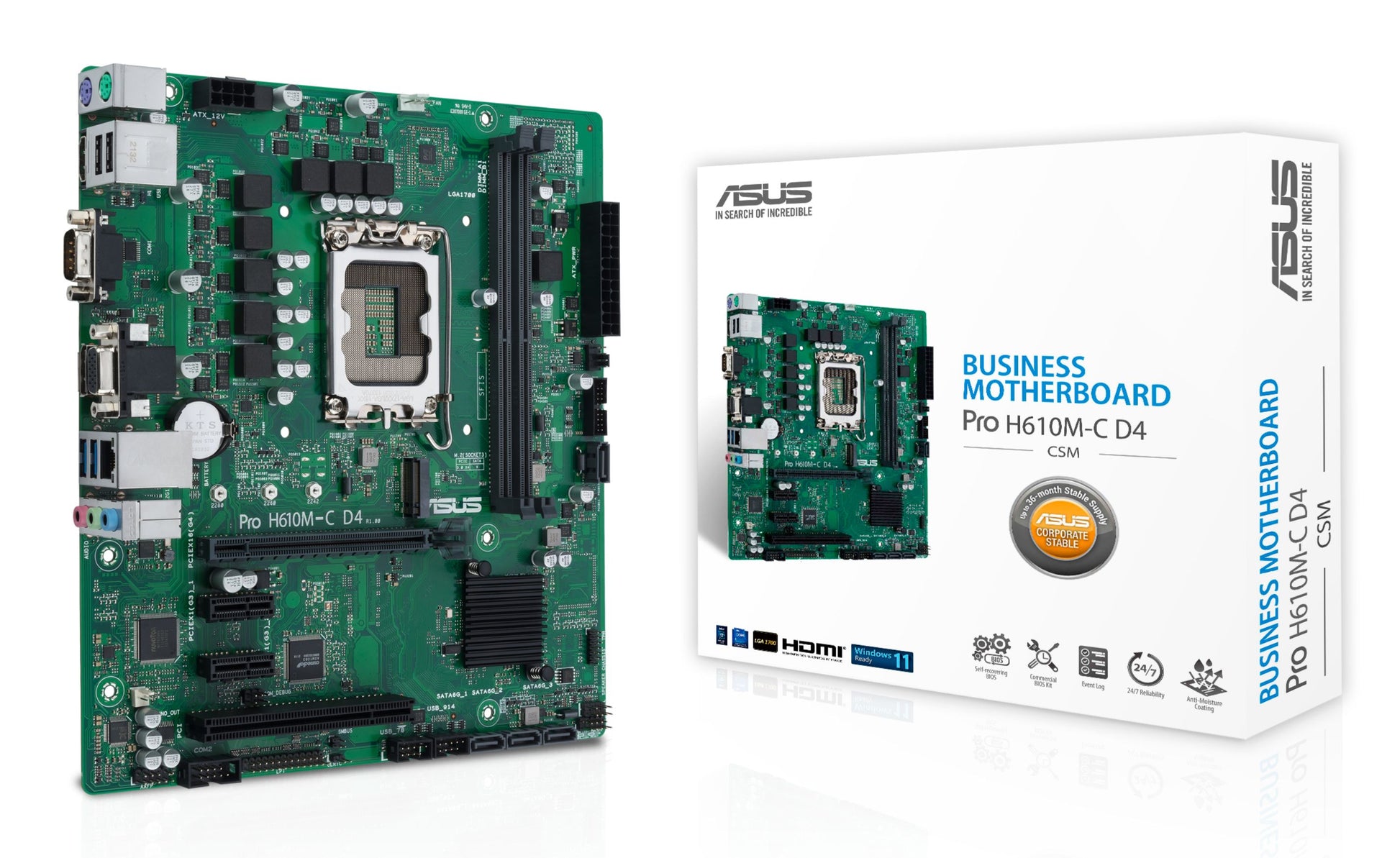

ASUS PRO H610M-C D4-CSM Intel H610 LGA 1700 micro ATX

ASUS PRO H610M-C D4-CSM. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processors: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®. Supported memory types: DDR4-SDRAM, Maximum supported RAM: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Processor manufacturer

Intel

Processor socket

LGA 1700

Compatible Processors

Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®

Maximum number of SMP processors

1

Supported memory types

DDR4-SDRAM

Number of memory slots

2

Maximum RAM supported

64 GB

memory slot type

DIMM

ECC compatibility

Non-ECC

Supported memory speeds

2133,2400,2666,2800,2933,3000,3200 MHz

Without buffer

Yes

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

Parallel processing technology

Not supported

Number of displays supported

3

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Connector (24-PIN)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

1

Frame intrusion connector

Yes

EPS Power Connector (8-Pin)

Yes

Number of COM connectors

1

TPM connector

Yes

Connector with 12V power

Yes

Number of USB 2.0 ports

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

Quantity of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

0

Ethernet LAN ports (RJ-45)

1

Quantity of VGA (D-Sub) ports

1

Quantity of HDMI ports

1

Quantity of DVI-D ports

0

PS/2 Ports Quantity

2

HDMI version

2.1

DisplayPort Quantity

1

DisplayPort version

1.4

Quantity of COM ports

1

Wi-Fi

No

Ethernet LAN connection

Yes

Ethernet Interface Type

Gigabit Ethernet

Wake-on-LAN ready

Yes

Component for

PC

Motherboard Form Factor

micro ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel H610

Audio system

7.1 channels

Supported Windows operating system

Windows 10 x64, Windows 11 x64

PCI Express x1 slot (Gen 3.x)

2

PCI Express x16 slot (Gen 4.x)

1

Number of M.2 slots (M)

1

BIOS Type

UEFI AMI

BIOS Memory Size

128 Mbit

Harmonized System Code (HS)

84733020

Length

244 mm

Depth

220 mm

Height

221 mm

Cables included

SATA

Drivers included

Yes

Weight

382 g
