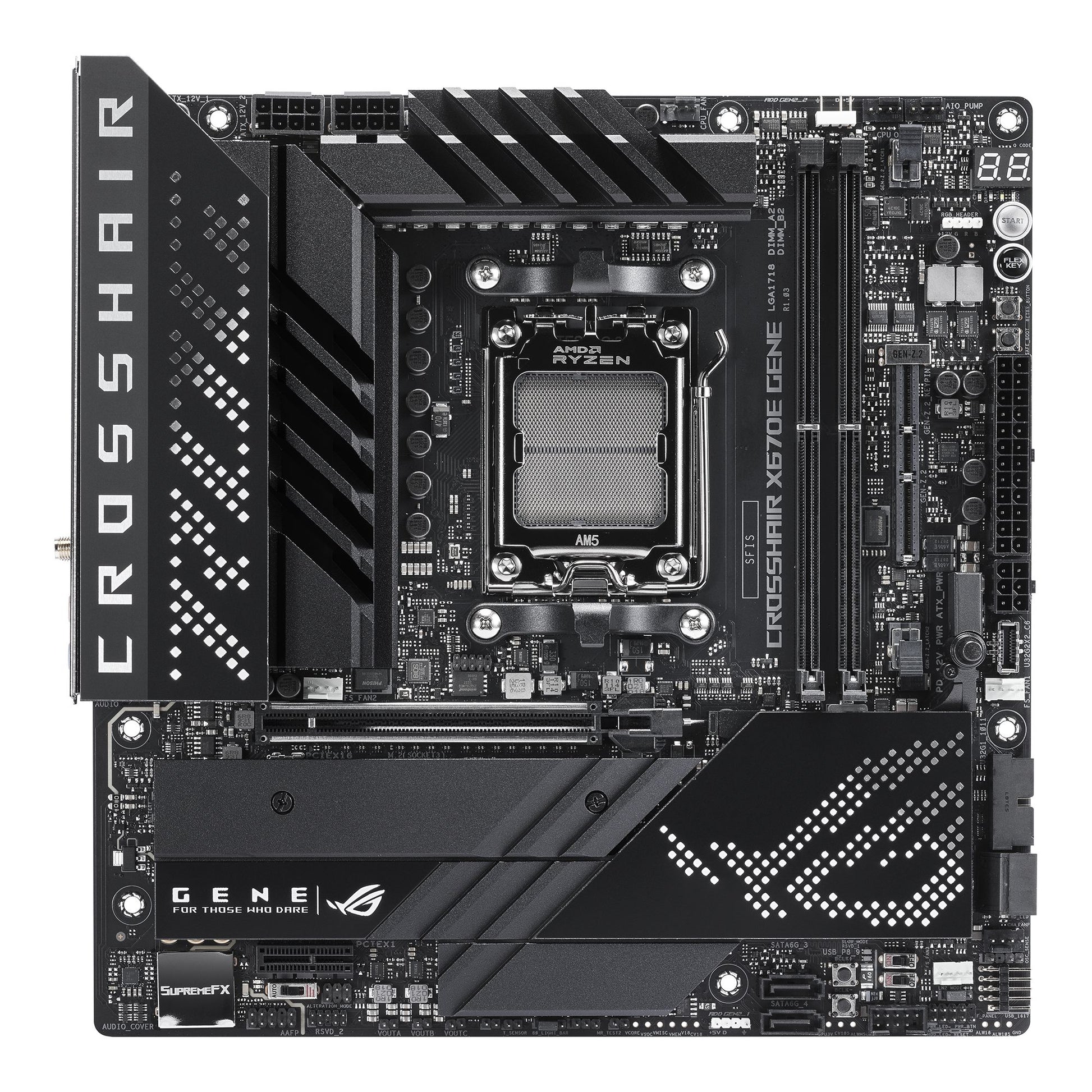

ASUS ROG CROSSHAIR X670E GENE AMD X670 Socket AM5 micro ATX

ASUS ROG CROSSHAIR X670E GENE. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum supported RAM: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD

Processor manufacturer

AMD

Processor socket

Socket AM5

Socket Supported Processors

Socket AM5

Supported memory types

DDR5-SDRAM

Number of memory slots

2

Maximum RAM supported

64 GB

memory slot type

DIMM

Memory channels

Dual channel

ECC compatibility

ECC & Non-ECC

Supported memory speeds

4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz

Supported memory clock speed (max)

6400 MHz

Without buffer

Yes

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

RAID support

Yes

RAID Levels

0, 1, 10

Parallel processing technology

Not supported

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Number of SATA III connectors

4

S/PDIF output connector

Yes

Front panel audio connector

Yes

Front panel connector

Yes

ATX Connector (24-PIN)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

4

EPS Power Connector (8-Pin)

Yes

Connector with 12V power

Yes

RGB LED connector

Yes

Number of USB 2.0 ports

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

Quantity of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

5

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

1

Ethernet LAN ports (RJ-45)

1

Quantity of VGA (D-Sub) ports

0

Quantity of HDMI ports

0

Quantity of DVI-D ports

0

Number of USB4 Gen 2x2 ports

2

PS/2 Ports Quantity

1

Headphone outputs

1

Microphone input jack

Yes

Wi-Fi

Yes

Ethernet LAN connection

Yes

Ethernet Interface Type

2.5 Gigabit Ethernet

Standard Wi-Fi

Wi-Fi 6E (802.11ax)

Wi-Fi Standard

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)

Bluetooth

Yes

Bluetooth version

5.3

Component for

PC

Motherboard Form Factor

micro ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD X670

Audio system

7.1 channels

Audio chip

Realtek ALC4080

Power supply type

ATX

Supported Windows operating system

Windows 10 x64, Windows 11 x64

x1 PCI Express slot

1

PCI Express x16 slot (Gen 5.x)

1

Number of M.2 slots (M)

3

BIOS Type

UEFI AMI

BIOS Memory Size

256 Mbit

CMOS reset button

Yes

Packaging width

367 mm

Packaging depth

291 mm

Packaging height

74 mm

Packaging weight

3.08 kg

Length

244 mm

Depth

244 mm

Cables included

SATA

User Guide

Yes

Drivers included

Yes

Special features

ROG Exclusive Software - GameFirst VI - ROG CPU-Z - ROG True Voltician - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound - BullGuard Internet Security (1-year full version) ASUS Exclusive Software Armory Crate - AIDA64 Extreme (1 year full version) - Aura Creator - Aura Sync - Fan Xpert 4 with AI Cooling II - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TPU - DIGI+ Power Control - Turbo app - PC Cleaner MyAsus WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Package Contents

Cables 1 x RGB extension cable 2 x SATA 6Gb/s cables ROG GEN-Z.2 with Heatsink 1 x ROG GEN-Z.2 with heatsink 1 x M.2 pad for ROG GEN-Z.2 2 x M.2 screw package for ROG GEN-Z.2 ROG True Voltician 1 x ROG True Voltician 4 x cables for ROG True Voltician Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Q-connector 1 x M.2 Q-Latch package for M.2 backplate 1 x ROG Graphics card holder 1 x ROG key chain 1 x ROG stickers 1 x ROG thank you card 1 x Rubber Package for M.2 backplate Installation Media 1 x USB drive with utilities and drivers Documentation 1 x User guide
