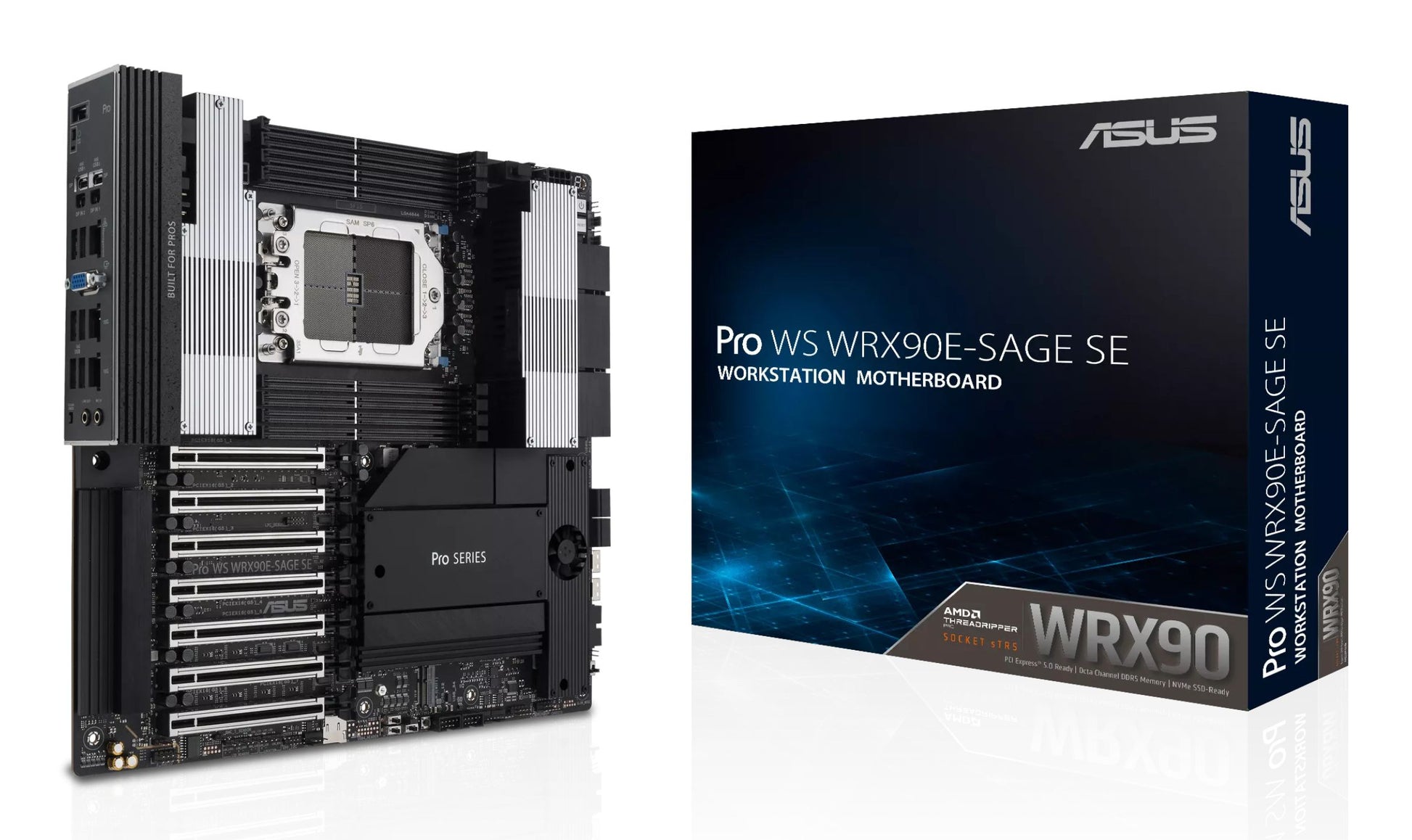

ASUS PRO WS WRX90E-SAGE SE AMD WRX90 Socket sTR5 EEB

ASUS PRO WS WRX90E-SAGE SE. Processor manufacturer: AMD, Processor socket: Socket sTR5, Compatible processors: AMD Ryzen Threadripper PRO 7000 WX-Series. Supported memory types: DDR5-SDRAM, Memory slots type: DIMM, Memory channels: Octa-channel. Supported storage drive interfaces: M.2, SATA III, SlimSAS, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. USB connector: USB Type-A, USB Type-C. Ethernet interface type: 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet

Processor manufacturer

AMD

Processor socket

Socket sTR5

Compatible Processors

AMD Ryzen Threadripper PRO 7000 WX-Series

Supported memory types

DDR5 SDRAM

Number of memory slots

8

memory slot type

DIMM

Memory channels

Octa-channel

ECC compatibility

ETC.

Supported storage drive interfaces

M.2, SATA III, SlimSAS

Supported storage drive types

HDD & SSD

Number of hard drives supported

4

number of supported storage devices

10

RAID support

Yes

RAID Levels

0, 1, 5, 10

Integrated graphics card

No

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

USB 3.2 Gen 2x2 connectors

1

Number of SATA II connectors

0

Number of SATA connectors

0

Front panel audio connector

Yes

ATX Connector (24-PIN)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

5

Frame intrusion connector

Yes

EPS Power Connector (8-Pin)

Yes

Number of COM connectors

1

TPM connector

Yes

Number of USB 2.0 ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

6

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

0

Ethernet LAN ports (RJ-45)

2

Quantity of VGA (D-Sub) ports

1

Quantity of HDMI ports

0

Quantity of DVI-D ports

0

Number of USB4 Gen 3×2 ports

2

USB connector

USB Type-A, USB Type-C

Wi-Fi

No

Ethernet LAN connection

Yes

Ethernet Interface Type

10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet

Component for

Workstation

Motherboard Form Factor

EEB

Motherboard chipset family

AMD

Motherboard chipset

AMD WRX90

Audio chip

Realtek ALC1220P

Product color

Aluminum, Black

Supported Windows operating system

Windows 10 x64, Windows 11

PCI Express x16 slot (Gen 5.x)

7

Number of M.2 slots (M)

4

BIOS Type

UEFI AMI

BIOS Memory Size

256 Mbit

CMOS reset button

Yes

Packaging width

377 mm

Packaging depth

362 mm

Packaging height

79 mm

Packaging weight

3.62 kg

Length

305 mm

Depth

330 mm

Height

50 mm

quantity of mSATA ports

0

Quantity of Mini DisplayPort

2

Weight

3.33 kg
