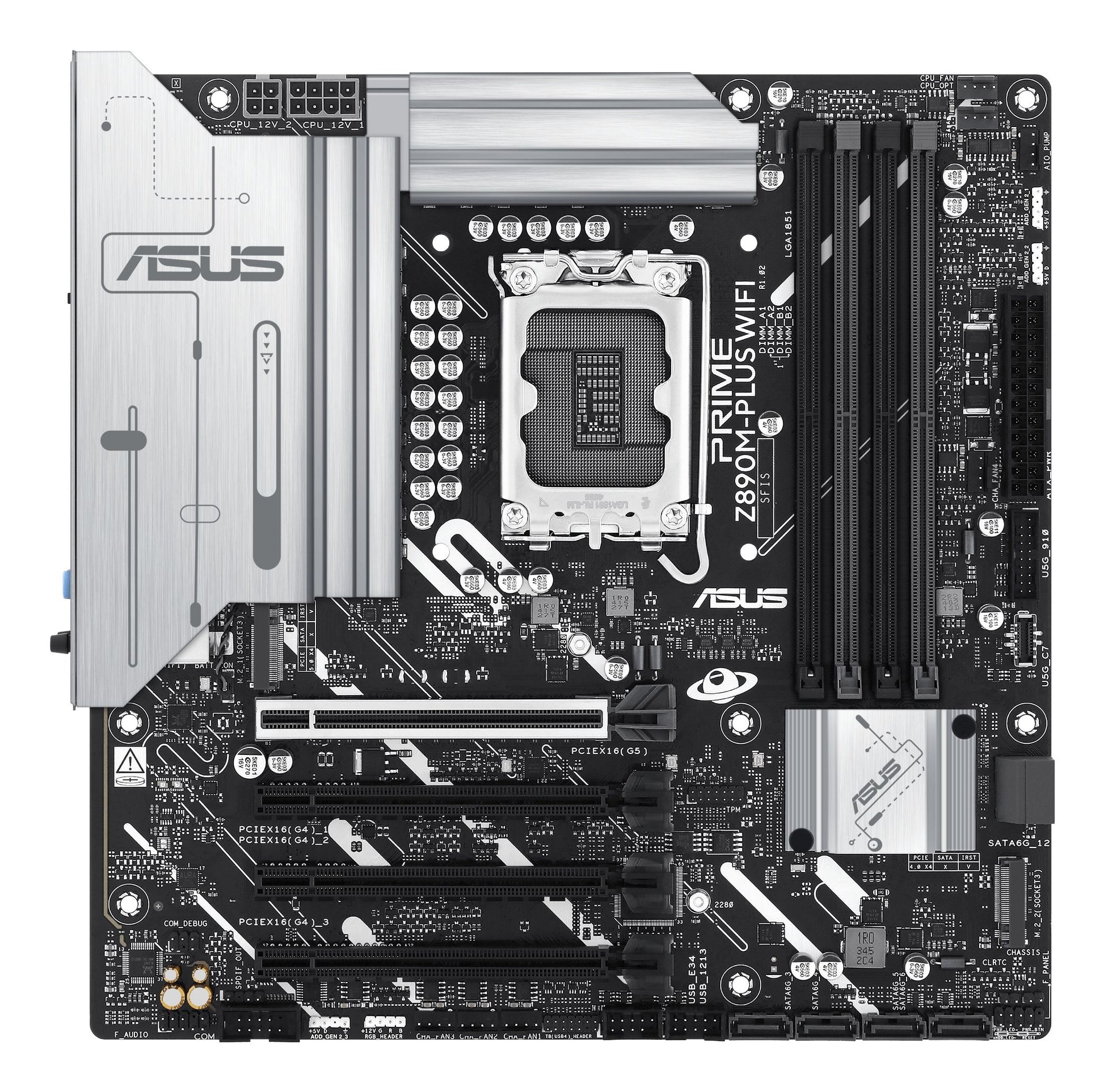

ASUS PRIME Z890M-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) micro ATX

ASUS PRIME Z890M-PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processors: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum supported RAM: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Wi-Fi standard: Wi-Fi 7 (802.11b/g/n), Wi-Fi standard: Wi-Fi 7 (802.11b/g/n). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Processor manufacturer

Intel

Processor socket

LGA 1851 (Socket V1)

Compatible Processors

Intel Core Ultra (Series 2)

Socket Supported Processors

LGA 1851

Supported memory types

DDR5-SDRAM

Number of memory slots

4

Maximum RAM supported

192 GB

memory slot type

DIMM

Memory channels

Dual channel

ECC compatibility

Non-ECC

Without buffer

Yes

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

Number of hard drives supported

6

number of supported storage devices

9

RAID support

Yes

RAID Levels

0, 1, 5, 10

Parallel processing technology

Not supported

Integrated graphics card

No

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

6

Number of SATA II connectors

0

Number of SATA connectors

0

S/PDIF output connector

Yes

Front panel audio connector

Yes

ATX Connector (24-PIN)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

4

Frame intrusion connector

Yes

Number of COM connectors

1

TPM connector

Yes

Thunderbolt ports

1

Connector with 12V power

Yes

Number of USB 2.0 ports

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

0

Ethernet LAN ports (RJ-45)

1

Quantity of VGA (D-Sub) ports

0

Quantity of HDMI ports

1

Quantity of DVI-D ports

0

USB 3.2 Gen 2x2 Type-C ports quantity

1

DisplayPort Quantity

1

Microphone input jack

Yes

WiFi-AP antenna plug

1

Wi-Fi

Yes

Ethernet LAN connection

Yes

Ethernet Interface Type

2.5 Gigabit Ethernet

Standard Wi-Fi

Wi-Fi 7 (802.11b and b)

Wi-Fi Standard

Wi-Fi 7 (802.11b and b)

Bluetooth

Yes

Bluetooth version

5.4

Component for

PC

Motherboard Form Factor

micro ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel Z890

Audio system

7.1 channels

Product color

Aluminum, Black

Supported Windows operating system

Windows 11

PCI Express x16 slot (Gen 4.x)

3

PCI Express x16 slot (Gen 5.x)

1

Number of M.2 slots (M)

3

BIOS Type

UEFI AMI

BIOS Memory Size

256 Mbit

Packaging width

275 mm

Packaging depth

275 mm

Packaging height

67.5 mm

Packaging weight

1.64 kg

Length

244 mm

Depth

244 mm

Cables included

SATA

Screws included

Yes

quantity of mSATA ports

0
