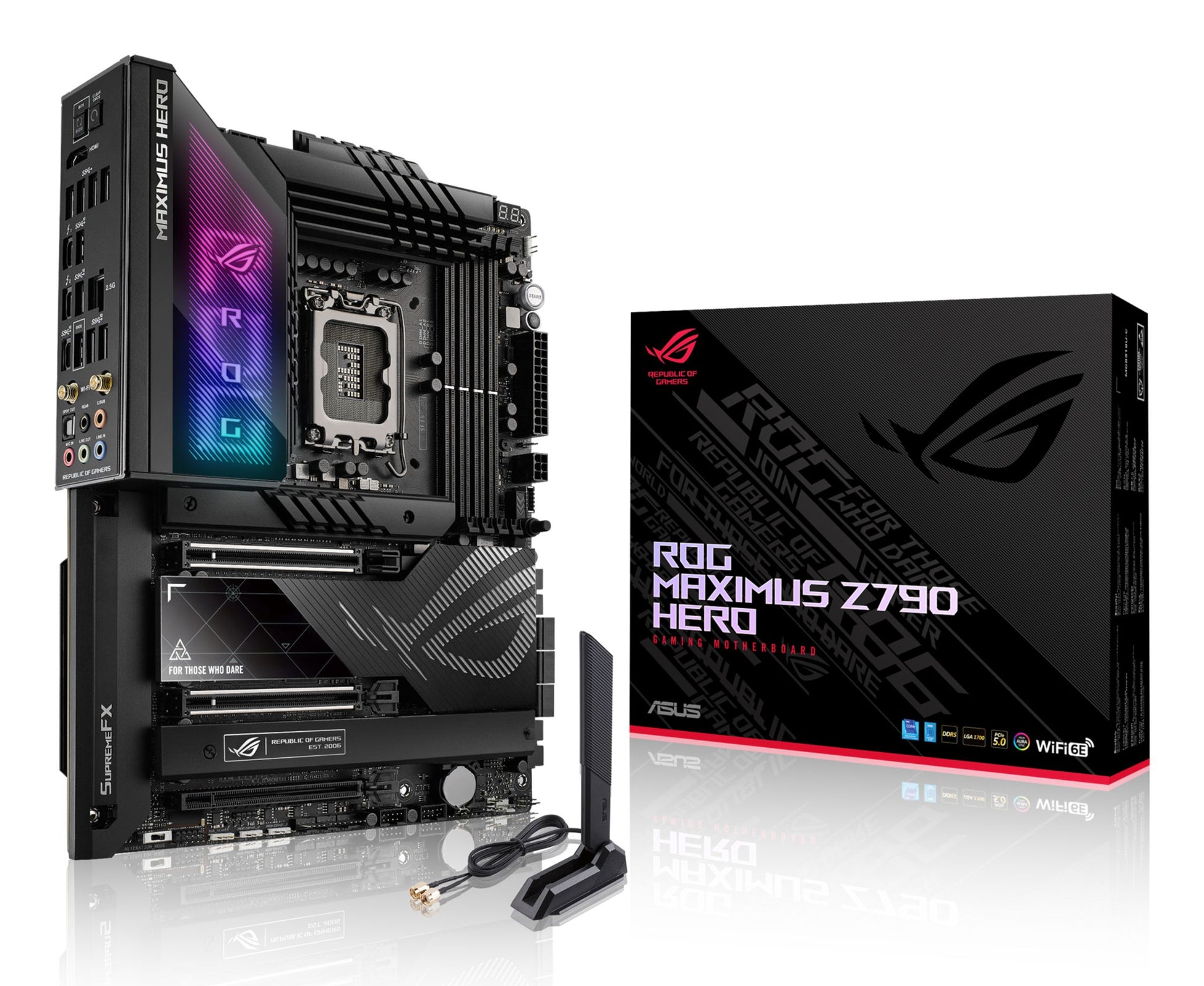

ASUS ROG MAXIMUS Z790 HERO Intel Z790 LGA 1700 ATX

ASUS ROG MAXIMUS Z790 HERO. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processors: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum supported RAM: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

Processor manufacturer

Intel

Processor socket

LGA 1700

Compatible Processors

Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold

Socket Supported Processors

LGA 1700

Supported memory types

DDR5 SDRAM

Number of memory slots

4

Maximum RAM supported

192 GB

memory slot type

DIMM

Memory channels

Dual channel

ECC compatibility

Non-ECC

Supported memory speeds

4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800 MHz

Supported memory clock speed (max)

7800 MHz

Without buffer

Yes

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

RAID support

Yes

RAID Levels

0, 1, 5, 10

Parallel processing technology

Not supported

Integrated graphics card

No

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

6

USB 3.2 Gen 2x2 connectors

1

Number of SATA II connectors

0

Number of SATA connectors

0

Front panel audio connector

Yes

ATX Connector (24-PIN)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

4

EPS Power Connector (8-Pin)

Yes

Connector with 12V power

Yes

RGB LED connector

Yes

Number of USB 2.0 ports

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

5

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

1

Ethernet LAN ports (RJ-45)

1

Quantity of VGA (D-Sub) ports

0

Quantity of HDMI ports

1

Quantity of DVI-D ports

0

USB 3.2 Gen 2x2 Type-C ports quantity

0

Number of USB4 Gen 2x2 ports

0

Number of USB4 Gen 3×2 ports

0

PS/2 Ports Quantity

0

HDMI version

2.1

Quantity of DVI-I ports

0

DisplayPort Quantity

0

Headphone outputs

1

Line input

Yes

Microphone input jack

Yes

S/PDIF output port

Yes

Thunderbolt Ports Quantity

2

WiFi-AP antenna plug

2

Wi-Fi

Yes

Ethernet LAN connection

Yes

Ethernet Interface Type

2.5 Gigabit Ethernet

Standard Wi-Fi

Wi-Fi 6E (802.11ax)

Wi-Fi Standard

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)

Bluetooth

Yes

Bluetooth version

5.3

Component for

PC

Motherboard Form Factor

ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel Z790

Audio system

7.1 channels

Audio chip

Realtek ALC4082

Product color

Black

Power supply type

ATX

Supported Windows operating system

Windows 10, Windows 11

x1 PCI Express slot

0

PCI Express x1 slot (Gen 2.x)

0

PCI Express x1 slot (Gen 3.x)

0

PCI Express x1 slot (Gen 4.x)

0

PCI Express x4 slots

0

PCI Express x4 slot (Gen 1.x)

0

PCI Express x4 slot (Gen 2.x)

0

PCI Express x4 slot (Gen 4.x)

0

PCI Express x8 slots

0

PCI Express x8 slot (Gen 1.x)

0

PCI Express x16 slots

0

PCI Express x16 slot (Gen 2.x)

0

PCI Express x16 slot (Gen 3.x)

0

PCI Express x16 slot (Gen 4.x)

1

PCI Express x16 slot (Gen 5.x)

2

PCI Express x16 (Gen 3.x) @ dual x8/x8 mode slot

0

PCI slots

0

PCI-X slots

0

Mini PCI Express slots

0

Mini PCI Express Slot (Gen 1.x)

0

Mini PCI Express Slot (Gen 2.x)

0

Mini PCIe card slot (total length)

0

Mini PCIe card slot (half length)

0

Number of M.2 slots (M)

5

BIOS Type

UEFI AMI

BIOS Memory Size

256 Mbit

CMOS reset button

Yes

Packaging width

370 mm

Packaging depth

312 mm

Packaging height

108 mm

Packaging weight

4.56 kg

Length

305 mm

Depth

244 mm

Cables included

SATA

Drivers included

Yes

quantity of mSATA ports

0

Back-to-BIOS button

Yes
