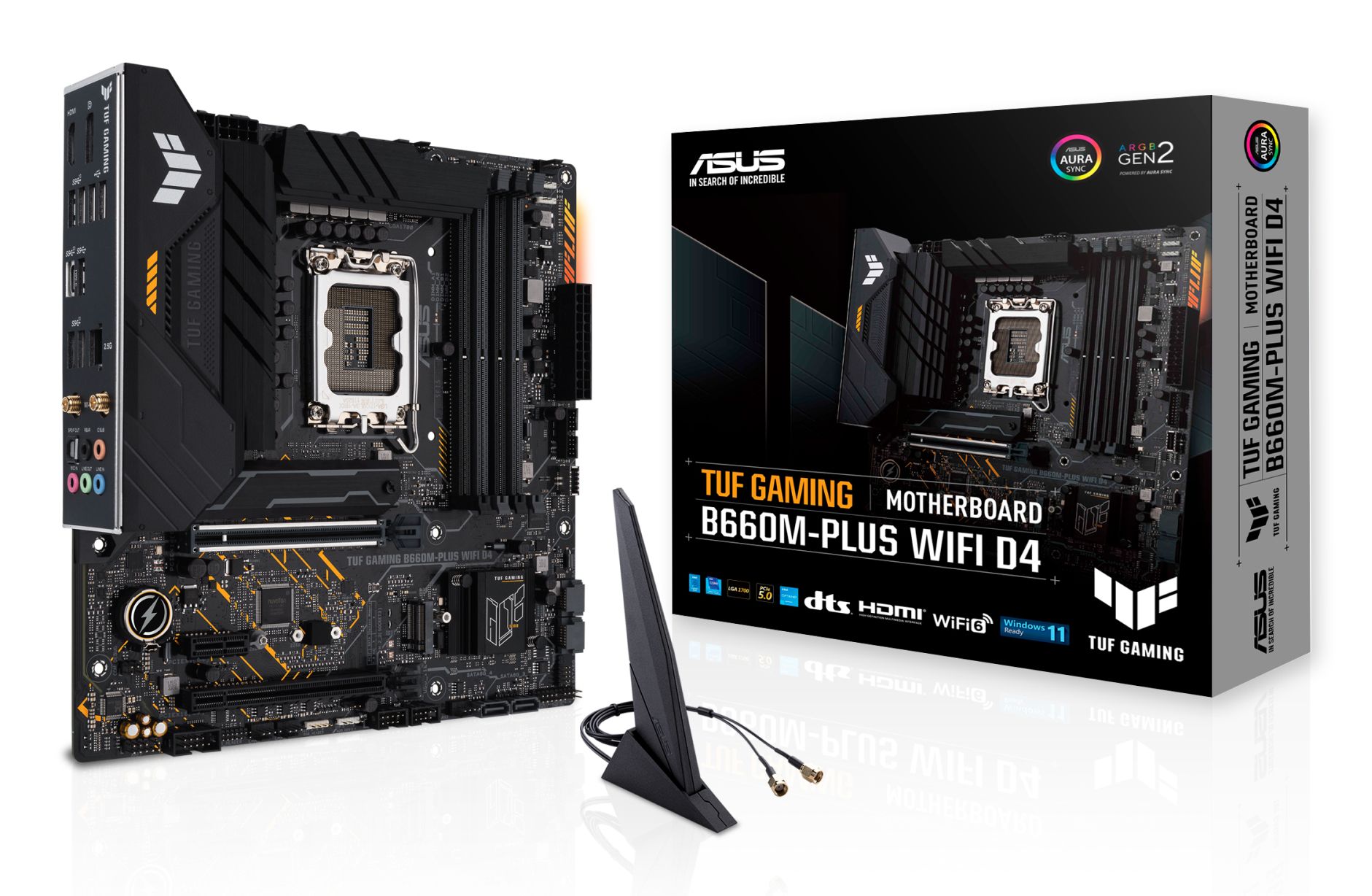

ASUS TUF GAMING B660M- PLUS WIFI D4 Intel B660 LGA 1700 micro ATX

ASUS TUF GAMING B660M- PLUS WIFI D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processors: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum supported RAM: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. USB connector: USB Type-A, USB Type-C. Ethernet interface type: 2.5 Gigabit Ethernet, Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standard: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Processor manufacturer

Intel

Processor socket

LGA 1700

Compatible Processors

Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold

Socket Supported Processors

LGA 1700

Supported memory types

DDR4-SDRAM

Number of memory slots

4

Maximum RAM supported

128 GB

memory slot type

DIMM

Memory channels

Dual channel

ECC compatibility

Non-ECC

Supported memory speeds

2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4266,4400,4600,4800,5000,5066,5333 MHz

Without buffer

Yes

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

Supported storage drive types

HDD & SSD

Number of hard drives supported

4

number of supported storage devices

6

RAID support

Yes

RAID Levels

0, 1, 5, 10

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

Front panel connector

Yes

ATX Connector (24-PIN)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

3

Frame intrusion connector

Yes

EPS Power Connector (8-Pin)

Yes

Serial Port Headers

1

Thunderbolt ports

1

Connector with 12V power

Yes

RGB LED connector

Yes

Number of USB 2.0 ports

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

1

Ethernet LAN ports (RJ-45)

1

Quantity of VGA (D-Sub) ports

0

Quantity of HDMI ports

1

Quantity of DVI-D ports

0

HDMI version

2.1

DisplayPort Quantity

1

DisplayPort version

1.4

Headphone outputs

5

Optical digital audio output

1

WiFi-AP antenna plug

2

USB connector

USB Type-A, USB Type-C

Wi-Fi

Yes

Ethernet LAN connection

Yes

Ethernet Interface Type

2.5 Gigabit Ethernet

Standard Wi-Fi

Wi-Fi 6 (802.11ax)

Wi-Fi Standard

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Bluetooth

Yes

Bluetooth version

5.2

Component for

PC

Motherboard Form Factor

micro ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel B660

Audio system

7.1 channels

Power supply type

ATX

x1 PCI Express slot

1

PCI Express x16 slot (Gen 3.x)

1

PCI Express x16 slot (Gen 5.x)

1

Number of M.2 slots (M)

2

BIOS Type

UEFI AMI

BIOS Memory Size

128 Mbit

CMOS clear jumper

Yes

Harmonized System Code (HS)

84733020

Length

244 mm

Depth

244 mm

Height

68 mm

Cables included

SATA

Weight

1.35 kg
