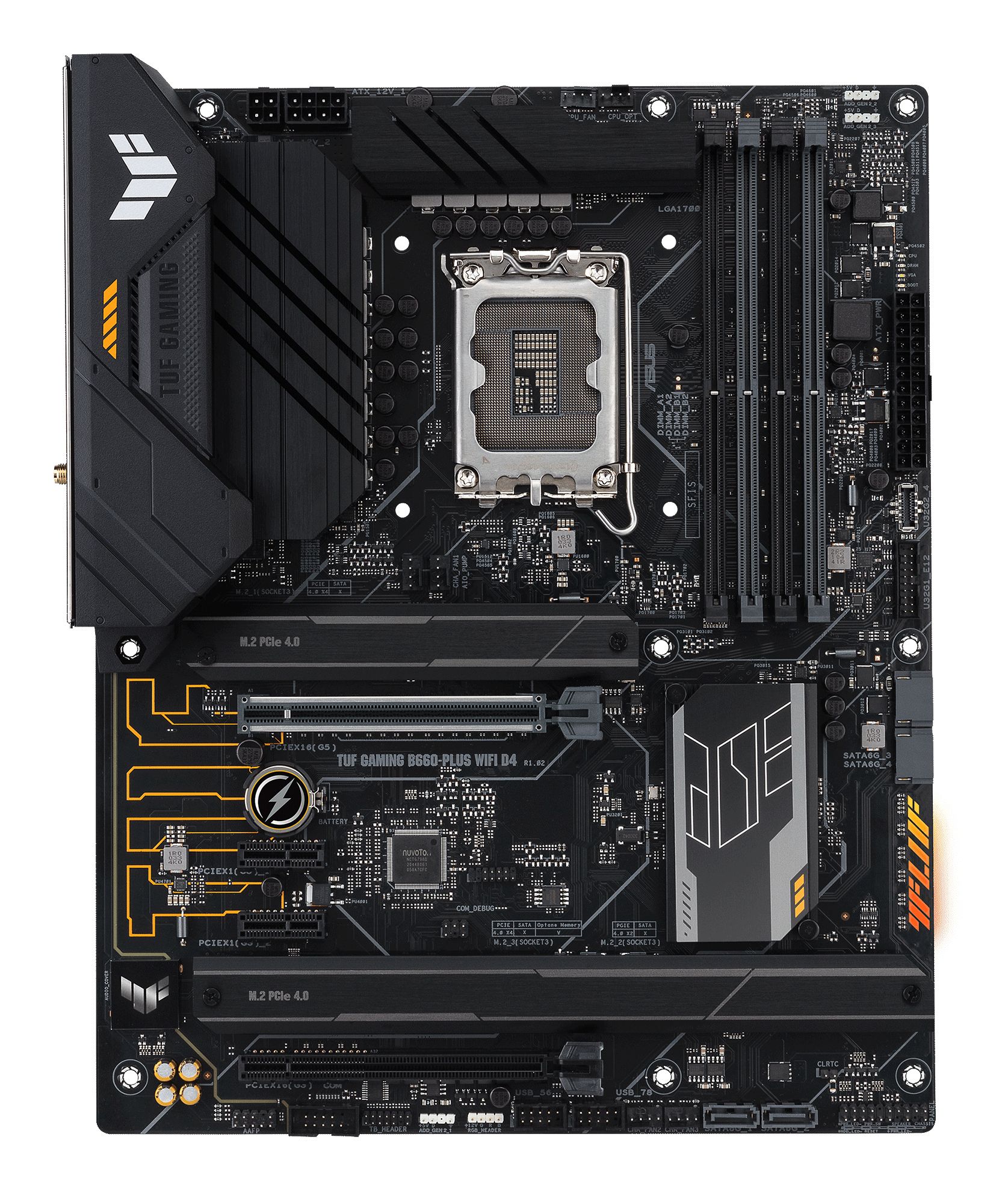

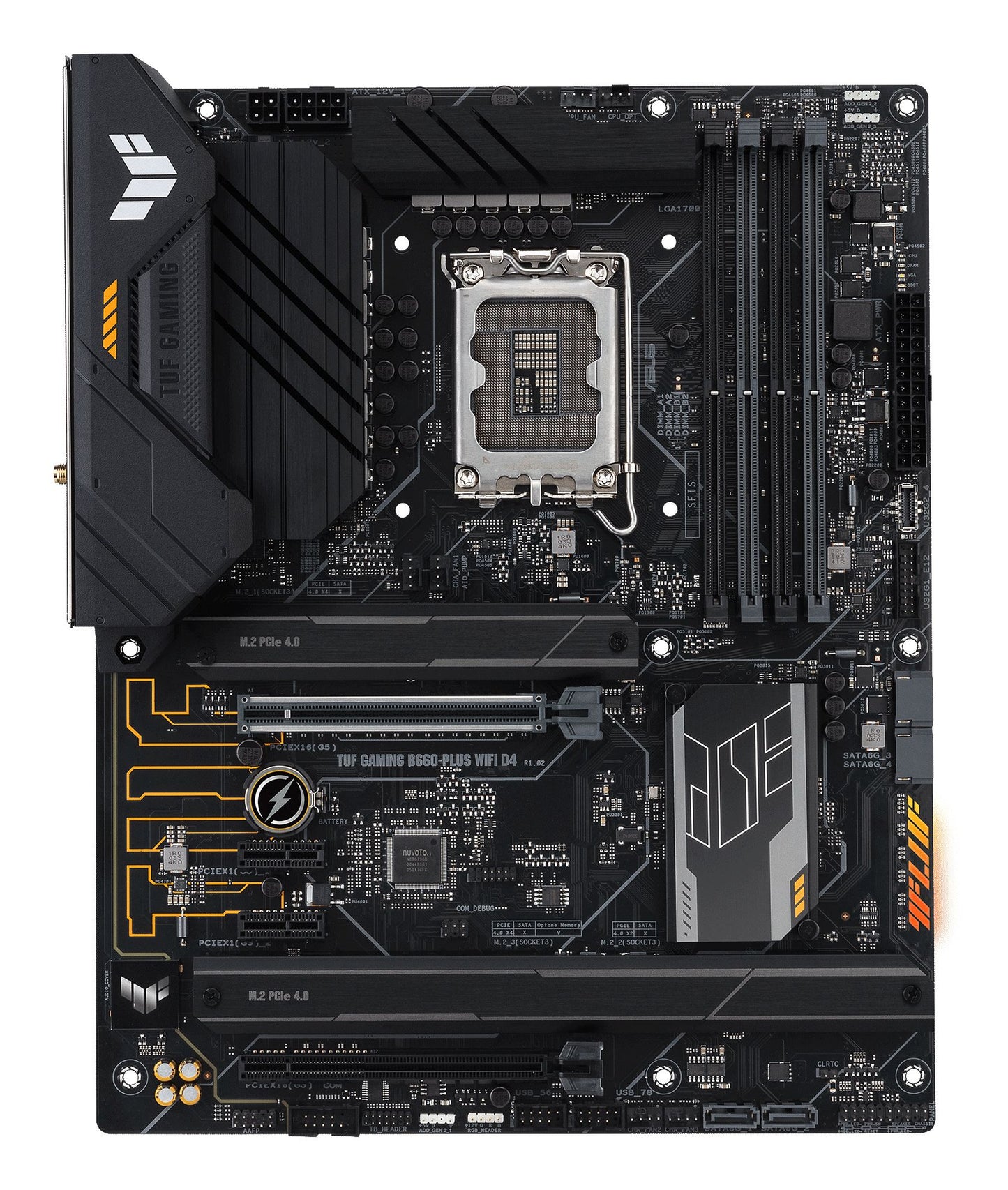

ASUS TUF GAMING B660-PLUS WIFI D4 Intel B660 LGA 1700 ATX

ASUS TUF GAMING B660-PLUS WIFI D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processors: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum supported RAM: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. USB connector: USB Type-A, USB Type-C. Ethernet interface type: 2.5 Gigabit Ethernet, Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standard: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Processor manufacturer

Intel

Processor socket

LGA 1700

Compatible Processors

Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold

Maximum number of SMP processors

1

Supported memory types

DDR4-SDRAM

Number of memory slots

4

Maximum RAM supported

128 GB

memory slot type

DIMM

Memory channels

Dual channel

ECC compatibility

Non-ECC

Supported memory speeds

2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4400,4600,4800,5000,5066,5333 MHz

Without buffer

Yes

Supported storage drive interfaces

M.2, SATA

Supported storage drive types

HDD & SSD

RAID Levels

0, 1, 5, 10

Number of displays supported

2

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Number of SATA III connectors

4

S/PDIF output connector

Yes

Front panel audio connector

Yes

ATX Connector (24-PIN)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

3

Peripheral Connectors (Molex) (4-pin)

1

EPS Power Connector (8-Pin)

Yes

Number of COM connectors

1

Thunderbolt ports

1

Connector with 12V power

Yes

RGB LED connector

Yes

Number of USB 2.0 ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

0

Ethernet LAN ports (RJ-45)

1

Quantity of VGA (D-Sub) ports

0

Quantity of HDMI ports

1

Quantity of DVI-D ports

0

USB 3.2 Gen 2x2 Type-C ports quantity

1

HDMI version

2.1

DisplayPort Quantity

1

DisplayPort version

1.4

Headphone outputs

1

Microphone input jack

Yes

S/PDIF output port

Yes

USB connector

USB Type-A, USB Type-C

Wi-Fi

Yes

Ethernet LAN connection

Yes

Ethernet Interface Type

2.5 Gigabit Ethernet

Standard Wi-Fi

Wi-Fi 6 (802.11ax)

Wi-Fi Standard

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Bluetooth

Yes

Bluetooth version

5.2

Component for

PC

Motherboard Form Factor

ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel B660

Audio system

7.1 channels

Supported Windows operating system

Windows 10 x64, Windows 11 x64

PCI Express x1 slot (Gen 3.x)

2

PCI Express x16 slot (Gen 3.x)

1

PCI Express x16 slot (Gen 5.x)

1

Number of M.2 slots (M)

3

BIOS Type

UEFI AMI

BIOS Memory Size

128 Mbit

Harmonized System Code (HS)

84733020

Length

305 mm

Depth

244 mm

Height

68 mm

Cables included

SATA

Drivers included

Yes

Weight

1.35 kg
