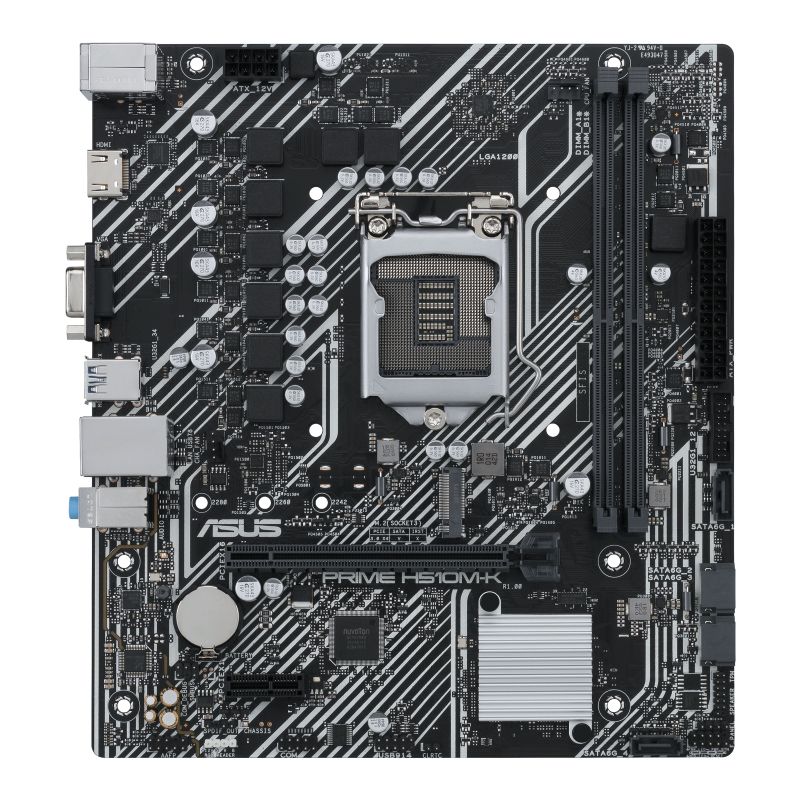

ASUS PRIME H510M-K Intel H510 LGA 1200 (Socket H5) micro ATX

ASUS Prime Series motherboards are expertly engineered to unleash the full potential of 11th and 10th Generation Intel® Processor Ready CPUs. Boasting a reliable power design, comprehensive cooling solutions and intelligent tuning options, Prime H510M-K provides everyday users and DIY PC builders a range of performance tuning options through intuitive software and firmware features.

Tuning as you wish
A comprehensive control system forms the foundation of the ASUS Prime series. The Prime H510M-A motherboard contains flexible tools to optimize every aspect of your system, enabling performance adjustments to perfectly match the way you work and maximize productivity.

New UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and optimize your rig. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced optimization for professional tweakers
An intuitive Advanced Mode offered via the UEFI lets you take complete control. A built-in search function makes it easy to find options, and various advanced features allow you to intelligently make nuanced adjustments so you can dial in performance just the way you want.

Search function
Quickly and easily find the option or setting you're looking for.

ASUS User Profile
Configure configuration settings between different BIOS versions or share them with friends.

Simple and safe installation
EZ Mode displays vital settings and statistics, and also offers wizards, drag-and-drop functionality, and one-click application of important settings – all to help you get your system up and running in no time.

Intuitive graphical fan control
Optimize individual fans by simply dragging a curve with the mouse.

EZ XMP
Improve DRAM performance with one click.

Core cooling
The Prime H510 series is designed with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Cooling by design
The Prime H510 series features comprehensive cooling controls that can be configured via Fan Xpert software or the UEFI BIOS.

Multiple temperature sources
Each header can dynamically reference three thermal sensors. Using Fan Xpert 4, you can map the temperature of supported ASUS graphics cards to optimize cooling for GPU and CPU tasks.

4-pin PWM/DC fan connector
Each onboard connector supports PWM or DC mode.

Building on a solid foundation
The Prime H510 Series is built to handle the additional cores and increased bandwidth of 11th Gen Intel® Core™ CPUs. An H510 motherboard provides all the foundations to boost your daily productivity, so your system will be ready for action with stable power, intuitive cooling, and flexible transfer options.

M.2 (up to 32 Gbps)
The M.2 slot supports data transfer speeds of up to 32 Gbps via x4 PCI Express® 3.0, enabling faster boot and application load times with the operating system or application drives.

PCIe 4.0
ASUS H510 motherboards are designed specifically for 11th Generation Intel® Core™ processors and offer PCIe® 4.0 connectivity for the latest GPUs. The high bandwidth and lightning-fast transmission speeds enable feature-rich builds that can effortlessly handle heavy loads.

USB 3.2 Gen 1 Type-A
Numerous USB ports support high-end rigs loaded with peripherals, including a rear panel with USB Type-A connectors with fast USB 3.2 Gen 1 connectivity for compatible cases.

Intel® 1 Gb Ethernet
Intel® Intel Ethernet Connection I219-V reduces CPU overhead and delivers exceptionally high TCP and UDP throughput for faster, smoother data transfer.

Little things make a big difference
The Prime H510 Series adds the nuances that enhance every experience, from exclusive codecs that deliver pristine audio quality to intuitive RGB lighting controls that let you customize your system for a uniquely personal look.

Exceptional audio
Integrated built-in features deliver high-quality audio
Intelligent design and advanced hardware create audio quality unlike anything you've ever experienced.

Audio shielding
Separates analog/digital signals, significantly reducing multi-lateral interference.

Separate layers for left and right tracks
Ensures minimal crosstalk between audio tracks.

Armory Crate
Armoury Crate is a new software utility designed to provide centralized control of supported ROG gaming products. The software also provides control of ASUS product settings, including keyboard and mouse preferences. Armoury Crate also features dedicated product registration and highlights to help you stay connected with the ASUS community.

SafeSlot Core
SafeSlot Core is ASUS' exclusive PCIe slot. Featuring a fortified design anchored to the motherboard by a special hook, SafeSlot Core offers 1.6X greater retention and 1.3X greater torsional rigidity than standard expansion slots.

Overvoltage protection
Specially designed circuit to protect the power supply
An exclusive design with built-in voltage regulators to protect your motherboard from damage caused by unexpected voltages.

DRAM overcurrent protection
Prevention of short circuit damage
Integrated resettable fuses prevent damage from overcurrent and short circuits. This extends beyond the I/O ports to the DRAM to safeguard the lifespan of your system and the devices connected to it.

Stainless steel for I/O
Corrosion resistance for longer life
Corrosion-resistant stainless steel rear I/O panels made from chromium oxide alloy have a lifespan three times longer than ordinary panels.

LANGuard
Pumping capacity, 2.5 times higher surge tolerance
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors to ensure a more reliable connection and better throughput.

ASUS PRIME H510M-K. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processors: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum supported RAM: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III, Supported storage drive types: HDD & SSD. Maximum resolution: 3840 x 2160 pixels. HDMI version: 1.4/2.0, USB connector: USB Type-A

Processor manufacturer

Intel

Processor socket

LGA 1200 (Socket H5)

Compatible Processors

Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® G

Socket Supported Processors

LGA 1200 (Socket H5)

Supported memory types

DDR4-SDRAM

Number of memory slots

2

Maximum RAM supported

64 GB

memory slot type

DIMM

Memory channels

Dual channel

ECC compatibility

Non-ECC

Supported memory speeds

2133,2400,2666,2800,2933,3200 MHz

Without buffer

Yes

Supported storage drive interfaces

M.2, PCI Express 3.0, SATA III

Supported storage drive types

HDD & SSD

number of supported storage devices

5

Parallel processing technology

Not supported

Maximum resolution

3840 x 2160 pixels

USB 2.0 connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Number of Parallel ATA connectors

0

S/PDIF output connector

Yes

Front panel audio connector

Yes

ATX Connector (24-PIN)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

1

EPS Power Connector (8-Pin)

Yes

Number of COM connectors

1

TPM connector

Yes

Connector with 12V power

Yes

RGB LED connector

Yes

Number of USB 2.0 ports

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

0

Ethernet LAN ports (RJ-45)

1

Quantity of VGA (D-Sub) ports

1

Quantity of HDMI ports

1

Quantity of DVI-D ports

0

PS/2 Ports Quantity

1

HDMI version

1.4/2.0

Headphone outputs

3

Microphone input jack

Yes

USB connector

USB Type A

Wi-Fi

No

Ethernet LAN connection

Yes

Ethernet Interface Type

Gigabit Ethernet

LAN Controller

Intel® I219-V

Wake-on-LAN ready

Yes

Component for

PC

Motherboard Form Factor

micro ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel H510

Audio system

7.1 channels

Audio chip

Realtek ALC887 / Realtek ALC897

Supported Windows operating system

Windows 10 x64

PCI Express x1 slot (Gen 3.x)

1

PCI Express x16 slot (Gen 4.x)

1

Number of M.2 slots (M)

1

BIOS Type

UEFI AMI

BIOS Memory Size

128 Mbit

CMOS clear jumper

Yes

Harmonized System Code (HS)

84733020

Length

226 mm

Depth

203 mm

Height

51 mm

Cables included

SATA

Drivers included

Yes

Weight

803 g
